Home > Computer Products > Computer > Gaming Computer > All in One PC Multi Touch Screen Panel

All in One PC Multi Touch Screen Panel

All in One PC Multi Touch Screen Panel photo-1

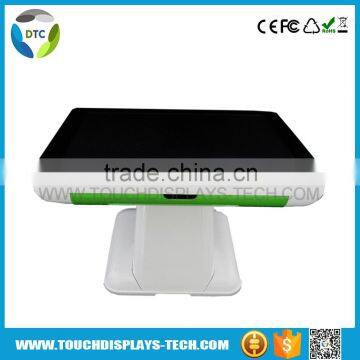

All in One PC Multi Touch Screen Panel photo-2
All in One PC Multi Touch Screen Panel photo-3
US$ 100 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
All-In-One
Screen Size:
Other, 15"
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type All-In-One
Screen Size Other, 15"
Processor Brand Intel
Memory Capacity 2GB
Hard Drive Capacity 320GB
Graphics Card Type Integrated Card
Display Type LCD
Widescreen No
Optical Drive Type DVD-ROM
Processor Main Frequency 1.8-2.7G
Brand Name Touchdisplays
Model Number 1515E
Place of Origin Sichuan, China

1515E 15" LCD Desktop Flat _Touch PC Monitor

High quality panel and choice of touch technology combined in a compact form factor

All in one PC multi touch screen panel

Features

1.Long lasting product cycleenclosure

2.800:1 contrast ratio, and 400-nit brightness (LCD panel)

3.High quality panel with 160° x 160° viewing angle

4.Future generation panels phased-in without external changes

5.Removable base and VESA mounting option

6.Mounting holes on base bottom for tabletop security

7.Touch_flat screen

8.Front bezel be sealed IP64

9.surport secend display extend

Applications

1.Countertop kiosk information systems

2.Gaming and amusement

3.Point-of-sale(POS)

4.Point-of-service

Accessories

1.Power Cord (US, EU or UK type)

2.Power Brick

3.User Manual (English only)

All in one PC multi touch screen panel



Specifications

Case/Bezel Color

Black/Silvery

Display Size

15.0"

LCD Type

TFT LCD

Aspect ratio

4:3

Useful Screen Area

304 mm x 228 mm

Touch panel

Projected Capacitive with multi-touch

(SAW flat_touch optional)

Touch response time

8ms (typical)

Touch Monitor Dimensions

372x 212 x 318 mm

Optimal (native) Resolution

1024 x 768

LCD panel Pixel pitch

0.297 x 0.297 mm

LCD panel Colors

16.7 million

LCD panel Brightness

400 cd/m2

LCD panel Response Time

30 ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±80° or 160° total

Vertical (up/down)

±80° or 160° total

Contrast Ratio

800:1

output Video signal connector

Mini D-Sub 15-Pin VGA type and HDMI type (optional)

Input interface

Usb 2.0*4 usb 3.0*2(optional)SIM cardPCI-Eearphone

Net interface

1*RJ45,1*wifi and bluetooth,3G Card(optional)



Power Supply Type

External AC to DC power brick

Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 40W max













ECM

(Embed Computer Modul)

ECM1: Intel® processor P7500 (1.8GHz Dual Core);

ECM2: Intel® processor P7550 (2.26GHz Dual Core);

ECM3: Intel® processor i3 2310M(2.1GHz);

ECM4: Intel® processor i5 2410M(2.3GHz/2.9GHz Turbo);

ECM5: Intel® processor i7 2620M (2.7GHz/3.4GHz Turbo);

HardDisk:320G(500G-1TB optional); Memory:2G(DDR3,max8G);

Operation System:Win7win8XpwinCEVista

ECM6: Android A8 1.5G, Flash 4G

ECM7: Android dual core 2G, Flash 4G

Operation System: 4.04,Linux with customized optional

Temperature

Operating: 0°C to 40°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

616 x 206 x456 mm

Weight (approx.)

Actual: 6 kg ;Shipping: 8.5 kg



Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 50,000 hours to half brightness

Agency Approvals

CE/FCC Rohs

Mounting Options

75 mm and 100mm VESA mount

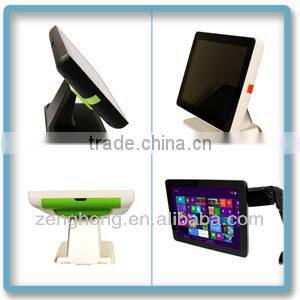

All in one PC multi touch screen panel
