Specifications
android pos terminal1.Long lasting product cycle-enclosure
2.High quality panel
3.capacitive multi-touch
1501E 15" LCD POS all in one touchmonitor
High quality panel and choice of touch technology combined in a compact form factor
android pos terminal
Features
1.Long lasting product cycle-enclosure
2.500:1 contrast ratio, and 250-nit brightness (LCD panel)
3.High quality panel with 150° x 140° viewing angle
4.Future generation panels phased-in without external changes
5.Mounting options including rear-mount and VESA mount
6.Optional front mount and rack mount bezels
7.Multilingual on-screen display (OSD)
8.Fully RoHS compliant

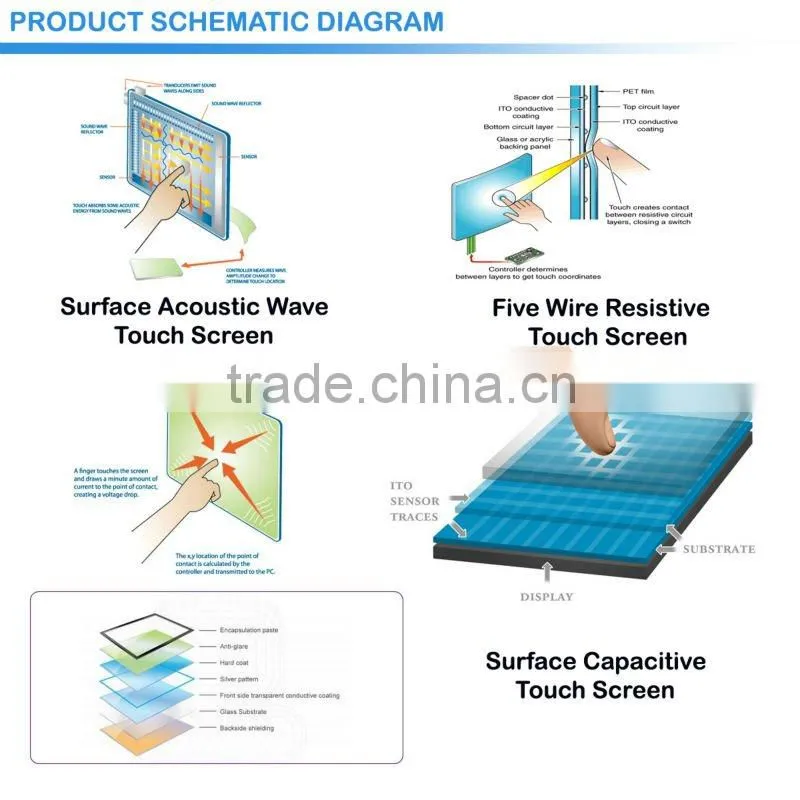

9.Surface Capacitive Technology with serial or USB touch interface
Applications
1.Kiosk information system
2. Gaming and amusement
3.Light industrial shop-floor automation
Accessories
1.Serial or USB cable
2.VGA Video Cable(DVI Cable is optional)
3.Power Cord (US, EU or UK type)
4.Power Brick
5.User Manual (English only)
Specifications
Case/Bezel Color |
Steel/black |
|
Display Siz e |
15.0" |
|
LCD Type |
TFT LCD |
|
ECM |
Android:AML8726-MX Maximum Frequency 1.5GHZ, |
|
Useful Screen Area |
304 mm x 228 mm |
|
Touch panel |
Capacitive |
|
Touch interface |
USB or Serial |
|
Touch response time |
8ms (typical) |
|
Touch Monitor Dimensions |
336 x 264 x 45 mm |
|
Optimal (native) Resolution |
1024 x 768 |
|
LCD panel Pixel pitch |
0.297 x 0.297 mm
|
|
Plug and Play |
VESA DDC 1/2B |
|
LCD panel Colors |
16.2 million |
|
LCD panel Brightness |
250 cd/m2 |
|
LCD panel Response Time |
8 ms |
|
|
Viewing Angle (typical, from center) |
Horizontal (left/right)
|
±75° or 150° total |
Vertical (up/down) |
70°(up), 60°(down) or 140° total |
|
Contrast Ratio |
500:1 |
|
Input Video signal connector |
Mini D-Sub 15-Pin VGA type and DVI type (optional) |
|
Input sync format |
31.5-80.0 kHz 60-75 Hz |
|
Power Supply Type |
External AC to DC power brick |
|
Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5) | ||
AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
|
Power dissipation: 48W max
| ||
On-screen display(OSD) |
Controls(back):Power,Menu,Up,Down,Auto; Settings: contrast, brightness, H/V position; RGB(color temp),clock, phase, recall; Languages: English, German, French ,Spanish, Japanese; |
|
Temperature |
Operating: 0°C to 40°C ;Storage -20°C to 60°C |
|
Humidity (non condensing) |
Operating: 20%-80%; Storage: 10%-90% |
|
Shipping Carton Dimensions |
556 x 456 x206 mm |
|
Weight (approx.) |
Actual: 4 kg ;Shipping: 6.5 kg |
|
Warranty Monitor |
3 years(Except for LCD panel 1 year) |
|
Backlight lamp life: typical 50,000 hours to half brightness | ||
Agency Approvals |
CE/FCC Rohs |
|
Mounting Options |
75 mm or 100 mm VESA mount |
|
