Memory card pack HF battery blister packaging welding machine
Function:
1. Steady frequency:
High Frequency Welding Machine strictly adopts industrial wave band 27.12/40.68 MHz according to the provision of nations "radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment.
2. Spark restrains system:
High Frequency Welding Machine has high sensitive Spark restraint electro-circuit can check out the imbalance current which can bring spark and cut it off, meanwhile alert the operator.
3. Vibrate current setting:
The output of High Frequency Machine can be adjusted by adjuster according to thickness of material and the size of products, which ensure the quality of welding and promote production.
4. Security protection:
High Frequency Welding Machine has security protection system of exceed voltage and electric current.

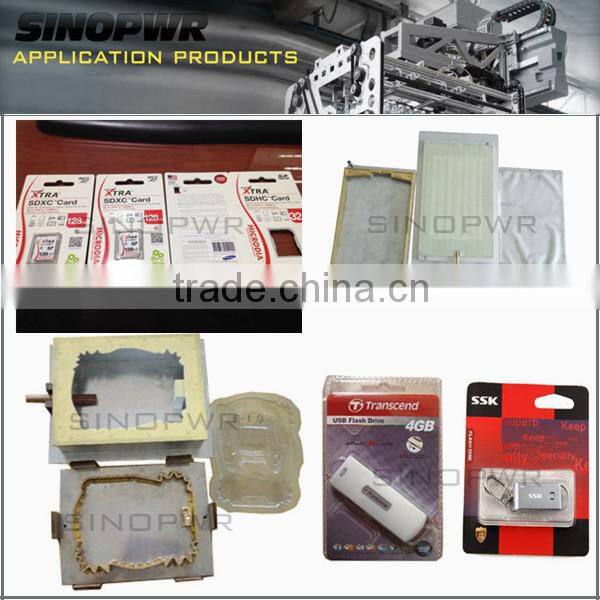

Application range:
1. PVC Soft plastic box making, Toys, Leather /Belt welding.
2. PVC book cover, notebook cover, leather cover.
3. Medical, laboratory, rehabilitation equipment.
4. Clear plastic blister and clam shell packaging (Tooth brush packing).
5. Office accessories and promotional items.
6. Inflatable toys and gadgets.
7. Safety equipment and protective clothing.

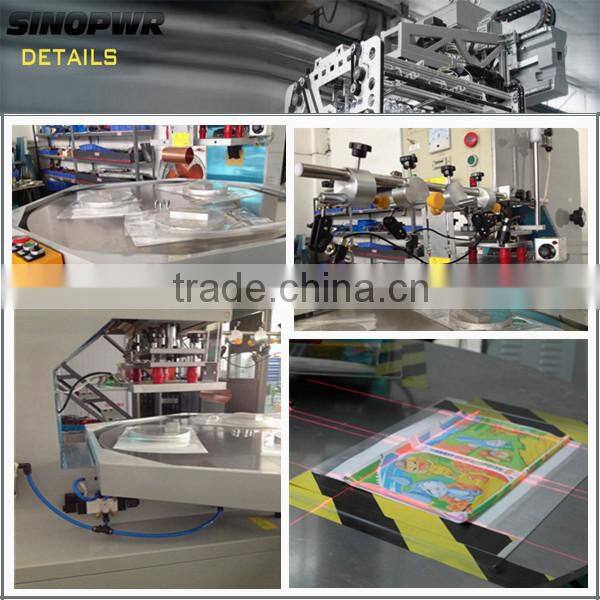

Features:
1.With three turntable table, which the turn plate limited device enable the welding position more precise, workshop space saving.
2. American NL-5557 sparkle protector device, which make the mold & products to minimize the damage degree.
3.Adopt Europe type high frequency coaxial resonators when current overloaded then automatically cut off the pressure to protect the oscillation tubes and rectifier.
4.Custom size work tables and welding platen is available.
Specifications:
| Model | ZG-5000ET | ZG-8000ET | ZG-10000ET | ZG-12000ET | ZG-15000ET |
| Power | 5000W | 8000W | 10000W | 12000W | 15000W |
| Input power | 8KVA | 15KVA | 18KVA | 20KVA | 25KVA |
| Voltage | 3Phase 220v/380V 50/60HZ or customized | ||||
| Frequency | 27.12MHz | ||||
| Rectifier | silicon diode | ||||
| Oscillation tube | 7T85RB | 7T69RB | E3069RB | E3130RB | 8T85RB |
| Max pressure | 350kg | 500kg | 500kg | 800kg | 1000kg |
| Operation mode | pneumatic | ||||
| Max distance of electrodes | 200mm | ||||
| The press stroke | 150mm | ||||
| The size of upper electrode | 200*350mm | 300*500mm | 300*500mm | 400*600mm | 400*600mm |
| The size of lower electrode | 300*500mm | 300*500mm | 300*500mm | 400*600mm | 400*600mm |
| The range of temperature | 30~200 °C adjustable | ||||
| Welding time | 0---10sdjustable | ||||
| Productivity | < 360times/hour | ||||
About us:
We are the leading manufacture that specialize in different kinds of high frequency welding machines and ultrasonic welding machines. With the experience of more than 10 years and CE quality control system guidelines.We help our customer develop special H. F machine for the application.
Pre-sale services:
1. Provide professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit is warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract...
FAQ:
1,How to install the machine?
2,How do I use the machine ?
3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Trouble solving
