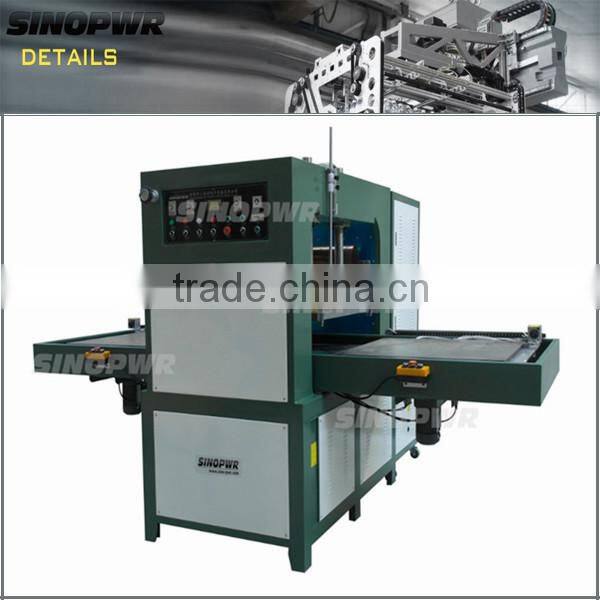

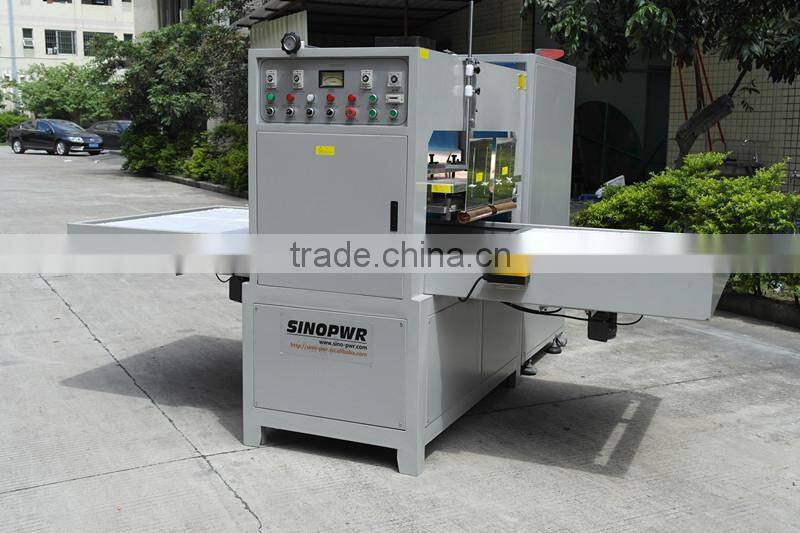

Soundproof cotton 15000w high frequency welding machine
1. Stable frequency
In strict accordance with the requirements of "Committee on Radio Interference" (CISPR). Oscillation Frequency: 27.12/40.68MHZ. With a cycle stabilizer for suppression of leakage of the magnetic flux. Minimal interferes with the outside equipment.
2. Spark restrains
With high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time warning lights will send you the alert.
3. Strong out-put power
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency. Stronger radiation shielding.
4. Oscillation current regulation
Different output power based on product size and thickness is available. You can control the welding and guarantee the homogeneity of the quality
5. Security
With NL 5557 over-current protection devices, can automatically cut off the supply to protect the oscillation tube and the rectifier.

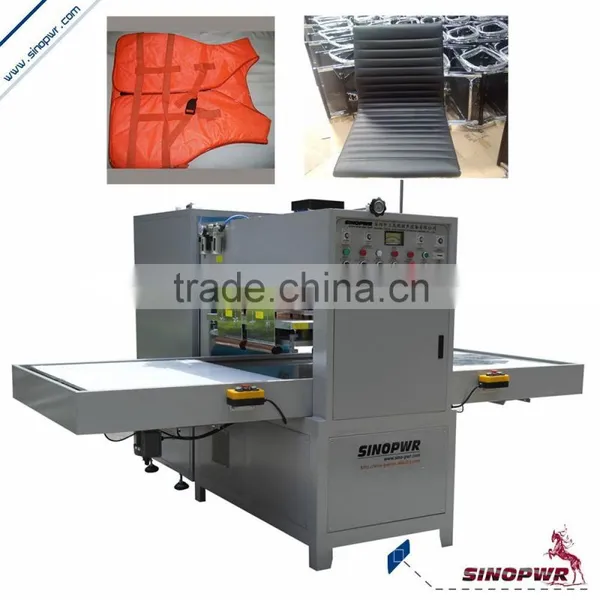

specailized for welding big size products like plastic inflabtable ship,sofa,water pool,cushion and so on.
Specifications:
| Model | ZG-25KWAT | ZG-35KWAT | ZG-50KWAT |
| Power | 25KW | 35KW | 50KW |
| Input power | 35KVA | 50KVA | 70KVA |
| Voltage | 3Phase 220v/380V 50/60HZ or customized | ||
| Frequency | 27.12MHz | ||
| Rectifier | silicon diode | ||
| Oscillation tube | 8T25RB | 8T87RB | 9T64A |
| Max pressure | 1000kg | 1500kg | 2000kg |
| Operation mode | pneumatic | ||
| Max distance of electrodes | 100mm | ||
| The press stroke | 200mm | ||
| The size of upper electrode | 700*900mm | 800*1000mm | 1200*1800mm |
| The size of lower electrode | 700*900mm | 800*1000mm | 1200*1800mm |
| The range of temperature | 30~200 oC adjustable | ||
| Welding time | 0---10sdjustable | ||
| Productivity | < 360times/hour | ||
FAQ:
1,How to install the machine?
2,How do I use the machine ?

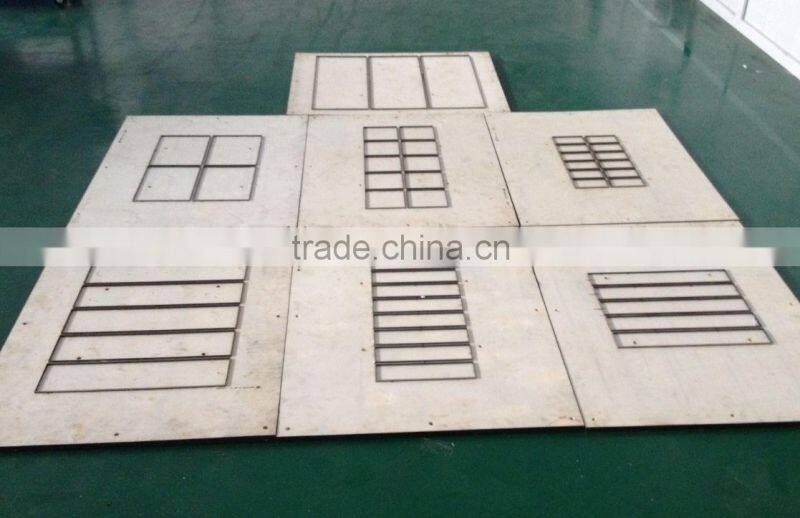

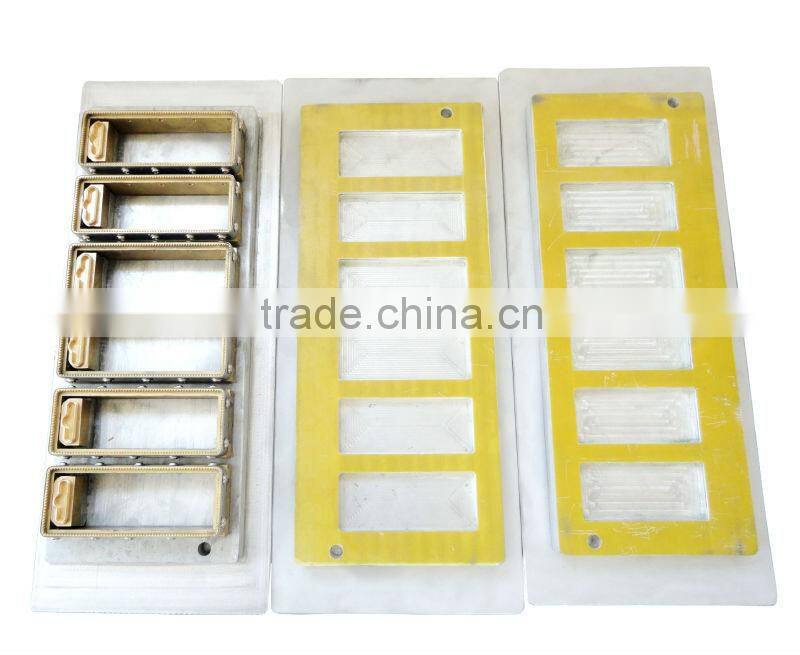

3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Troublesolving
