Specifications
roller pellet presse1.Productivity: increase30%-40%;
2.Energy consumption: decrease20%-30%.
3.Low space consume.
Brief introduction of roller pellet presse :
This kind roller pellet presse is specially designed for grinding clinker and raw meal.

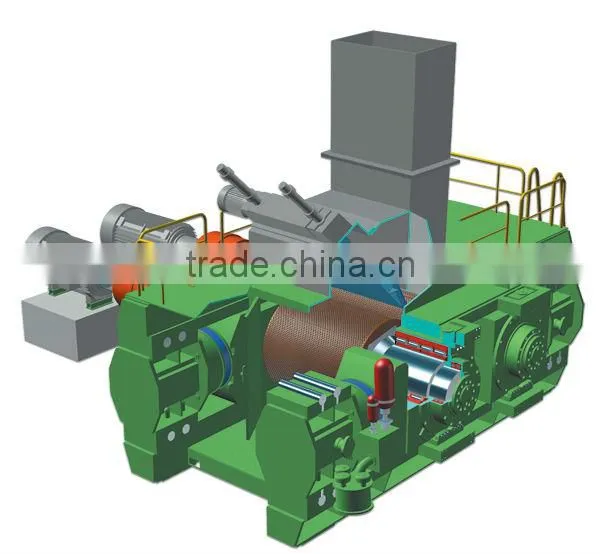

Features and Structures of roller pellet presse :
1. Four row cylinder roller bearing with higher capacity.
2. The roller shaft can be solid forged, or of the structure of fixed bush. The roller surface is with advanced and proven technology, long service-life, and easy maintenance.
3. The self-aligning hydro-cylinder adopts the America Parker cylinder head, with long-term reliable operation.
4. The moving roller and fixed roller adopts technology from Germany KHD Co., with self-aligning sliding, stable stress, good damping effect, and assures the long-term stable operation.
5. Advanced intelligent lubrication system
6. Perfect program control system, highly integrated hydraulic system, all critical parts are imported parts.
7. The adjustable feeding system with electric actuator.
8. It is flexible to be equipped with imported or domestic planetary reducer and main bearing.

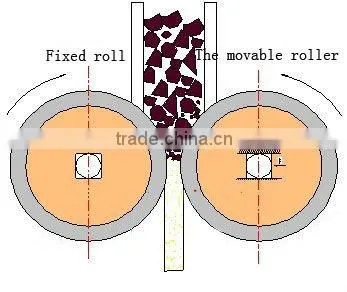

Working principle of roller pellet presse :
Application of roller pellet presse :
Technical parameter of roller pellet presse :
| Model | DG1000×600 | DG1200×500 | DG1400×650 | DG1600×1000 |
| Diameter of roller(mm) | Φ1000 | Φ 1200 | Φ 1400 | Φ 1600 |
| Width of roller(mm) | 600 | 500 | 650 | 1000 |
| Max feeding size(mm) | 50 | 50 | 50 | 60 |
| Discharging size(after screening)(mm) | All≤4 80%≤2 30%≤0.08 | All≤4 80%≤2 30%≤0.08 | All≤4 80%≤2 30%≤0.08 | |
| Capacity (t/h) | 70-110 | 120-180 | 220-300 | 500-650 |
| Power(kw) | 110 | 250 | 630 | 1250 |
| Dimension(L×W×H) (mm) | 3840×3220×1720 | 4700×6485×2485 | 9200×6320×3600 | 10800×8100×4400 |
Showroom of roller pellet presse
