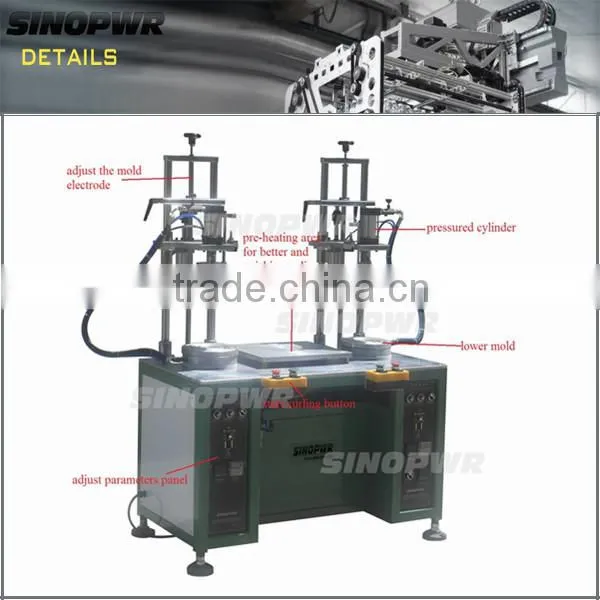

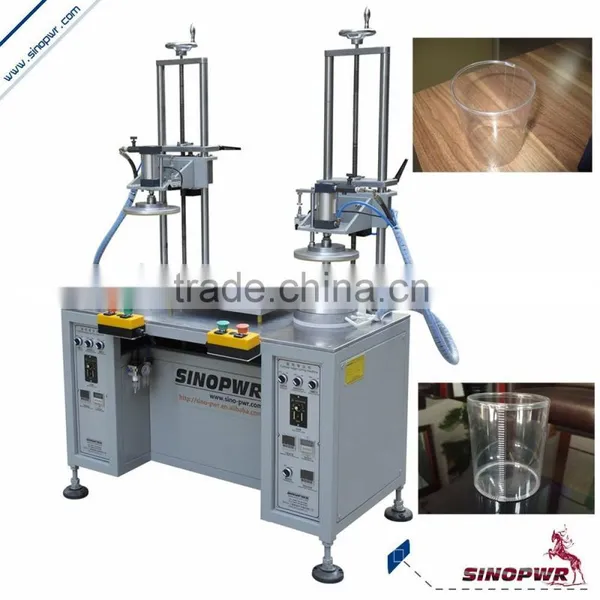

Transparent candy spicy box cylinder edge curling machine
This machine forms a production line for making plastic cylinders with our fully automatic flattening and slicing machine and microcomputer gluing machine, both semi-automatic and sull-automatic machines are available in our factory.
Cylinder Edge Curling Machine is Used for PVC, APET, PETG and other transparent plastic material cylinder edge curling.There are mainly two kind: 2 head and full Cylinder Curling Machine with high speed.
We have divided our cylinder tube machines series into several categories:
1.Automatic cylinder tube forming machine with gluing and ultrasonic functions.
2.Semi-auto cylinder tube gluing machine.
3.Semi-auto cylinder tube edge curling machine.
4.Automatic cylinder tube edge curling machine.
5.Ultrasonic or high frequency cylinder tube bottom welding machine.
Features:
1.With a preheating plate for edge curling, quick and accurate automatic cylinder edge.
2.Edge size according to the product requirements in the same mould do the size of the different specifications.
3.The screw height adjustment for the edge, according to the size of cylinder edge length adjust themselves.
4.Cylinder diameter size and length of consistency is good, the cylinder round edge effect is beautiful.
Specalized for edge curling PVC,APET,PETG cylinder(for shaping cylinder /Tubes, box, ellipse).
Applications:
Specialized for curling two sides of tube/cylinders to make PVC, APET, PETG and other transparent plastic materials tube container; Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products.
Specifications:
| Model | ZG-2102 |
| Heating plate diameter | 210 mm |
| Curling diameter | 30~200 mm |
| Voltage | 220V50/60HZ |
| Curling height | 15~450 mm |
| Productivity | 300pcs/hour |
| Production speed | 8~10pcs/minute/side |
| Pneumatic range | 3-5kg/cm2 |
| Material thickness | 0.25-0.5mm |
ShenZhen Sinopwr Ltd is specialized to manufacture plastic welding machines .Our machine consists of stationary and movable high frequency welding machines, ultrasonic plastic welding machine, heat plate welding machine, automatic blister packaging machine line.We have also designed and manufactured a great number of welding machines according to specific customer's needs.
It's our honor to produce the machine for our customer, We are ready to be your partners for the win-win cooperation and mutual benefits. The constantly growing family of customers is the result of making their expectations come true.
FAQ:
1,How to install the machine?
2,How do I use the machine ?
3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Troublesolving
