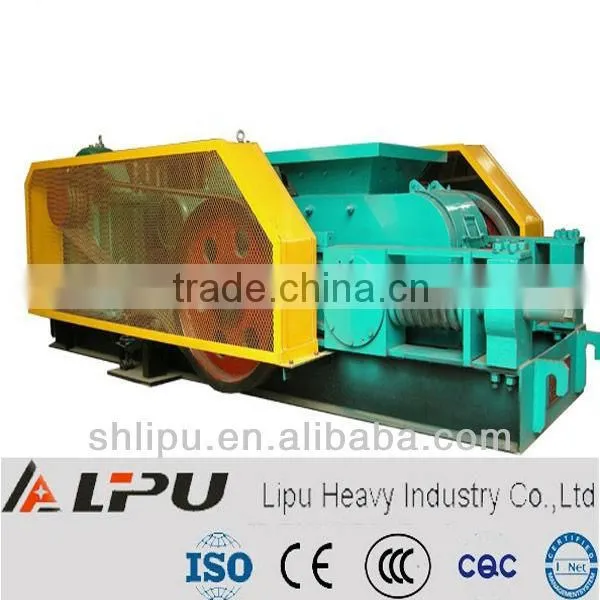

China Stone Roll Crusher Machinery Equipment
US$ 1,000 - 999,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Roller Crusher, Crushing plant
Application:
Mine,chemical industry,cement,building materials, Mine,chemical industry,cement,building materials
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao dalian etc. for stone roll crusher
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sell Low-Cost Sand Making Machine Export to IndiaUS$ 1,000 - 99,999MOQ: 1 Set -
PCL Series Sand Core Making Machine ManufacturerUS$ 1,000 - 99,999MOQ: 1 Set
-
Single Deck Dehydrate Linear Separator for MiningUS$ 1,500 - 999,999MOQ: 1 Set
-
Sand Washing Machine Manufacturer With Long Period WarrantyUS$ 1,000 - 999,999MOQ: 1 Set
-
Coal Roller Screen for Removing MediumUS$ 1,500 - 999,999MOQ: 1 Set
Condition
New
Type
Other, Roller Crusher, Crushing plant
Application
Mine,chemical industry,cement,building materials, Mine,chemical industry,cement,building materials
Motor Type
AC Motor
Power(W)
11000-90000
Capacity(t/h)
5-210t/h
Place of Origin
Shanghai, China
Brand Name
LIPU stone roll crusher
Model Number
2 PG series stone roll crusher
Dimension(L*W*H)
According to capacity
Weight
1.1-14t
Certification
CE,ISO9001:2000
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
stone roll crusher1.2PG series roll crusher;
2.Application:Mine,chemical ;
3.Discharging:2-30mm;
4.Capacity(t/h):5-125.
Specifications of stone roll crusher :
1.2PG series stone roll crusher
2.Application:Mine,chemical,cement etc
3.Discharging:2-30mm
4.Capacity:5-125t/h
Brief introduction of stone roll crusher :
stone roll crusher (or Roller Crusher) is used for middle crushing and fine crushing of all kinds of ores and rocks under mid-hardness in mine, chemical industry, cement, building materials and other industrial sections. This crusher has simple structure and can be operated conveniently. Ideal product size depends on adjusting space between two rollers.
Working principle of stone roll crusher :
stone roll crusher is made up of two cylindrical rolls which are installed horizontally. The two rolls rotate in different directions, materials fall on top of the rollers and enter crushing chamber under the action of roll surface friction to be crushed by the rollers, and the final product is discharged from outlet. The crushing process is continuous. The crusher has strong discharging force, so even wet materials can also be discharged.
Product parameter of stone roll crusher :
| Model | 2PG400×250 | 2PG610×400 | 2PGC450×500 | 2PGC600×750 |
| Diameter of roller (mm) | 400 | 610 | 450 | 600 |
| Length of roller (mm) | 250 | 400 | 500 | 750 |
| Max. feeding size (mm) | ≤25 | ≤85 | ≤100 | ≤300 |
| Discharging size (mm) | 2—8 | 2—30 | 2—25 | 2—30 |
| Capacity (t/h) | 5—10 | 13—40 | 20—55 | 60—125 |
| Roller number | 2 | 2 | 2 | 2 |
| Rotating speed (r/min) | 180 | 75 | 65 | 65 |
| Weight (t) | 1.1 | 3.5 | 3.8 | 8.34 |
| Overall Dimension (L×W×H) (mm) | 1215×834×830 | 2235×1722×810 | 2260×2200×766 | 2780×3065×1310 |
| Power (KW) | 11 | 30 | 11 | 44 |
