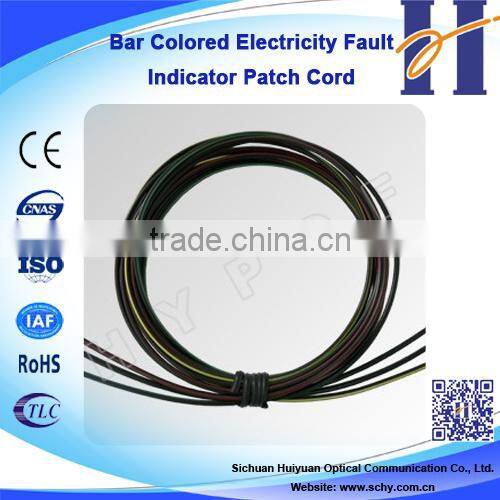

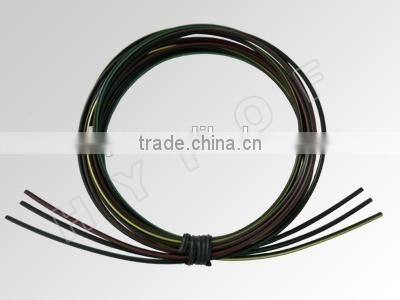

Bar Colored Electricity Fault Indicator Patch Cord Fiber Optic Cable
- 0 per Month
- T/T D/P D/A
Product Details
Place of Origin: | China | Brand Name: | HUIYUAN | Model Number: | patch cord |
Product Description
Bar Colored Electricity Fault Indicator Patch Cord Fiber Optic Cable
A.Optic fiber Description:
Anti-electromagnetic interference, stable and reliable signal transmission Light in weight, energy saving and safe, Easy to identify High bandwidth, excellent flexibility, vibration resistance Easy to install and connect, maintenance easy.
Sichuan Huiyuan has developed the color bar plastic cable and applied for patent protection. Wherein the power jumper made by color bar plastic cable has the feature of not producing light disturbing, simple technology, low defective rate and recognizable and also stable and credible signal transmission.
B.Optic fiber applications
Power system;
Industrial automation control system;
Industrial robot system and servo system;
Communication system;
Digital multimedia systems;
Medical sensor system, etc.
C.Model specifications
model | Fiber dia.(mm) | Cable dia. (mm) | Coil length (m) | color |
CCR2-1000 | 1.0±0.06 | 2.2±0.1 | 1000/1500 | red |
CCY2-1000 | yellow | |||
CCG2-1000 | green | |||
CCR-1000 | red | |||
CCY-1000 | yellow | |||
CCG-1000 | green |
D.Optic Fiber Basic properties
Parameters | Unit | Numerical value |
Fiber diameter | mm | 1.0 |
Cable diameter | mm | 2.2±0.1 |
Fiber material | --- | PMMA |
Jacket material | --- | PE |
Attenuation | dB/m | ≤0.2 or ≤0.4 |
NA | --- | 0.5 |
Wavelength | nm | 650 |
Incident angle | --- | ≤60° |
Bandwidth | MHz· 100m | ≥10 |
Cable length | m | 1~ 100mto order |
Bend radius | --- | ≥10times of fiber dia. |
Operating temperature | ℃ | -20~70 |
Storage temperature | ℃ | -20~70 |
Refractive index | --- | Step index |
Parallel Four Cores Plastic Optical Cable Fiber Optic Cable
F.Factory
Why choose us?
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW,ADSS and Plastic optic fiber are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
Contact Us
- Sichuan Huiyuan Optical Communications Co., Ltd.
- Contact nameLily Jiang
- Phone86-28-87826113
- AddressNo.2 Xinye Road Chengdu,Sichuan
