Mature technical succesfuly case Sawdust Rotary Dryer
- 90 Set / Sets per Month
- Shanghai qingdao dalian for Rotary Dryer 3-Wire Export
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Other, Rotary Drying Equipment, Rotary Dryer 3-Wire | Place of Origin: | Shanghai, China | ||
Brand Name: | LIPU | Model Number: | HG series. | Voltage: | According to different models. |
Power(W): | 3000-90000W | Dimension(L*W*H): | According to different capacities | Weight: | 2.9-140T |
Certification: | ISO9001-2008,CE,BV certificates, ISO9001:2000,CE,CV Certs | Warranty: | One year, One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard container or as customers' requirements.(Rotary Dryer 3-Wire)
Product Description
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.

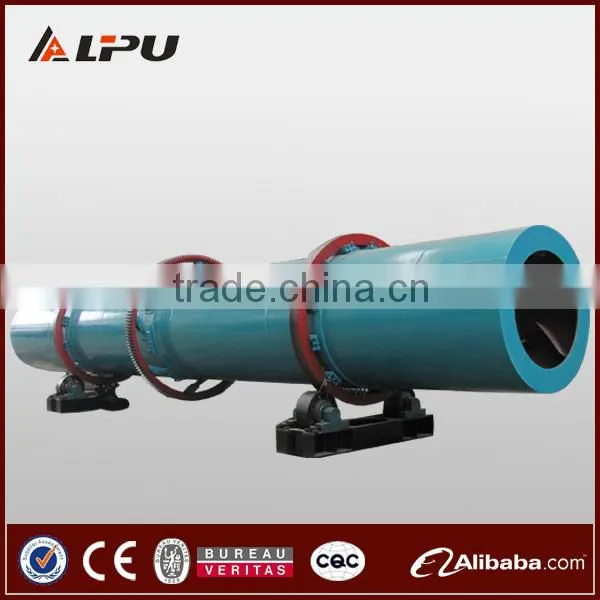

Mature technical succesfuly case Sawdust Rotary Dryer
Brief Introduction of Sawdust Rotary Dryer:
HG series of rotary dryer is one of the traditional drying equipments and suitable for drying the concentrate by metallic and non-metallic magnetic separation,flotation,gravity concentration ,cement clay, coal slime, ore, steel slag, quartz sand, kaolin, peng bentonite, etc.
Performance Features of Sawdust Rotary Dryer:
1.It can change operation parameters according to different material property , the dryer cylinder can form full section material fall which makes the heat exchange more fully.
2.New type feeding and discharging devices completely eradicate the disadvantages of traditional dryer like feeding jams, feeding discontinuously and unevenly, returning materials, and reduce the load of dust removal system .
3.Scale plate sealing is used to connect shell and feeding and discharging device , good sealing greatly reduce the shell internal heat loss, thus directly reducing the fuel consumption.
4.Counter-current drying method obtains higher evaporation intensity; Fair current drying method and indirect drying way are suitable for drying temperature sensitive material.
5.New burner satisfies the customers’ demand for saving energy and high efficiency. It can choose diesel oil, heavy oil, natural gas, coal gas etc to be fuel instead of the only choice for coal as fuel in the past.
Features of Sawdust Rotary Dryer:
1.Certificate:ISO9001:2000,CE,CV Certs.
2.Volume:1.7-225.2m3.
3.Dry metallic nonmetallic mineral.
4.Dry coal in coal mine.
5.High efficiency.
6.Low energy consumption.
7.Convenient for transportation.
8.Reliable operation.
Technical Parameters of Sawdust Rotary Dryer:
Model | Shell diameter (mm) | Shell length (mm) | Shell volume (m3) | Rotary speed (r/min) | Power(kW) | Weight(t) |
HG0.6×6 | 600 | 6000 | 1.7 | 1--8 | 3 | 2.9 |
HG0.8×8 | 800 | 8000 | 4 | 1--8 | 4 | 3.5 |
HG1×10 | 1000 | 10000 | 7.9 | 1--8 | 5.5 | 6.8 |
HG1.2×6 | 1200 | 6000 | 6.8 | 1--6 | 5.5 | 6.7 |
HG1.2×8 | 1200 | 8000 | 9 | 1--6 | 5.5 | 8.5 |
HG1.2×10 | 1200 | 10000 | 11.3 | 1--6 | 7.5 | 10.7 |
HG1.2×11.8 | 1200 | 11800 | 13.4 | 1--6 | 7.5 | 12.3 |
HG1.5×8 | 1500 | 8000 | 14.1 | 1--5 | 11 | 14.8 |
HG1.5×10 | 1500 | 10000 | 17.7 | 1--5 | 11 | 16 |
HG1.5×11.8 | 1500 | 11800 | 21 | 1--5 | 15 | 17.5 |
HG1.5×15 | 1500 | 15000 | 26.5 | 1--5 | 15 | 19.2 |
HG1.8×10 | 1800 | 10000 | 25.5 | 1--5 | 15 | 18.1 |
HG1.8×11.8 | 1800 | 11800 | 30 | 1--5 | 18.5 | 20.7 |
HG1.8×15 | 1800 | 15000 | 38.2 | 1--5 | 18.5 | 26.3 |
HG1.8×18 | 1800 | 18000 | 45.8 | 1--5 | 22 | 31.2 |
HG2.2×11.8 | 2200 | 11800 | 44.8 | 1--4 | 22 | 30.5 |
HG2.2×15 | 2200 | 15000 | 53.2 | 1--4 | 30 | 36.2 |
HG2.2×18 | 2200 | 18000 | 68.4 | 1--4 | 30 | 43.3 |
HG2.2×20 | 2200 | 20000 | 76 | 1--4 | 30 | 48.8 |
HG2.4×15 | 2400 | 15000 | 67.9 | 1--4 | 30 | 43.7 |
HG2.4×18 | 2400 | 18000 | 81.4 | 1--4 | 37 | 53 |
HG2.4×20 | 2400 | 20000 | 90.5 | 1--4 | 37 | 60.5 |
HG2.4×24 | 2400 | 24000 | 108.6 | 1--4 | 45 | 69.8 |
HG2.8×18 | 2800 | 18000 | 110.8 | 1--3 | 45 | 71.6 |
HG2.8×20 | 2800 | 20000 | 123.2 | 1--3 | 55 | 76.8 |
HG2.8×24 | 2800 | 24000 | 147.8 | 1--3 | 55 | 85 |
HG2.8×28 | 2800 | 28000 | 172.4 | 1--3 | 75 | 95 |
HG3×20 | 3000 | 20000 | 141.4 | 1--3 | 55 | 87 |
HG3×24 | 3000 | 24000 | 169.7 | 1--3 | 75 | 105 |
HG3×28 | 3000 | 28000 | 198 | 1--3 | 90 | 123 |
HG3.2×24 | 3200 | 24000 | 193 | 1--3 | 90 | 120 |
HG3.2×28 | 3200 | 28000 | 225.2 | 1--3 | 90 | 140 |

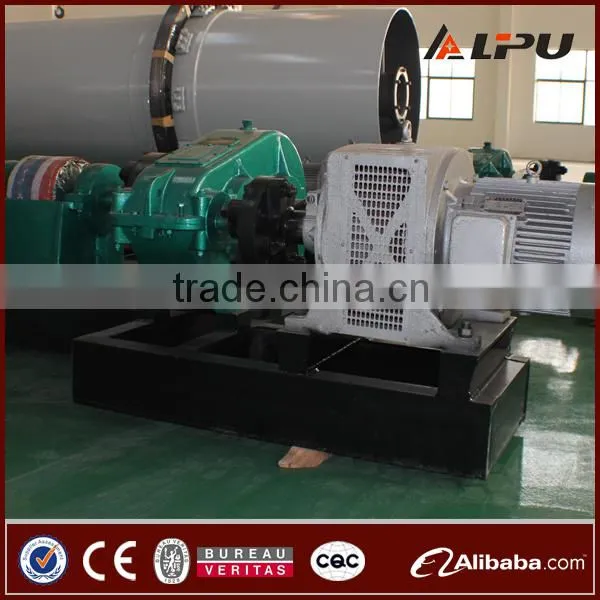

Producing Process of Sawdust Rotary Dryer:
Delivery Site of Sawdust Rotary Dryer:
Work Site of Sawdust Rotary Dryer:
Company Profile
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.
We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.
While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.
Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
