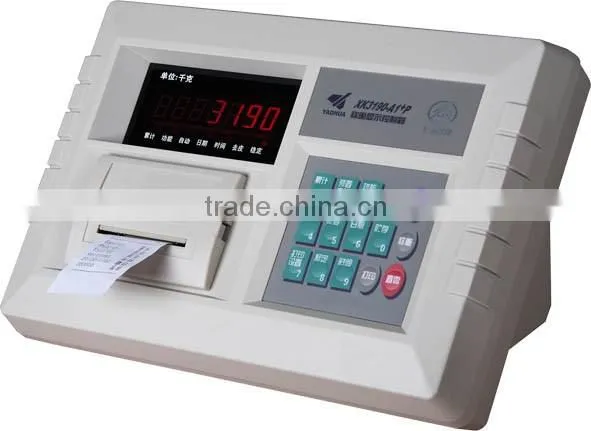

weighing display indicator XK3190-A1+P
weighing display indicator Introduction
XK3190 - A1 + P external four sensors, retain the basic function of A1 + table, built-in panel micro printer, suitable mechanical and electrical innovation scales, electronic multi-function platform scale and the use of 1 ~ 4 sensor static weighing occasions.
weighing display indicator Standard function
Zero (boot/manual) range is adjustable
The date and time display (note: don't save when power supply drop)
Manual storage accumulation
Weighing record storage power-fail protection
Automatic/manual printing weighing record
Communication interface: RS232C, communication/optional baud rates;
Big screen interface: serial output, transmission distance of 50 meters or less;
Built-in 16 panel micro printer, integrates instrument printing;
Technical parameters
A/D conversion method: double integral type
A/D conversion rate: 5 or more times per second
Input signal range: 1 ~ 24 mV mV
The input sensitivity: 1 mu V/e or higher
Sensor for the bridge power supply: DC 12 v
Connect the sensor number: can meet four 350 Ω sensors
Sensor connection mode: four wire system
Verification points degree: 3000
Dividing value: 1/2/5/10/20/50/100 is optional
The display mode: seven LED digital tube, seven state indicator
Display range: - 99990 ~ 99990 (d 10 or higher)
Clock: soft clock, power is not saved
Big screen interface
Signal output way: serial output
Signal: < SPAN style = "FONT - SIZE: 9 pt; the font-family: tahoma; the oledata.mso - ASCII - the font-family:
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
