Explosion-proof Weighing Controller XK3190-EX-A8
Explosion-proof Weighing Controller Introduction
XK3190 - Ex - A8 stainless steel safety type explosion-proof instrument, suitable for: electronic platform scale, platform scale, ground value such as using static weighing up to four 350 Ω sensor system, can be applied to most of the explosive gas.
Explosion-proof grade: [Ex ib] IIC T4
Standard function
Pieces of multi-function LCD display window
Peak keep, animal husbandry scale function in pieces
Mixer external serial printing function
Real time clock function, automatically leap year leap month, built-in self-provided power protection
Pieces more than the unit switch function
Pieces of manual/automatic accumulation function
Tare mixer preset functions
Upper and lower alarm function, HIGH - OK - LOW status indication
Mixer level 4 battery indicator, under-voltage alarm and automatic shutdown function
Low power design, auto dormancy and multistage power saving mode
Mixer multistage backlight brightness control
As many as 99 pieces set of weighing data and time of storage and query
Can be used in the explosion-proof type lithium batteries or matching the Ann model dc power supply
Pieces of optional RS - 232 - c and RS485 communication, baud rate is optional
Optional big screen communication, 20 ma current loop connection mode
Mixer optional 4 ~ 20 ma analog output
Mixer extensible 3 way I/O port control
The mixer adopts circuit board potting protection technology
Stainless steel waterproof casing, protective class IP65
Use anti-static button panel, 6 touch buttons

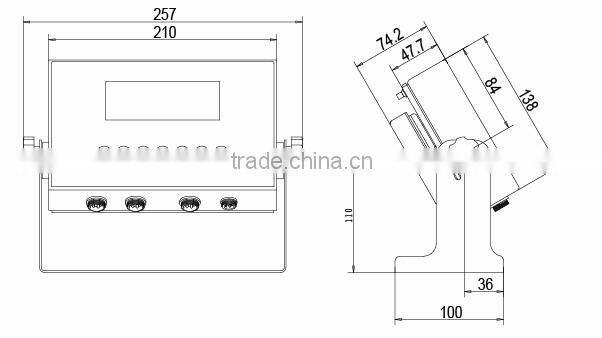

Appearance:
Technical parameters
Mixer adopt 32-bit low-power ARM processor, frequency 50 MHZ
Accuracy level: level 3
Largest verification points degree: 3000
High precision analog-to-digital conversion technology, readability is 1/30000
The input signal range: - 19 ~ mv mv
Conversion rate: 80 times/SEC or less
Nonlinear: 0.0015% or less
For the bridge voltage: DC 5 v
Sensor connection: 1 ~ 4 only 350 Ω sensor
Dividing value: 1/2/5/10/20/50 optional
Communication interface (optional) : the RS - 232 - c, RS485 communication, large screen interface.
Power supply: AC 220 v / 50 ~ 60 hz (equipped with a dedicated power supply)
9.6 V / 3 ah lithium-ion battery pack
Temperature: - 10 ℃ to 40 ℃
Storage temperature: 25 ℃ ~ 55 ℃
Big screen interface (optional) :
Serial output signal output way:, current loop signal.
Baud rate: 600
Transmission distance: 200 m or less
Serial communication interface (optional)
Mixer RS232C way and RS485
Baud: 600/1200/9600/600/1200 are optional
Transmission distance: 30 meters or less (RS232C way)
1000 meters or less (RS485)
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
