weighing indicator XK3190-DS9
Introduction
Pieces of stainless steel shell
Mixer used CORTEX A8 industrial-grade main processor architecture, embedded operating system based on android development, friendly man-machine interface is easy to use
Use the touch screen/button double input, operation is flexible and simple
All Chinese interface, maintenance, simple to use
USB Host 4 road, support the USB2.0 protocol, can connect U disk, PC keyboard, mouse, barcode gun and other peripherals.
Provide digital communication waveform display, intuitive testing communication status
Mixer can store up to 20000 weighing record
In pieces to support multiple anti-cheating measures
Mixer extension module supports standard yao hua
In pieces to support Internet access functions
In pieces with multiple diagnosis way, debugging is simple
Mixer optional Ethernet, 4 ~ 20 ma, on-off and various extension interface
M words LED digital tube display, can be stored, printed complete license plate number in Chinese
Standard function
Several digital sensors yao hua agreement in pieces can be connected
Mixer automatic/semi-automatic/manual Angle correction method
Pieces of digital sensor communication address modification functions
See the pieces of a single sensor data
Automatic switching mixer second index value;
Pieces of nonlinear correction and calibration error correction functions
Mixer regular shutdown function
Mixer equipped with two independent full duplex UART, used to connect to computer, PLC and other equipment, a variety of communication methods are optional.
Mixer equipped with current loop large screen communication mouth;Equipped with standard parallel print interface
Pieces weighing record storage/check/delete/power protection
Mixer can backup and restore of various parameters of the instrument is reliable and practical

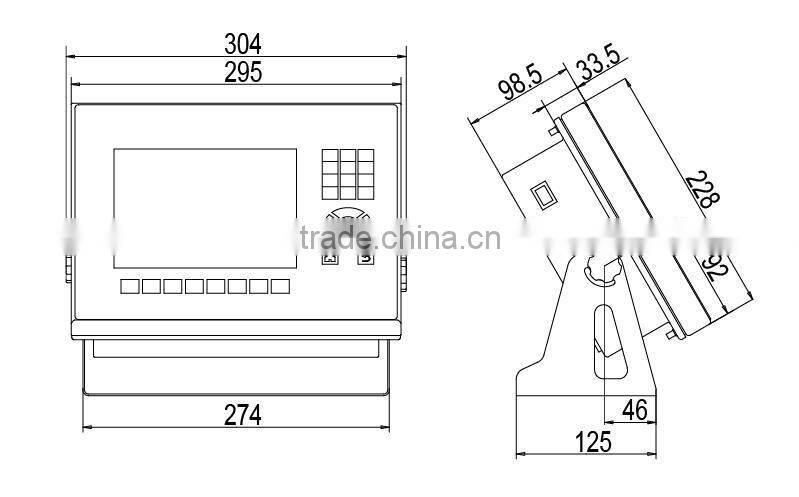

Appearance:
Technical parameters
Digital sensors connected
Connection mode: RS485 way, hexagon line compatible
Communication distance: about 1000 meters
Connection number: 1 ~ 16
Sensor communication protocol: Shanghai yao hua
Sensor power supply: DC 10 v, 0.8 A (Max)
According to
Screen display mode: 8 inch TFT industry, 800 x 600 resolution
Clock: real-time clock, automatic leap year, leap month, is not affected by power outages
Big screen interface
Serial output signal: 20 ma current loop, and transmission distance: 2000 m or less
Print interface
Pieces can be connected line printer: LQ - 300 k, KX - P1131, KX - P1121, DS - 300
Micro thermal degrees play: POS58, T58D
Serial communication interface
Standard configuration: 1, RS232 / RS485 adaptive;2, RS232
Power supply:
The ac power: AC187 ~ 242 v, 49 ~ 51 hz
Dc power supply: external 12 v battery power supply
Package and Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
