Help CenterSupplier High Quality Round S Type Load Cell 10t(TSF)
Related Products
-
Supplier S Beam Load Cell for Hopper ScaleUS$ 20.5 - 50.98MOQ: 50 Pieces -
S Type Load Cell for Force Measuring System (50lb~10klb)US$ 25 - 350MOQ: 1 Piece
-
China S Type Weighing Transducer Load Cellload Cell 1000kg Quality ChoiceUS$ 38 - 60MOQ: 1 Piece
-
Supplier S Type Compression and Tension Load Cell Sensor(2t,3t,5t)US$ 65 - 178MOQ: 1 Piece
-
China Supplier Alloy Steel S-type Load Cell (5kg~20t) Quality ChoiceUS$ 15 - 29MOQ: 1 Piece

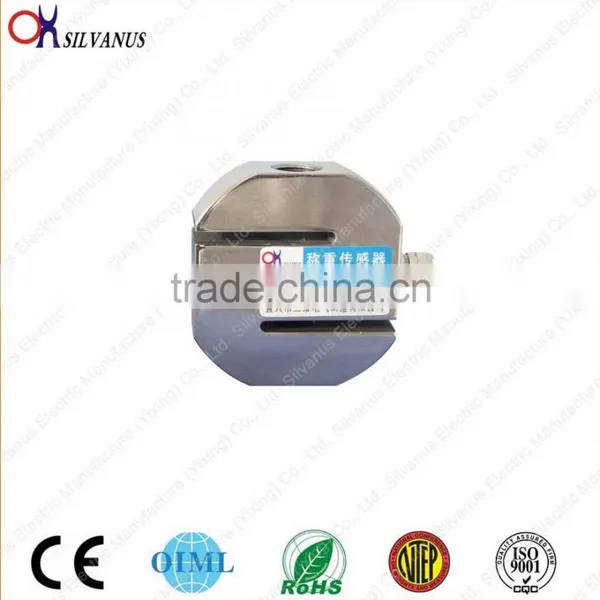

S-type load cell(TSF)

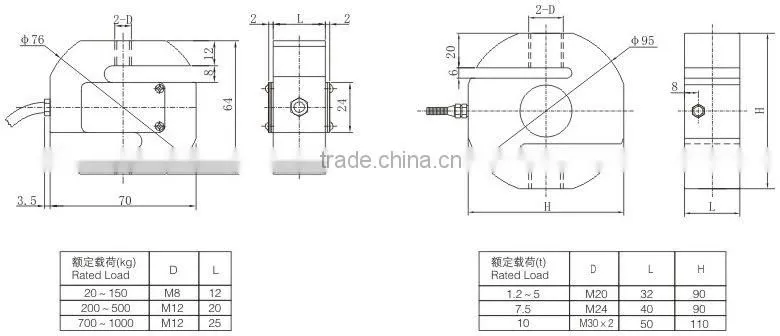

Dimensions(mm)
Specifications
Emax(Max. capacity) |
t |
0.02~10 |
|
Sensitivity |
mV/V |
2.0±0.002 |
|
Accuracy class |
|
C2 |
C3 |
Maximum number of verification intervals |
nmax |
2000 |
3000 |
Minimum load cell verification interval |
Vmin |
Emax/2000 |
Emax/3000 |
Combined error |
%F.S |
≤±0.020 |
≤±0.015 |
Creep |
%F.S/30min |
≤±0.020 |
≤±0.015 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Temperature effect on zero |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Zero balance |
%F.S |
±1.0 |
|
Input resistance |
Ω |
380±10Ω |
|
Output resistance |
Ω |
350±3Ω |
|
Service temperature range |
°C |
-30...+70 |
|
Safe overload |
%F.S |
120 |
|
Ultimate overload |
%F.S |
200 |
|
Recommended excitation voltage |
V |
5…15 |
|
Insulation resistance |
MΩ/50V |
>5000 |
|
Protection class |
|
IP67/IP68 |
|
Load cell material |
|
Alloy steel |
|
Cable length |
m |
3 |
|
Cable outer caliber |
mm |
Φ5 |
|
Features
l Round S type load cell , tension and compression
l Good output symmetry , compact structure , simple to install , full range of capacities
l Suitable for electromechanical scale , crane scale ,hopper scale and various special scales
Application
Suitable for electromechanical scale ,crane scale, force measuring systems,hopper scale and various special scales
