S-type load cell(TSE)

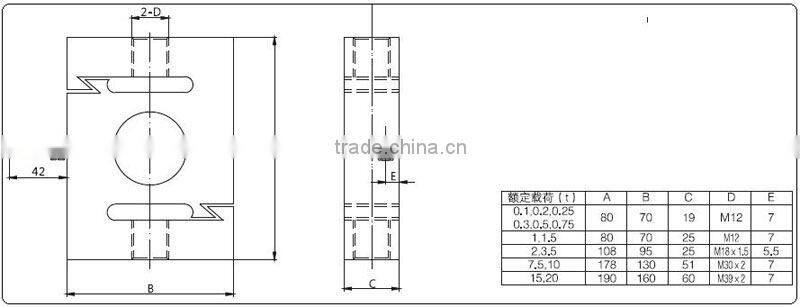

Dimensions(mm)
Specifications
Emax(Max. capacity) |
t |
0.1~20 |
|
Sensitivity |
mV/V |
2.0±0.002 |
|
Accuracy class |
|
C2 |
C3 |
Maximum number of verification intervals |
nmax |
2000 |
3000 |
Minimum load cell verification interval |
Vmin |
Emax/2000 |
Emax/3000 |
Combined error |
%F.S |
≤±0.020 |
≤±0.015 |
Creep |
%F.S/30min |
≤±0.020 |
≤±0.015 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Temperature effect on zero |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Zero balance |
%F.S |
±1.0 |
|
Input resistance |
Ω |
380±10Ω |
|
Output resistance |
Ω |
350±3Ω |
|
Service temperature range |
°C |
-30...+70 |
|
Safe overload |
%F.S |
120 |
|
Ultimate overload |
%F.S |
200 |
|
Recommended excitation voltage |
V |
5…15 |
|
Insulation resistance |
MΩ/50V |
>5000 |
|
Protection class |
|
IP67/IP68 |
|
Load cell material |
|
Alloy steel |
|
Cable length |
m |
3(0.1~1.5t)6(2~20t) |
|
Cable outer caliber |
mm |
Φ5 |
|
Application
Suitable for electromechanical scale,crane scale,hopper scale and various special scales
