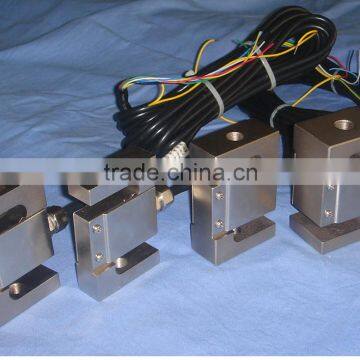

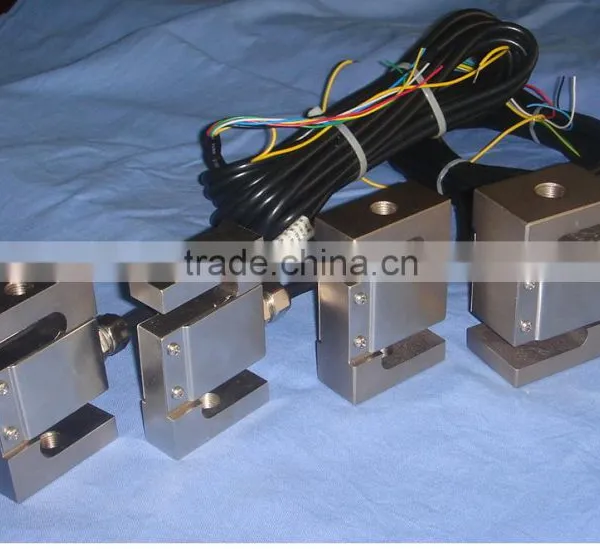

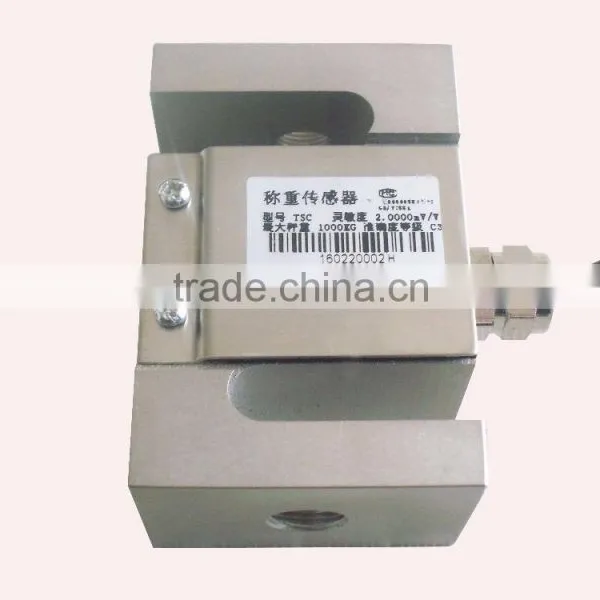

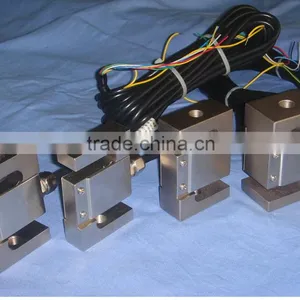

Help CenterLoad Cell Stainless Steel S Type Load Cell for Portable Scale TSC(100-1000kg) Supplier's Choice
Related Products
-
Load Cell Stainless Steel S Type Load Cell for Portable Scale TSB(2,3,5t) Supplier's ChoiceUS$ 50 - 120MOQ: 1 Piece -
Measuring Load Cell Sensor Load Pin (ZXA) (2-30t) For Chain Crane Scale for Truck ScalesUS$ 100 - 150MOQ: 1 Piece
-
Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb)US$ 70 - 630MOQ: 1 Piece
-
Double Shear Beam Compression Load Cell 100t (QSK-C)(0.5t~100t) for Truck ScalesUS$ 150 - 400MOQ: 1 Piece
-
Precision Double Shear Beam Load Cell (QSG-A)US$ 250 - 500MOQ: 1 Piece
Product description

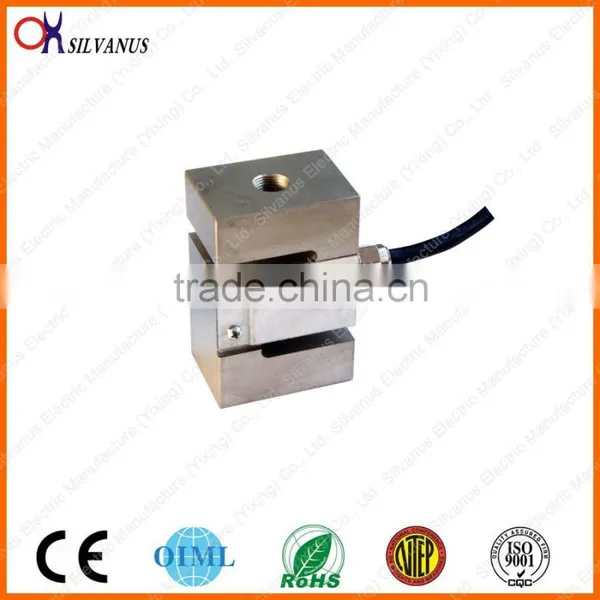

l S type load cell , tension and compression
l Good output symmetry , compact structure , simple to install , full range
l of capacities
l Suitable for electromechanical scale , crane scale ,hopper scale and
l various special scales
Technical data
Emax(Max. capacity) | kg | 100~1000 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/2000 | Emax/3000 |
Combined error | %F.S | ≤±0.020 | ≤±0.015 |
Creep | %F.S/30min | ≤±0.020 | ≤±0.015 |
Temperature effect on sensitivity | %F.S/10℃ | ≤±0.02 | ≤±0.017 |
Temperature effect on zero | %F.S/10℃ | ≤±0.02 | ≤±0.017 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 380±10Ω | |
Output resistance | Ω | 350±3Ω | |
Service temperature range | ℃ | -30...+70 | |
Safe overload | %F.S | 120 | |
Ultimate overload | %F.S | 200 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class |
| IP67/IP68 | |
Load cell material |
| Alloy steel | |
Cable length | m | 5 | |
Cable outer caliber | mm | Φ5 | |
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
1.How to place an order?
Please provide us more details of what you want .
2.What terms of payment are available?
we accept T/T, L/C,Trade assurance,Western Union,etc.
3.When will you arrange the production?
we will arrange the production immediately after receiving your payment.
4.How do you ensure good product quality?
we have a complete quality control system ,all of our products are fully checked by IQC ,OQC departments before shipping to our clients.
