Home > Electrical & Electronics > Sensor > Pressure Sensor > Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb)

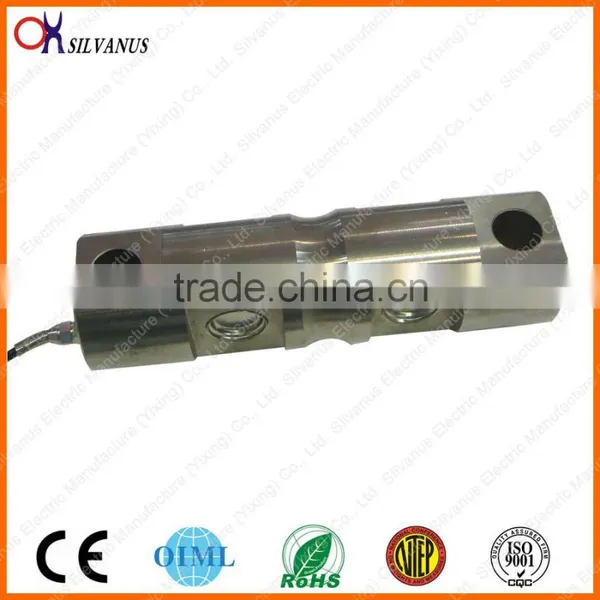

Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb)

Name: Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb)
Brand: SILVANUS
SKU: 110204063
Availability: InStock

Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb) thumbnail-1

Double Shear Beam Compression Load Cell 100t (QSL)(5-100klb) photo-1

US$ 70 - 630 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

QSL

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number QSL

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Product Description

Product description

l Bridge type double shear beam, unique floating bearing structure

l Self-resetting , good side force resistance and shock resistance

l Moisture-proof sealed , ideal for hostile environment

l Simple to install , easy to use , good interchangeability

l Suitable for electronic truck scale , railroad scale , hopper scale and various special scales.

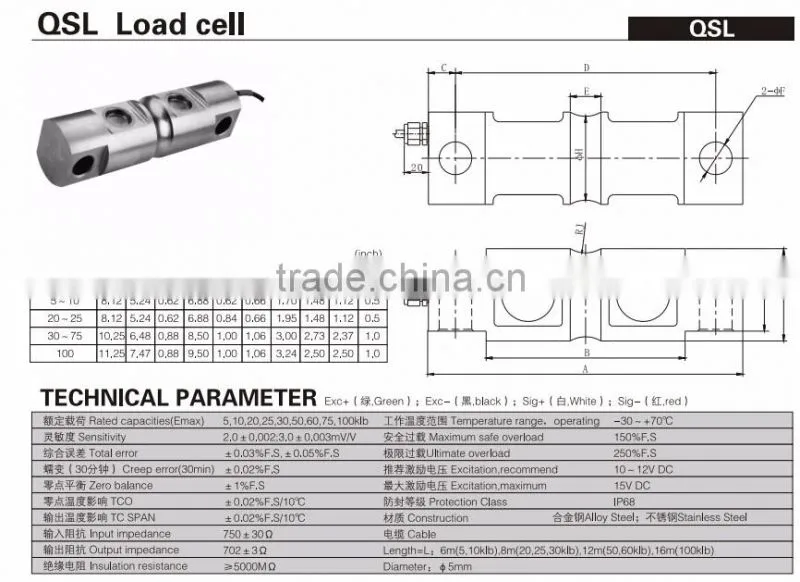

Technical data

Emax(Max. capacity)	Klb	5~100
Sensitivity	mV/V	3.0±0.002
Accuracy class		D1	C1
Maximum number of verification intervals	n_max	2000	3000
Minimum load cell verification interval	V_min	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.1	≤±0.05
Creep	%F.S/30min	≤±0.1	≤±0.05
Temperature effect on sensitivity	%F.S/10℃	≤±0.03	≤±0.03
Temperature effect on zero	%F.S/10℃	≤±0.03	≤±0.03
Zero balance	%F.S	±1.0
Input resistance	Ω	760±10Ω
Output resistance	Ω	700±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Alloy steel
Cable length	m	8(5~30)12(50~60)16(100)
Cable outer caliber	mm	Φ6

Packaging & Shipping

Our Services

Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Company Information

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
