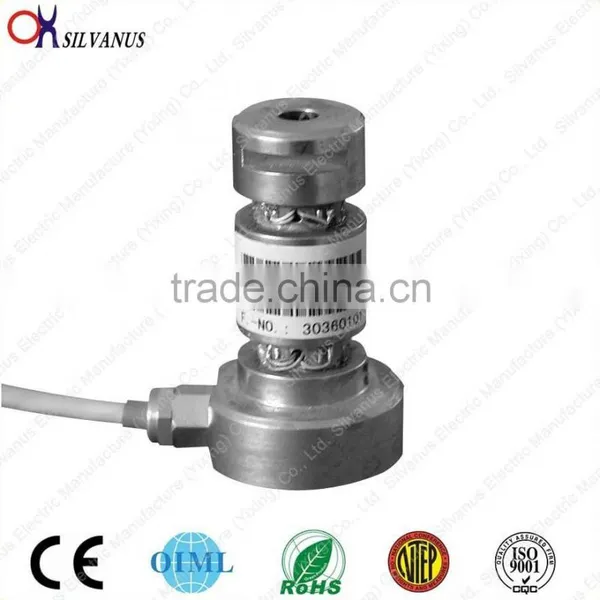

Load Pin Load Cells for Railway Scales

Name: Load Pin Load Cells for Railway Scales
Brand: silvanus
SKU: 110203551

US$ 10 - 25 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

silvanus

Model Number:

ZXA

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name silvanus

Model Number ZXA

Usage Other, weighing sensor

Theory Resistance Sensor

Output Analog Sensor

Load pin load cells for railway scales

load pin description:

Hermetically sealed

Max. Capacities :2-30t

Safe and reliable, good stability

To replace the original axis function, and the forcemeasuring and weighing

Suitable for all kinds of crane, hoisting mechanism, rigging shackle, dynamic, and slide of ships with rigging, a connecting fork, rings etc

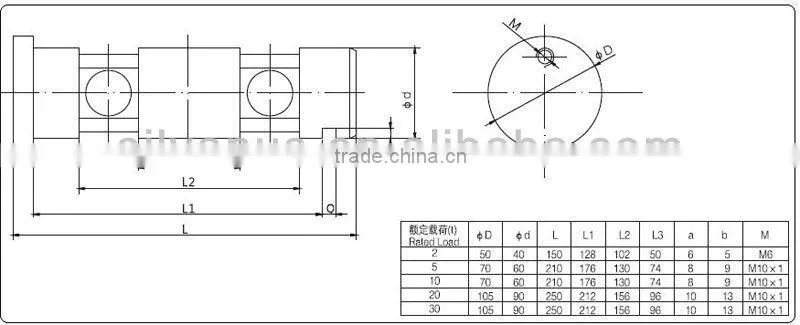

Load Cell Dimensions

Load Cell specification

Emax(Max. capacity)	t	2~30
Sensitivity	mV/V	1.0/1.5±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10℃	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10℃	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	760±10Ω
Output resistance	Ω	700±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66/IP68
Load cell material		Alloy steel
Cable length	m	1.5m,4m
Cable outer caliber	mm	Φ5
