Home > Electrical & Electronics > Sensor > Pressure Sensor > Alloy Steel Tension Load Cell

Alloy Steel Tension Load Cell

Name: Alloy Steel Tension Load Cell
Brand: Silvanus
SKU: 110203591
Availability: InStock

Alloy Steel Tension Load Cell thumbnail-1

US$ 98 - 459 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Silvanus

Model Number:

LSD

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Silvanus

Model Number LSD

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Tension Load Cell (LSD)(1~10t)

Load Cell (LSD) Features

1.Board and ring type ,thin wall and blind hole structure

2.High precision , strong anti-deflective loading

3.Good shock resistance , simple to install

4.Moisture-proof sealed , ideal for hostile environment

Load Cell (LSD) Application

Apply to electronic hook scales and various special weighing apparatus

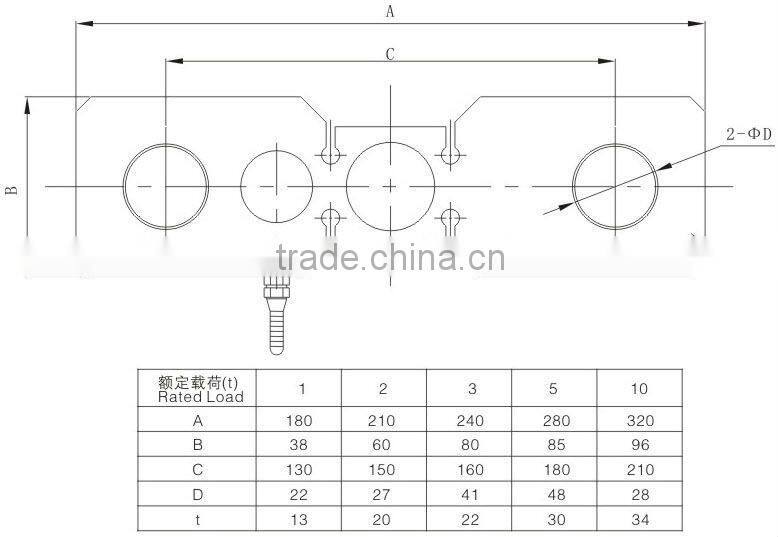

Load Cell (LSD)Dimensions(mm)

Load Cell (LSD) specifications

Emax(Max. capacity)	t	1~10
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10°C	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67/IP68
Load cell material		Alloy steel
Cable length	m	2
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
