Single Shear Beam Load Cell 10T Weight Sensor

Name: Single Shear Beam Load Cell 10T Weight Sensor
Brand: SILVANUS
SKU: 110203167
Availability: InStock

Single Shear Beam Load Cell 10T Weight Sensor thumbnail-1

Single Shear Beam Load Cell 10T Weight Sensor photo-1

US$ 30 - 70 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

XBD

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number XBD

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Single Shear Beam Load Cell(XBD)(0.5~10t)

XBD Load Cell Features :

1 Shear beam load cell ,one end fixed ,diverse loading ,and good seal structure

2 Self-centering ,simple to install ,easy to use ,good interchangeability

3 Suitable for various ultrathin electronic truck scale , one-track crane scale ,hopper scale ,etc.

XBD Load Cell Application :

Apply to electronic hook scales and various special weighing apparatus

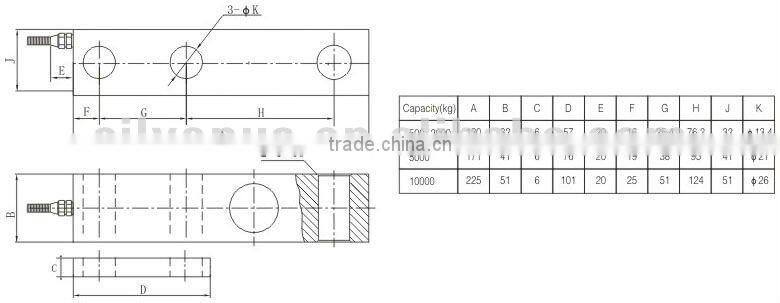

XBD Load Cell Dimensions(mm):

XBD Load Cell Specifications:

Emax(Max. capacity)	t	0.5~10
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	352±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	≥ 5000
Protection class		IP67/IP68
Load cell material		Alloy steel / Stainless steel
Cable Size	3m(0.5~2t)/5m(5~10t)
Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow]

Packaging & Delivery

PACKAGE:

Delivery

Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
