Home > Electrical & Electronics > Sensor > Pressure Sensor > Single Shear Beam Low Cost Bench Scale Weight Sensor

Single Shear Beam Low Cost Bench Scale Weight Sensor

Name: Single Shear Beam Low Cost Bench Scale Weight Sensor
Brand: SILVANUS
SKU: 110203201
Availability: InStock

Single Shear Beam Low Cost Bench Scale Weight Sensor thumbnail-1

Single Shear Beam Low Cost Bench Scale Weight Sensor photo-1

US$ 25 - 60 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

XBB-B

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number XBB-B

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Single Shear Beam low cost bench scale weight sensor

XBB-B low cost bench scale weight sensor Features :

Shear beam load cell ,one end fixed ,diverse loading ,and good seal structure

Self-centering ,simple to install ,easy to use ,good interchangeability

Suitable for various ultrathin electronic truck scale , one-track crane scale ,hopper scale ,etc.

XBB-B low cost bench scale weight sensor Application :

Apply to electronic hook scales and various special weighing apparatus

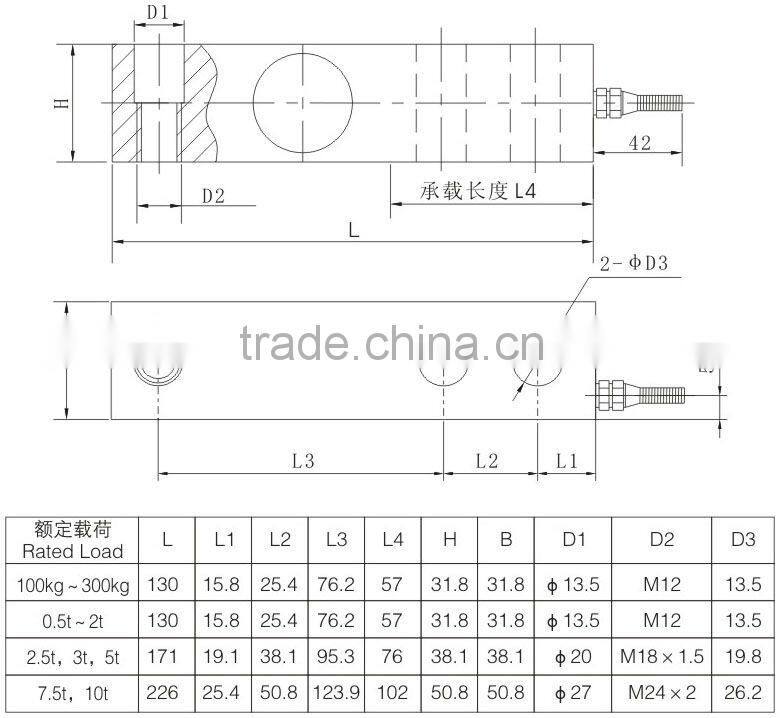

XBB-B low cost bench scale weight sensor Dimensions(mm):

XBB-B low cost bench scale weight sensor Specifications:

Emax(Max. capacity)	t	0.1~10
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.016
Creep	%F.S/30min	≤±0.020	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67;IP68
Load cell material		Alloy steel
Cable length	m	3(0.1~2t)/5(3~10t)
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
