Home > Electrical & Electronics > Sensor > Pressure Sensor > Pressure Transducer Load Cell 15t For Weighing Machine

Pressure Transducer Load Cell 15t For Weighing Machine

Name: Pressure Transducer Load Cell 15t For Weighing Machine
Brand: SILVANUS
SKU: 110202813
Availability: InStock

Pressure Transducer Load Cell 15t For Weighing Machine thumbnail-1

Pressure Transducer Load Cell 15t For Weighing Machine photo-1

US$ 79 - 159 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

QST

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number QST

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

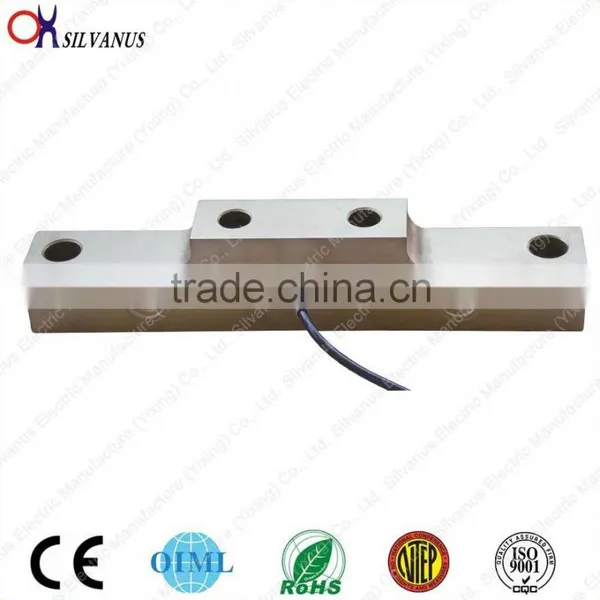

Double Ended Shear Beam Load Cell (QST)(15t)

Load Cell (QST) Features:

1.Bridge type double shear beam, unique floating bearing structure

2.Self-resetting , good side force resistance and shock resistance

3. Moisture-proof sealed , ideal for hostile environment

4.Simple to install , easy to use , good interchangeability

Load Cell (QST) Application:

truck scales,rail scales,bin and hopper scales,etc.

Load Cell (QST) Dimensions(mm):

Load Cell (QST)Specifications

Emax(Max. capacity)	t	1.5~40
Sensitivity	mV/V	1.5±0.002
Accuracy class		D1
Maximum number of verification intervals	nmax	1000
Minimum load cell verification interval	Vmin	Emax/2000
Combined error	%F.S	≤±0.05
Creep	%F.S/30min	≤±0.05
Temperature effect on sensitivity	%F.S/10°C	≤±0.05
Temperature effect on zero	%F.S/10°C	≤±0.05
Zero balance	%F.S	±1.0
Input resistance	Ω	760±10Ω
Output resistance	Ω	700±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Alloy steel
Cable length	m	1.5
Cable outer caliber	mm	Φ6

Packaging & Delivery

PACKAGE:

Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
