Help CenterZemic Load Cell 50t (QSA)
Related Products
-
Stainless Steel Similar Mettler Toledo Floor Scale Load CellUS$ 40 - 50MOQ: 5 Pieces -
Similar Mettler Toledo Load Cell Sensor for Floor ScaleUS$ 40 - 50MOQ: 2 Pieces
-
Stainless Steel Single Shear Beam Platform Scale Load CellUS$ 60 - 70MOQ: 1 Piece
-
Stainless Steel Single Shear Beam Weighbridge Load CellUS$ 65 - 79MOQ: 1 Piece
-
Single Shear Beam Overload Limiter SensorUS$ 25 - 55MOQ: 1 Piece

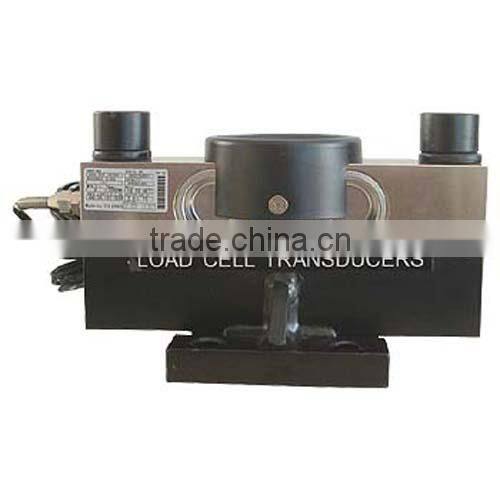

Zemic double ended shear beam load cell

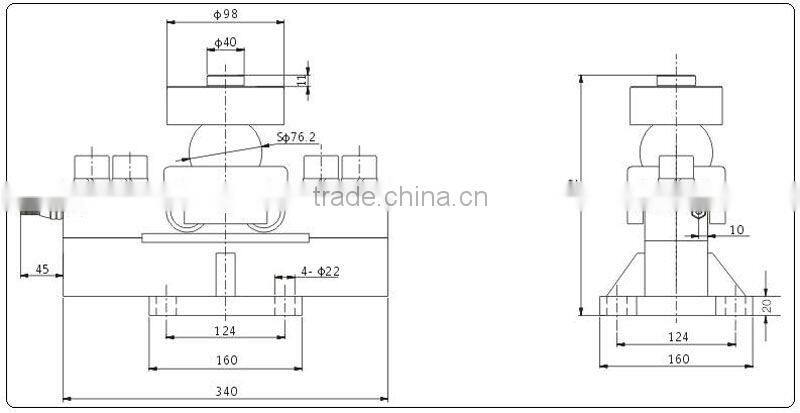

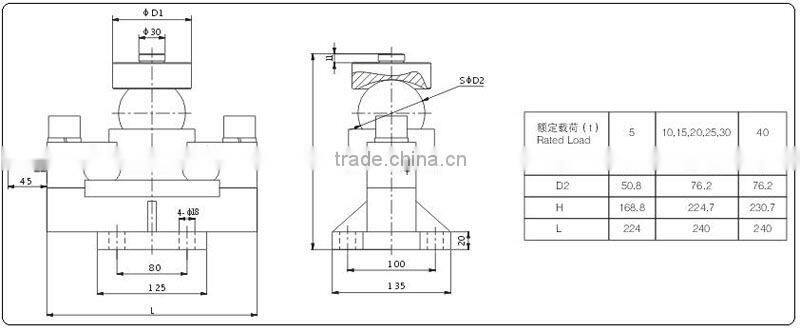

Zemic load cell Dimensions(mm)
10~40t:
40~50t:
Emax(Max. capacity) |
t |
40/50 |
|
Sensitivity |
mV/V |
2.0±0.002 |
|
Accuracy class |
|
C2 |
C3 |
Maximum number of verification intervals |
nmax |
2000 |
3000 |
Minimum load cell verification interval |
Vmin |
Emax/5000 |
Emax/10000 |
Combined error |
%F.S |
≤±0.030 |
≤±0.020 |
Creep |
%F.S/30min |
≤±0.024 |
≤±0.016 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.017 |
≤±0.011 |
Temperature effect on zero |
%F.S/10°C |
≤±0.023 |
≤±0.015 |
Zero balance |
%F.S |
±1.0 |
|
Input resistance |
Ω |
750±10Ω |
|
Output resistance |
Ω |
703±5Ω |
|
Service temperature range |
°C |
-30...+70 |
|
Safe overload |
%F.S |
150 |
|
Ultimate overload |
%F.S |
250 |
|
Recommended excitation voltage |
V |
5…15 |
|
Insulation resistance |
MΩ/50V |
>5000 |
|
Protection class |
|
IP67;IP68 |
|
Load cell material |
|
Alloy steel |
|
Cable length |
m |
16 |
|
Cable outer caliber |
mm |
Φ5 |
|
Features
lBridge type double shear beam, unique floating bearing structure
l Self-resetting , good side force resistance and shock resistance
l Moisture-proof sealed , ideal for hostile environment
l Simple to install , easy to use , good interchangeability
Application

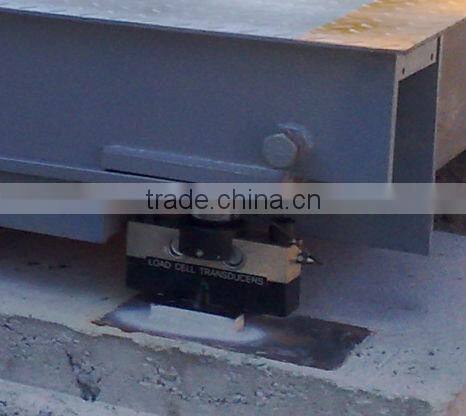

truck scales,rail scales,bin and hopper scales,etc.
