Home > Electrical & Electronics > Sensor > Pressure Sensor > Alloy Stell Double Ended Shaer Beam Force Load Sensor

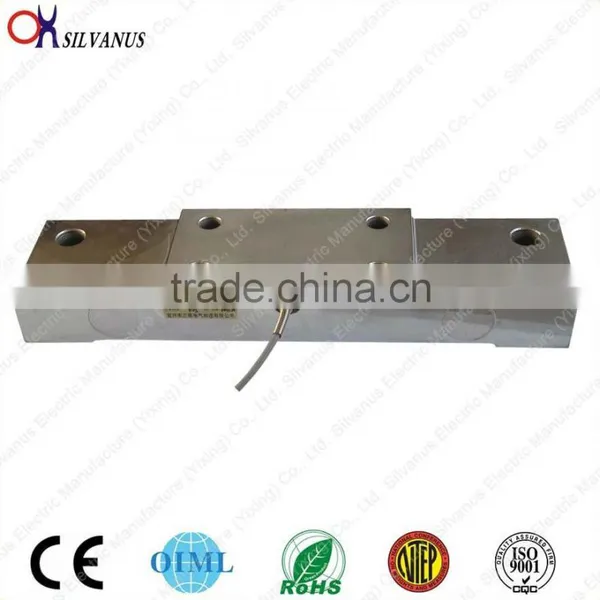

Alloy Stell Double Ended Shaer Beam Force Load Sensor

Name: Alloy Stell Double Ended Shaer Beam Force Load Sensor
Brand: SILVANUS
SKU: 110202767
Availability: InStock

Alloy Stell Double Ended Shaer Beam Force Load Sensor thumbnail-1

Alloy Stell Double Ended Shaer Beam Force Load Sensor photo-1

US$ 99 - 180 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

QSJ

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number QSJ

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Double Ended Shear Beam Load Cell (QSJ)(1.5~40t)

Load Cell (QSJ) Features

1.Bridge type double shear beam, unique floating bearing structure

2.Self-resetting , good side force resistance and shock resistance

3.Moisture-proof sealed , ideal for hostile environment

4.Simple to install , easy to use , good interchangeability

Load Cell (QSJ) Application

truck scales,rail scales,bin and hopper scales,etc

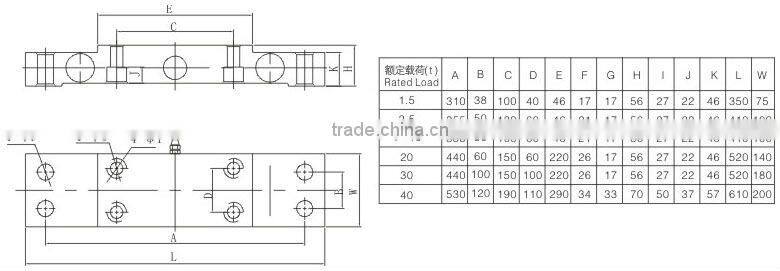

Load Cell (QSJ) Dimensions(mm)

Load Cell (QSJ) Specifications :

Emax(Max. capacity)	t	1.5~40
Sensitivity	mV/V	1.5±0.002
Accuracy class		D1
Maximum number of verification intervals	nmax	1000
Minimum load cell verification interval	Vmin	Emax/2000
Combined error	%F.S	≤±0.05
Creep	%F.S/30min	≤±0.05
Temperature effect on sensitivity	%F.S/10°C	≤±0.05
Temperature effect on zero	%F.S/10°C	≤±0.05
Zero balance	%F.S	±1.0
Input resistance	Ω	760±10Ω
Output resistance	Ω	700±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Alloy steel
Cable length	m	1.5
Cable outer caliber	mm	Φ6

Packaging & Delivery

PACKAGE:

Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
