CX-8M Weighing Module Load Cell
CX-8M Load Cell Features
Low and Tory UW weighing module is fully compatible with more;
Low load rating:,50,100,200,300 20 kg;
Stainless steel welded sensor, protection grade IP68
Spherical fittings, always keep the vertical weighing module state;
Support screws, prevent equipment capsize;
Low maintenance is convenient, save downtime time;
Low is suitable for chemical industry, medicine and food ingredients of medium and small capacity reaction kettle weighing control;
When using XBA quality weighing sensor.

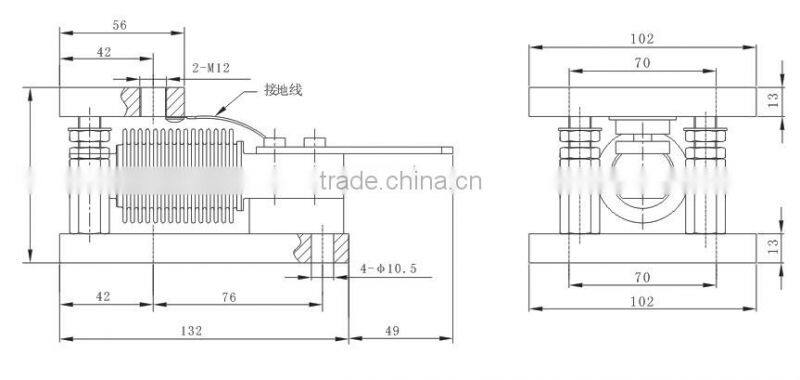

CX-8M Load Cell Dimensions(mm)
CX-8M Load Cell Specifications
| Emax(Max. capacity) | kg | 5~500 | |
| Sensitivity | mV/V | 2.0±0.002 | |
| Accuracy class | C2 | C3 | |
| Maximum number of verification intervals | nmax | 2000 | 3000 |
| Minimum load cell verification interval | Vmin | Emax/5000 | Emax/10000 |
| Combined error | %F.S | ≤±0.030 | ≤±0.020 |
| Creep | %F.S/30min | ≤±0.024 | ≤±0.016 |
| Temperature effect on sensitivity | %F.S/10°C | ≤±0.017 | ≤±0.011 |
| Temperature effect on zero | %F.S/10°C | ≤±0.023 | ≤±0.015 |
| Zero balance | %F.S | ±1.0 | |
| Input resistance | Ω | 380±10Ω | |
| Output resistance | Ω | 352±3Ω | |
| Service temperature range | °C | -30~+70 | |
| Safe overload | %F.S | 150 | |
| Ultimate overload | %F.S | 250 | |
| Recommended excitation voltage | V DC | 5~15 | |
| Insulation resistance | MΩ/50V | ≥ 5000 | |
| Protection class | IP67/IP68 | ||
| Load cell material | Alloy steel / Stainless steel | ||
| Cable Size | 3m(0.5~2t)/4m(3t)/5m(5t)/6m(10t) /10m(20t~25) | ||
| Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow] | |||
Packaging & Delivery
DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
