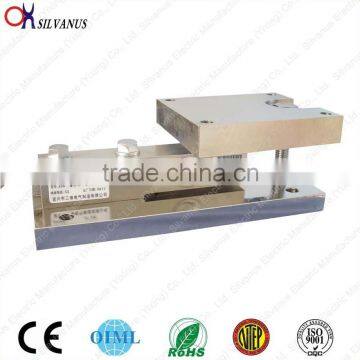

Silo Weighing System

Name: Silo Weighing System
Brand: SILVANUS
SKU: 110201957
Availability: InStock

US$ 60 - 120 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

CX-1M

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number CX-1M

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

CX-1M Silo Weighing System

CX-1M Silo Weighing System Features

Low and Tory FW weighing module is fully compatible with more;
Low load rating: 500 kg to 20000 kg;
Unique structure, can be easily installed on all kinds of tank;
Low three roof structure (stationary, half floating, floating type)
Can eliminate tank weighing error due to heat from the cold;
Support screws, prevent equipment capsize;
Installation is simple, rapid andEasy maintenance, saving maintenance downtime;
Low is suitable for the tank weighing batching process control;
When using XBA quality weighing sensor.

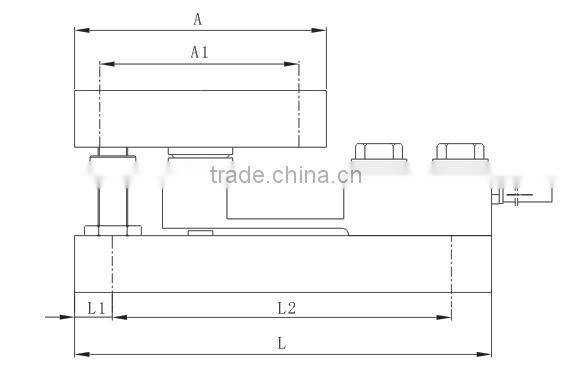

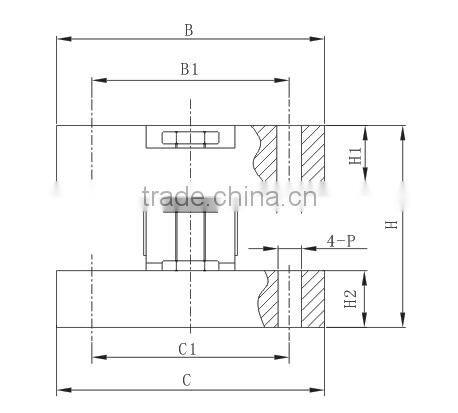

CX-1M Silo Weighing System Dimensions(mm)

CX-1M Load Cell Specifications

Emax(Max. capacity)	t	0.5~20
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	352±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	250
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	≥ 5000
Protection class		IP67/IP68
Load cell material		Alloy steel / Stainless steel
Cable Size	3m(0.5~2t)/4m(3t)/5m(5t)/6m(10t) /10m(20t~20)
Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow]

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.

LETTER OF PATENT:

Transportation	Routine
By car	3 hours from Shanghai to Yixing
By high speed railway	2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company.
