Home > Electrical & Electronics > Sensor > Pressure Sensor > Popular Chinese Tank & Silo Load Cell Modules CNH-2M

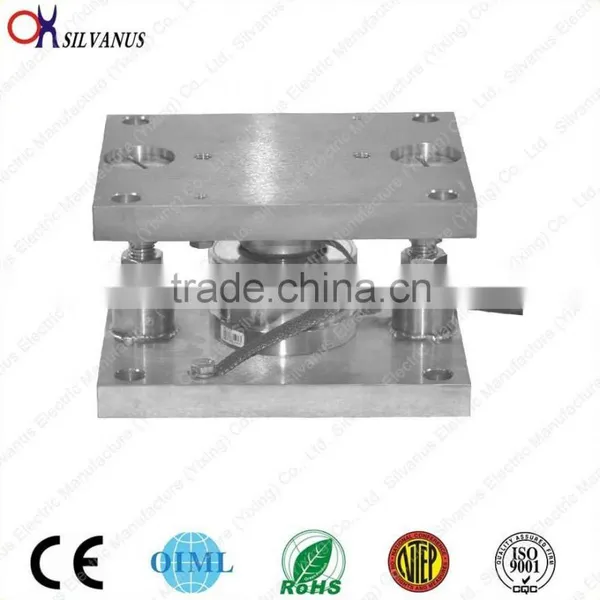

Popular Chinese Tank & Silo Load Cell Modules CNH-2M

Name: Popular Chinese Tank & Silo Load Cell Modules CNH-2M
Brand: SILVANUS
SKU: 110202065
Availability: InStock

Popular Chinese Tank & Silo Load Cell Modules CNH-2M thumbnail-1

Popular Chinese Tank & Silo Load Cell Modules CNH-2M photo-1

US$ 130 - 260 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

CNH-2M

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number CNH-2M

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

CNH-2M Weighing Module Load Cell

CNH-2M Load Cell Features

Low load rating: 0.5 ~ 500 t;
Using large arc load, power transmission of high precision, good repeatability;
Stainless steel or argon arc welding seal sensors, protection grade IP68;
Installation is simple, rapid andEasy maintenance, saving maintenance downtime;
Suitable for harsh environments, hopper scale, material tank scale, level scale and load weighing system
Low ZSF type weighing sensor is high.

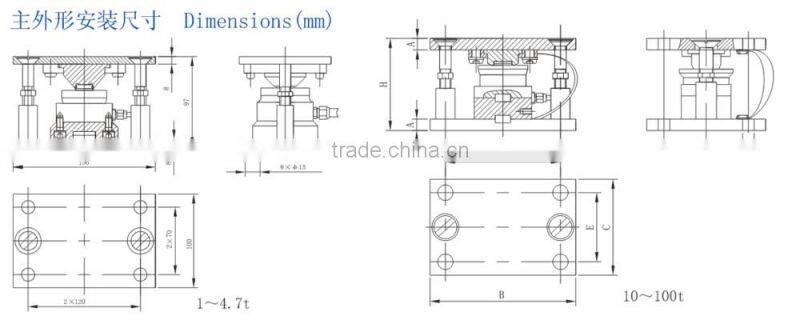

CNH-2M Load Cell Dimensions(mm)

CNH-2M Load Cell Specifications

Emax(Max. capacity)	t	1~470
Sensitivity	mV/V	2.85±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	1440±30Ω ;4450±30Ω
Output resistance	Ω	1400±3Ω ; 4010±3Ω
Service temperature range	°C	-30~+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5~15
Insulation resistance	MΩ/50V	≥ 5000
Protection class		IP67/IP68
Load cell material		Alloy steel / Stainless steel
Cable Size	3m
Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow]

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
