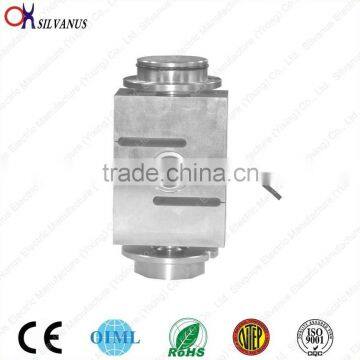

Loading Assembly parking sensor for truck CS-5J

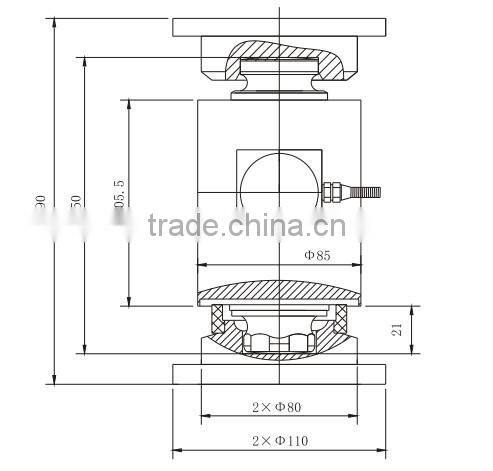

Loading Assembly CS-5J Dimensions(mm)
Assembly CS-5J Specifications :
| Emax(Max. capacity) | t | 0.05-20 | |
| Sensitivity | mV/V | 2.0± 0.002 | |
| Accuracy class | C2 | C3 | |
| Maximum number of verification intervals | nmax | 2000 | 3000 |
| Minimum load cell verification interval | Vmin | Emax/5000 | Emax/10000 |
| Combined error | %F.S | ≤±0.030 | ≤±0.020 |
| Creep | %F.S/30min | ≤±0.024 | ≤±0.016 |
| Temperature effect on sensitivity | %F.S/10°C | ≤±0.017 | ≤±0.011 |
| Temperature effect on zero | %F.S/10°C | ≤±0.023 | ≤±0.015 |
| Zero balance | %F.S | ±1.0 | |
| Input resistance | Ω | 380 10Ω | |
| Output resistance | Ω | 352± 3Ω | |
| Service temperature range | °C | -30~+70 | |
| Safe overload | %F.S | 120 | |
| Ultimate overload | %F.S | 200 | |
| Recommended excitation voltage | V DC | 5…15 | |
| Insulation resistance | MΩ/50V | ≥ 5000 | |
| Protection class | IP67/IP68 | ||
| Load cell material | Alloy steel / Stainless steel | ||
| Cable Size | 3m | ||
| Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow] | |||
Packaging & Delivery:
PACKAGE:
Delivery
Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
