Home > Electrical & Electronics > Sensor > Pressure Sensor > CQ-3M Chinese Weighing Module Load Cell Best Selling Sensor Elevator Weight Sensor

CQ-3M Chinese Weighing Module Load Cell Best Selling Sensor Elevator Weight Sensor

Name: CQ-3M Chinese Weighing Module Load Cell Best Selling Sensor Elevator Weight Sensor
Brand: SILVANUS
SKU: 110202033
Availability: InStock

CQ-3M Chinese Weighing Module Load Cell Best Selling Sensor Elevator Weight Sensor thumbnail-1

CQ-3M Chinese Weighing Module Load Cell Best Selling Sensor Elevator Weight Sensor photo-1

US$ 10 - 49 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SILVANUS

Model Number:

CQ-3M

Contact Supplier Request Quote Chat Now

Silvanus Electric Manufacture (Yixing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SILVANUS

Model Number CQ-3M

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

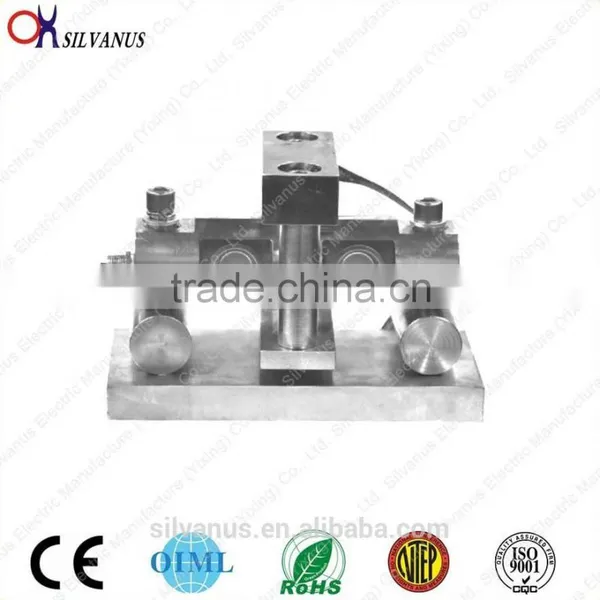

CQ-3M Weighing Module Load Cell

CQ-3M Load Cell Features

With double circular arc surface load;

Has the best force transmission performance;

Has the very good overcome level impact performance;

Simple maintenance, easy to change;

Truck scale, rail weighbridge, platform scale, hopper scale, material tank scale, etc all kinds of weighing force measurement and control system

Using QSB quality weighing sensor

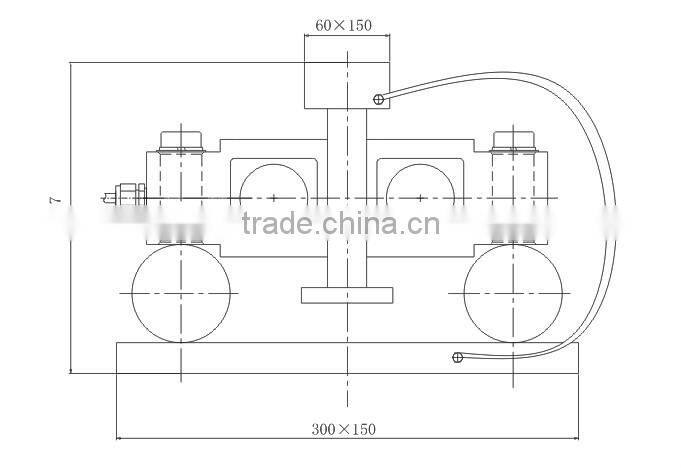

CQ-3M Load Cell Dimensions(mm)

CQ-1M Load Cell Specifications

Emax(Max. capacity)	klb	5~100
Sensitivity	mV/V	3.0±0.003
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	750±10Ω
Output resistance	Ω	702±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	250
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	≥ 5000
Protection class		IP67/IP68
Load cell material		Alloy steel / Stainless steel
Cable Size	3m(0.5~2t)/4m(3t)/5m(5t)/6m(10t) /10m(20t~20)
Cable color code: Exc+[Red] ; Exc-[Black] ; Sig+[Green] ; Sig-[White] ; Shield[yellow]
