Specifications
MA1.3s is one of a range of power amplifiers that have been designed to combine reliability and high power with sonic excellencePower amplifier / pro amplifier / professional amplifier / pa amplifier / audio amplifier / pro audio / digital amplifeir / speaker amplifier / pro loudspeaker / pa audio / pro sound amplifier

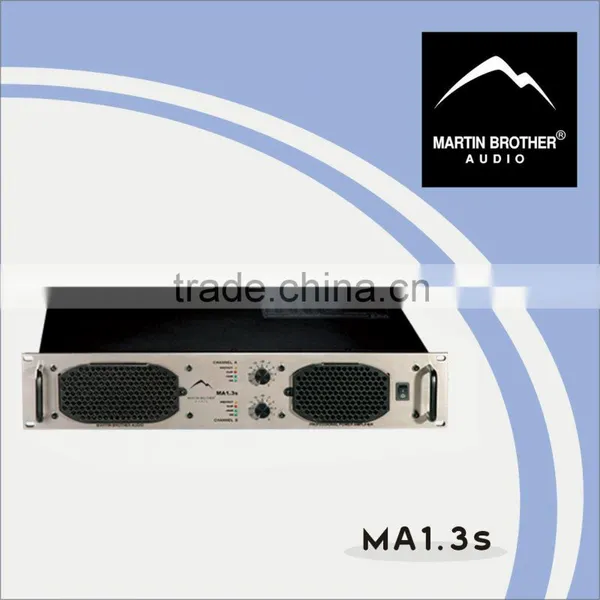

The MA1.3s is one of a range of power amplifiers that have been designed to combine reliability and high power with sonic excellence. The amplifier is characterised by a very high power-to-weight ratio in a lightweight, 2U package. The innovative technology at the heart of the MA1.3s enables it to set new standards in terms of sonic accuracy, impact and clarity.
TECHNICAL SPECIFICATIONS
OUTPUT POWER (EIA AT 1kHz AND 1% THD)
8Ω Stereo Power: 450W;
4Ω Stereo Power: 675W
8Ω Parallel Mono Power: 450W;
4Ω Parallel Mono Power: 675W
16Ω Bridged Mono Power: 900W;
8Ω Bridged Mono Power: 1350W
DISTORTION
THD: <0.05%(10% of full power); IMD: <0.1%( 60Hz/7KHz,10% of full power )
FREQUENCY RESPONSE: 20Hz-20KHz
PSC(PHASE SHIFT CHARACTERISTICS):±15°
DAMPLING FACTOR: >800(8Ω 100Hz)
CHANNEL SEPARATION @ 10kHz: >75dB
S/N RATIO: >108dB(A weighted)
GAIN: 39±0.5dB
CHANNEL GAIN DIFFERENCE0.25dB
INPUT SENSITIVITY: 1V, SLEW RATE:>100V/μS
IMPUT RESISTANCE: 20K ohms balanced, 10K ohms unbalanced
DIMENTSION: (W)483mm * (D)452mm * (H)88mm
WEIGHT: 20kg
POWEE SUPPLY: AC 220V50Hz-60Hz/1500VA
AMBIENT TEMPERATURE: Operating Temperature: -10-40
Storage Temperature: -25-80
AMBIENT HUMIDITY: ≤90%
