OCS electronic overhead traveling scale
Introduction:

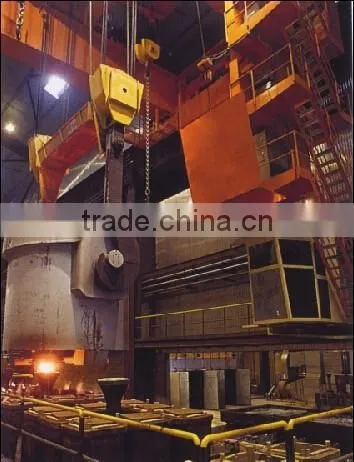

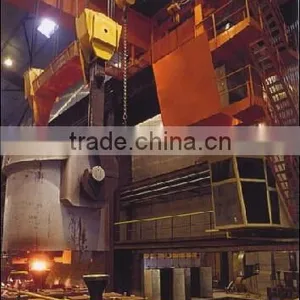

OCS series electronic vehicle scale is measuring device on the road driving to achieve the weighing in hoisting process, mainly use in occasions, such as difficulty in using conventional crane scales, typically are: high temperature environment,such as large-tonnage steel metering; driving hook-free occasion: such as running grab; lifting tonnage is large. The scale sure the security and economic.

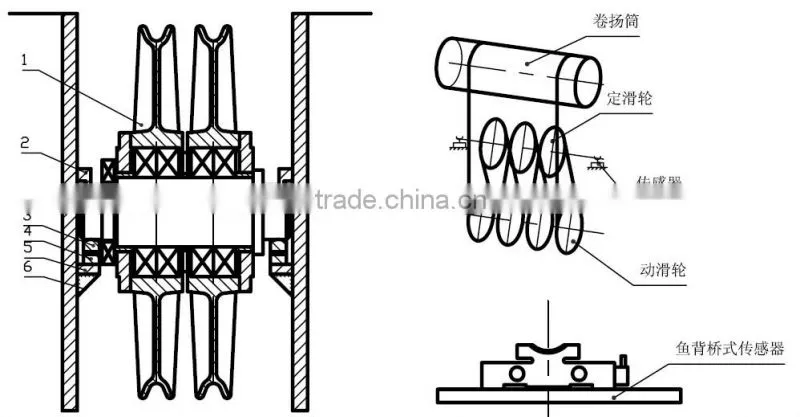

Both ends of the fixed pulley shaft install bearing load "fish bridge"

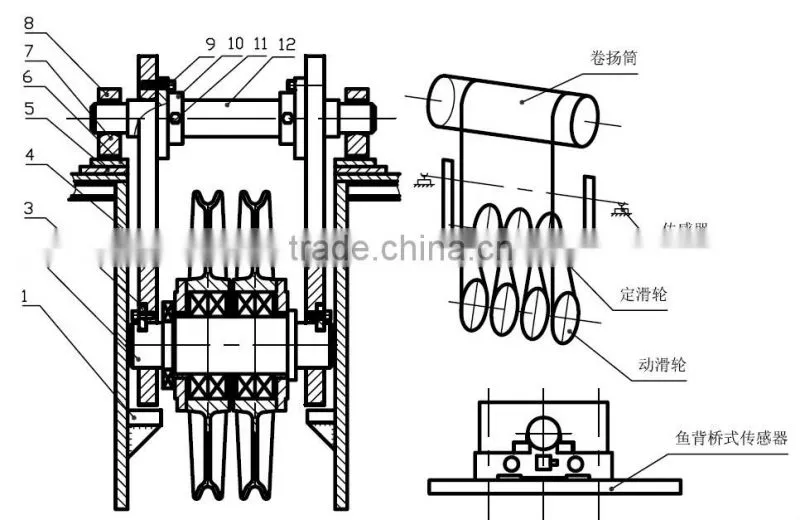

Both ends of the fixed pulley shaft use plate load "fish bridge"
Fixed pulley measuring vehicle scale
1. By measuring force indirectly measure the weight lifting pulley
2. Easy to install and driving structural change less, good security
3. High precision, single measure 0.5%-1%, cumulative is over 0.5%
4. Optional wire rope compensation to improve the accuracy (0.5%)
5. High temperature resistant, apply to ladle measuring
6. Indicators with specially designed, can avoid the vehicular movement instability effectively
7. Optional wired or wireless data transmission
Features
1. various
2.Renovation under fixed pulley shaft renovation, it is dominant and traditional product of our company
3. Main and auxiliary hook can be measured at same time 4. Wireless transmitting and receiving system (up to 12 to 1)
Specification
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
Transportation |
Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
