Double Ended Shear Beam High temperature Load Cell QSE-BH (50t~200t)
Application range
Our Hi-temperature load cell is widely used in metallurgy , chemical , pertroleum drilling,nuclear power,and space flight such rough environments for weighing and measuring.E.G.:ladle measuring, tensional measuring in petroleum drillin . gravity measuring of rocket emission, and hi-temperature material measuring of nuclear power drill.
Application
Our Hi-temperature load cell is equal to the imported products in any aspects.It can keep the long-term reliability and precision for weighing and measuring on tunder the bad circumstances of long hi-temperature radiating.environment gradual or fransient changing etc.
Customer service
Yixing Silvanus Electric Manufacture Co., Ltd. has introduced into the high-temperature transducer technology from the USA and Japan, and developed the load cell which can resist the 250℃ high temperature firstly. This kind of load cell has been widely used in metallurgy, so we have accumulated abundant practice experience in the high-temperature weighing field, and are able to supply various kinds of load cells in a full range of models for every client.
Technology and technics
Use imported strain gauge whose operating temperature range is -196℃~+250℃
Use imported glues and protection membrane whose operating temperature range is -196℃~+250℃
Use the soldering tin whose melting point temperature range is -305℃~+365℃
Use 250℃ high-temperature down-leads and connecting terminal.
Use high-temperature resistant cables and connectors.
Use the special technics of gluing the strain gauge and solidify.
The high-temperature load cell has a sign "-H" in thel models.
Specifications:
Emax(Max. capacity):10~50t
Sensitivity:1.0±0.002 mV/V
Accuracy:0.1%F.S
Operating temperature range:-40℃~+250℃
Zero compensatory temperature range:0℃~+200℃
Effect on Zero temperature:±0.1%F.S/10℃
Effect on output sensifivity:±0.1%F.S/10℃
Input resistance:730±20Ω
Output resistance:702±3Ω
Load cell material:Alloy steel
Cable outer caliber:Φ6 mm
Cable length:12m

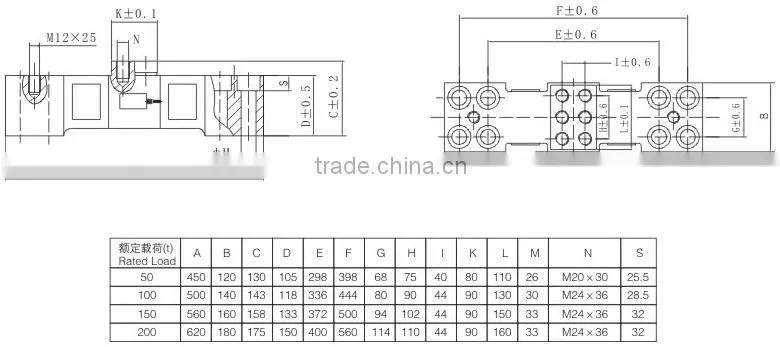

Load Cell QSE-B Dimensions(mm)
Load Cell QSE-B Specifications
Emax(Max. capacity) | t | 50~200 |
Sensitivity | mV/V | 1.0±0.002 |
Accuracy class | D1 | |
Maximum number of verification intervals | nmax | 1000 |
Minimum load cell verification interval | Vmin | Emax/3000 |
Combined error | %F.S | ≤±0.05 |
Creep | %F.S/30min | ≤±0.05 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.05 |
Temperature effect on zero | %F.S/10°C | ≤±0.04 |
Zero balance | %F.S | ±1.0 |
Input resistance | Ω | 730±10Ω |
Output resistance | Ω | 703±5Ω |
Service temperature range | °C | -30...+70 |
Safe overload | %F.S | 150 |
Ultimate overload | %F.S | 300 |
Recommended excitation voltage | V | 5…15 |
Insulation resistance | MΩ/50V | >5000 |
Protection class | IP67 | |
Load cell material | Alloy steel | |
Cable length | m | 12m |
Cable outer caliber | mm | Φ5 |
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
