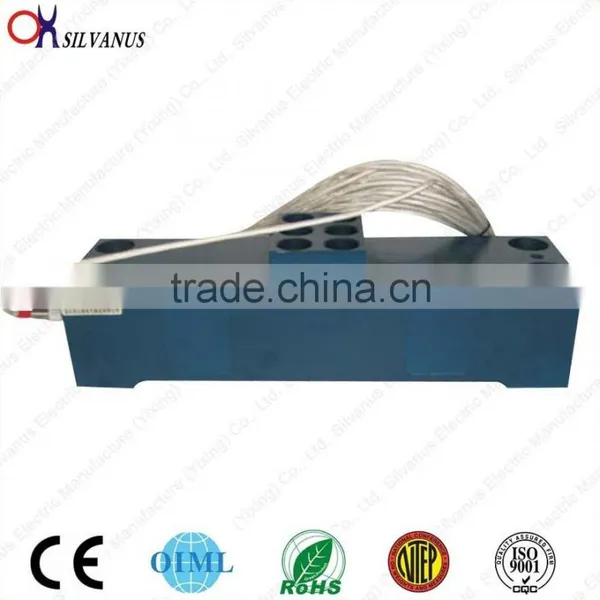

Help CenterDouble Ended Shear Beam High Temperature Load Cell
Related Products
-
High Temperature QSA Load Cell (QSA)(40t~50t)US$ 75 - 150MOQ: 1 Piece -
High Temperature Sensor for Weighing Scales(XBA)(0.3~25t)US$ 65 - 179MOQ: 25 Pieces
-
High Temperature LoadCell for Bench ScaleUS$ 150 - 800MOQ: 50 Sets
-
Double Ended Shear Beam High Temperature Load Cells(QSD-H)(10t~30t)US$ 28 - 58MOQ: 1 Piece
-
Double Ended Shear Beam High Temperature Load Cell for Truck ScaleUS$ 99 - 458MOQ: 5 Pieces
Double Ended Shear Beam Load Cell high temperature load cell(QSE-CH)(50t~200t)
Application range
Our Hi-temperature load cell is widely used in metallurgy , chemical , pertroleum drilling,nuclear power,and space flight such rough environments for weighing and measuring.E.G.:ladle measuring, tensional measuring in petroleum drillin . gravity measuring of rocket emission, and hi-temperature material measuring of nuclear power drill.
Application
Our Hi-temperature load cell is equal to the imported products in any aspects.It can keep the long-term reliability and precision for weighing and measuring on tunder the bad circumstances of long hi-temperature radiating.environment gradual or fransient changing etc.
Customer service
Yixing Silvanus Electric Manufacture Co., Ltd. has introduced into the high-temperature transducer technology from the USA and Japan, and developed the load cell which can resist the 250℃ high temperature firstly. This kind of load cell has been widely used in metallurgy, so we have accumulated abundant practice experience in the high-temperature weighing field, and are able to supply various kinds of load cells in a full range of models for every client.
Technology and technics
Use imported strain gauge whose operating temperature range is -196℃~+250℃
Use imported glues and protection membrane whose operating temperature range is -196℃~+250℃
Use the soldering tin whose melting point temperature range is -305℃~+365℃
Use 250℃ high-temperature down-leads and connecting terminal.
Use high-temperature resistant cables and connectors.
Use the special technics of gluing the strain gauge and solidify.
The high-temperature load cell has a sign "-H" in thel models.
high temperature load cell Specifications:
Emax(Max. capacity):10~50t
Sensitivity:1.0±0.002 mV/V
Accuracy:0.1%F.S
Operating temperature range:-40℃~+250℃
Zero compensatory temperature range:0℃~+200℃
Effect on Zero temperature:±0.1%F.S/10℃
Effect on output sensifivity:±0.1%F.S/10℃
Input resistance:730±20Ω
Output resistance:702±3Ω
Load cell material:Alloy steel
Cable outer caliber:Φ6 mm
Cable length:12m

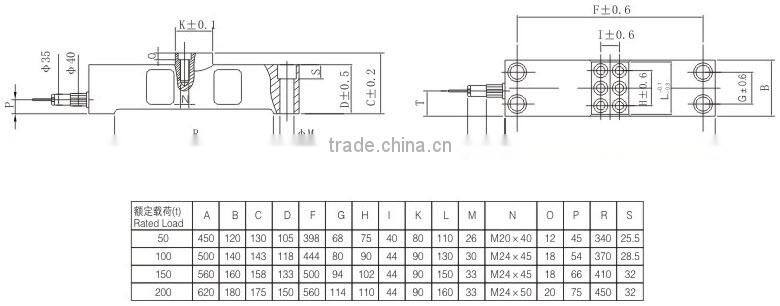

Dimensions(mm) high temperature load cell
high temperature load cell Specifications
Emax(Max. capacity) |
t |
50~200 |
Sensitivity |
mV/V |
1.0±0.002 |
Accuracy class |
D1 |
|
Maximum number of verification intervals |
nmax |
1000 |
Minimum load cell verification interval |
Vmin |
Emax/3000 |
Combined error |
%F.S |
≤±0.05 |
Creep |
%F.S/30min |
≤±0.05 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.05 |
Temperature effect on zero |
%F.S/10°C |
≤±0.04 |
Zero balance |
%F.S |
±1.0 |
Input resistance |
Ω |
730±10Ω |
Output resistance |
Ω |
703±5Ω |
Service temperature range |
°C |
-30...+70 |
Safe overload |
%F.S |
150 |
Ultimate overload |
%F.S |
300 |
Recommended excitation voltage |
V |
5…15 |
Insulation resistance |
MΩ/50V |
>5000 |
Protection class |
IP67 |
|
Load cell material |
Alloy steel |
|
Cable length |
m |
12m |
Cable outer caliber |
mm |
Φ5 |
