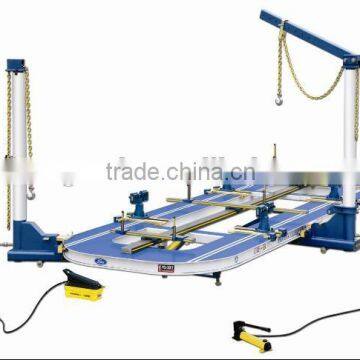

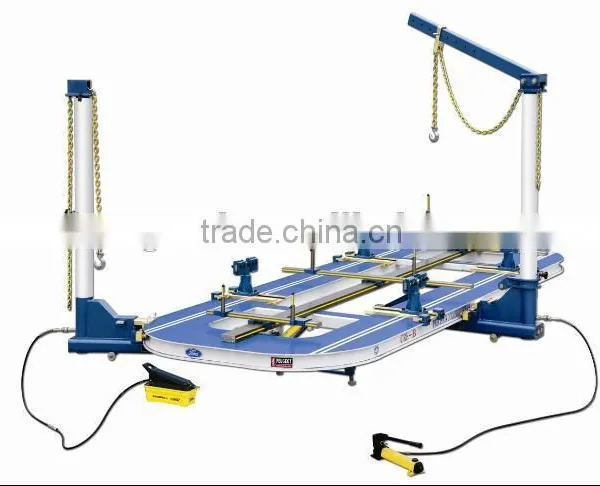

Car body straightening bench-H800 series

1. high strength platform is made of high quality manganese steel,

2. Anchoring system adjustable to any working height

3. USA pump Enerpac

4.10ton pulling tower with overhead arm

5.Multi-point pulling system, provides many pulling variations

6 Secondary air jack

7.NW: 3385KG, GW: 3500KG

8. 4 UNITS /40' full container

Specs:

-Platform length: 6200mm

-Platform width:2200mm

-Platform height:300-1480mm

-Max.pulling: 10 ton

-Elevation way:Parallel

-Max lifting weight:3000kg

-Hydraylic pressure:70mpa

-Pneumatic pressure:0.8mpa
