Home > Products > Smoke detectors > Conventional Photoelectric Optical Smoke Detector

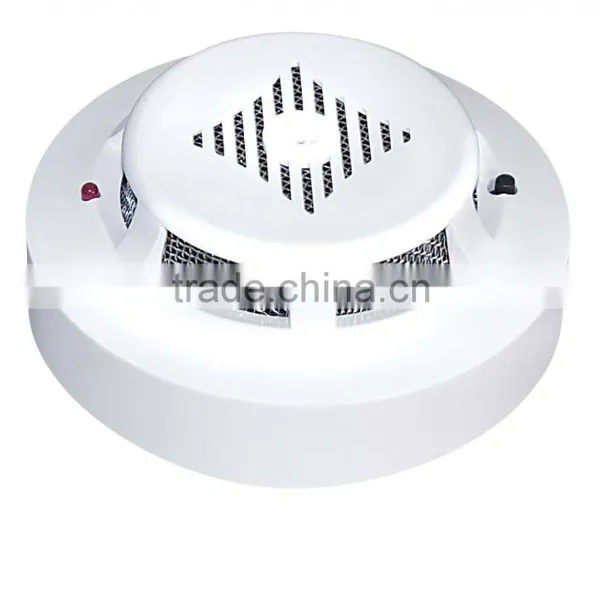

Conventional Photoelectric Optical Smoke Detector
- 100000 Piece / Pieces per Month
- Odessa
- T/T
- 2023 China DC 48V Wired Smoke Fire Detector With Relay Output For Fire Alarm System
- 48V smoke detector 2023 China DC 48V Conventional Wired Optic Smoke Detector With Relay Output For Fire Alarm System
- OEM KF94/N95/KN95/surgical mask/KIDS face masks/adult face masks
- 2022 China DC 48V Conventional Wired Optic Smoke Detector With Relay Output For Fire Alarm System
- Siemens LME21.130C2 Control Box Siemens AG Brand New
- Siemens AG SQM48.497A9 Actuator LMV 5x System 20Nm IP54 Brand New
Product Details
Place of Origin: | Ukraine | Brand Name: | ARTON | Model Number: | SPD-3.10M |
Product Description
Specifications
1. Dimension: 85 x 37 mm2. Weight: 150 g
3. Power: 10-30 V
4. Current: 95 micro A
5. Indication: Red LED
ARTON based in Chernivtsi, Ukraine began over 13 years ago. Our founder and CEO has an engineering background and strong working knowledge of plastic moulding, electrical and optical devices construction. He saw the perspective in the security industry by the rapid growth. ARTON under his leadership has grown from its small beginnings to become the leading brand in its field. ARTON designs, manufactures and markets fire alarm and security devices (conventional photoelectric smoke, heat, combined detectors, manual call points, fire alarm control panels, intruder detectors, accessories etc.).
Product Types:
1. Fire Detectors
2. Fire Alarm Control Panels
3. Accessories, etc.
Conventional Photoelectric Optical Smoke Detector:
SPD-3.10 M
- Test button
- Red LED indicates standby and alarm modes
Standby current consumption | 95 μA max | |
Supply voltage range
| 2-wire | 10 – 30 V |
4-wire | 12±1,2 V | |
Dimensions | Ø 85×37 mm | |
Weight | 150 g |
Range of base options to obtain various functions:
Base model | Number of contacts | Remote output | Presence of relays | Relay’s contacts | Wiring |
B01 | 4 | - | - | - | 2-wire |
B1 | 6 | + | - | - | 2-wire |
B2 | 7 | - | 1 | NC | 4-wire |
B3 | 7 | - | 1 | NO | 4-wire |
B4 | 8 | + | 1 | NC | 4-wire |
B5 | 8 | + | 1 | NO | 4-wire |
B6* | 8 | - | 2 | NO, NC | 4-wire |
B7* | 8 | - | 2 | NO, NO | 4-wire |
B8* | 9 | + | 2 | NO, NC | 4-wire |
B9* | 10 | + | 2 | NO, NO | 4-wire |
* EOL base
Place of Origin | Ukraine |
Brand Name | ARTON |
Model Number | SPD-3.10M |
Dimensions | diam. 85*37 mm |
Weight | 150 g |
Power voltage | 10-30 V |
Standby current consumption | 95 microA |
Indication | Red LED |
Modes | Standby and alarm modes |
Minimum Order Quantity | 500 Piece/Pieces |
Port | Odessa |
Packaging Details | 25 pcs in carton |
Delivery Time | 2-4 weeks |
Payment Terms | L/C,T/T |
Supply Ability | 100000 Piece/Pieces per Month |
