Home > Security & Protection > Alarm & Security Systems > Alarm Host > Conventional 8 Zone Fire Alarm Control Panel

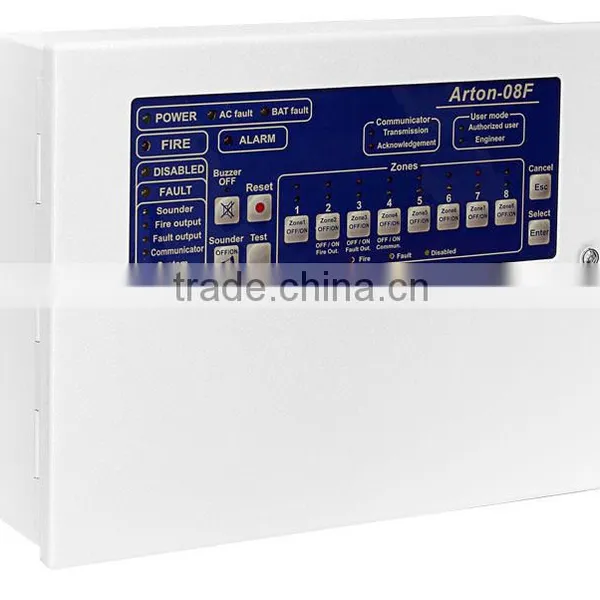

Conventional 8 Zone Fire Alarm Control Panel
Negotiable
MOQ: 300 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Ukraine
Brand Name:
ARTON
Model Number:
ARTON-08F
Payment & Shipping
Payment Methods:
Port of Shipment:
Odessa
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Ukraine
Brand Name
ARTON
Model Number
ARTON-08F
ARTON based in Chernivtsi, Ukraine began over 13 years ago. Our founder and CEO has an engineering background and strong working knowledge of plastic moulding, electrical and optical devices construction. He saw the perspective in the security industry by the rapid growth. ARTON under his leadership has grown from its small beginnings to become the leading brand in its field. ARTON designs, manufactures and markets fire alarm and security devices (conventional photoelectric smoke, heat, combined detectors, manual call points, fire alarm control panels, intruder detectors, accessories etc.).
Product Types:
1. Fire Detectors
2. Fire Alarm Control Panels
3. Accessories, etc.
Conventional 8 Zone Fire Alarm Control Panel:
Conventional 16zone fire alarm control panel

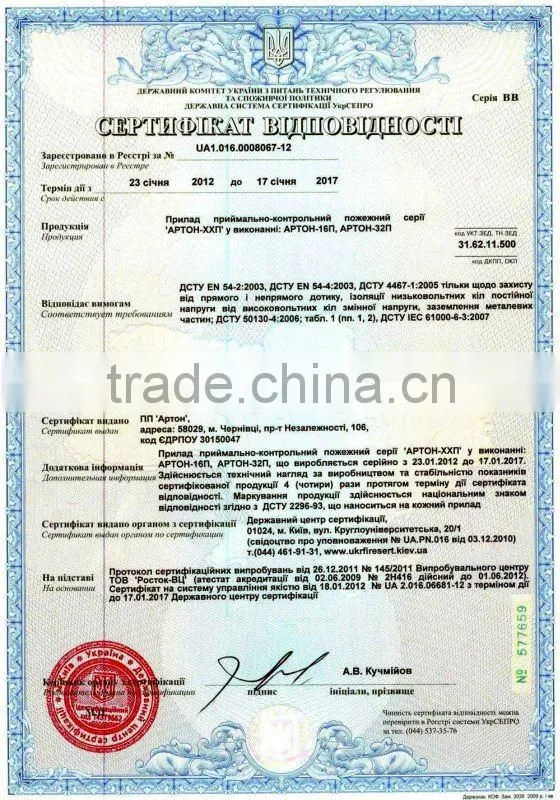

EN54-2:2003
EN54-4:2003
Designed for centralized and stand-alone protection of various applications against fires by controlling statuses of up to 32 fire alarm loops (zones).
- The panel has the module structure enabling to develop various performances on customer’s demand.
- The panel incorporates:
- Main control PCB with standard outputs: “Fault”, “Light”, “Sound” and “Norm”, “Alarm” auxiliary outputs
- Keypad and indicators
- Power supply PCB
- Two (ARTON-32F) 16 loop input/output units with 8 programmable outputs in each of them
- BR4-8 blocking relay (8 signaling relays)
- BSKT-2 GSM communicator (according to order conditions)
- BSKM-2 phone communicator (according to order conditions)
- Remote output units with 24, 48, 72, 96 channels (according to order conditions)
- BSPC-2 computer coupler (according to order conditions)
- CAN2.0B high-speed industrial interface implements unit-to-unit communications.
- Various AL process algorithms enabling to set processing parameters individually for each loop:
- AL type: active, passive, combined
- Recording the “Fire” status when: one detector/two detectors/one detector with verification triggers
- Reset time
- Expectation time of readiness after resetting
- Expectation time of repeated triggering in verification mode
- Threshold current of determination of detectors’ activation in AL (separately for passive and active detectors)
- Test mode can be set individually for each AL, in which alarm or emergency AL statuses will not be transmitted to a central monitoring station;
- All outputs of the panel have continuity control and issue messages about open-circuits or short-circuits in load circuit and can commutate currents up to 300 mA;
- Various algorithms of outputs’ operation enabling users to set the following parameters individually for each output:
- Inversion
- Active status time
- Passive status mode (dynamic – flashing, with individual setting of enablement/ disablement -periods, or quiescent – steady state)
- Active status mode (dynamic- flashing, with individual setting of enablement/ disablement periods, or quiescent – steady state)
- Allowing enabling at short-circuit
- Allowing enabling at open-circuit
- Time of transitional processes in load circuit
- The test mode can be set individually for each output, the output status will not be transmitted to a central monitoring station and the output will not be enabled physically
- Keypad and indicators block contains 4 lines x 40 characters LCD indicator enabling to display sufficient amount of necessary information, keypad with additional functional buttons, pop-up menu with the most usable functions that substantially facilitates the user’s work with the panel.
- Individual name can be entered for each zone and each output up to 16 characters long which can be used displaying information about the object on the indicator.
- The panel logs and records system events to energy-independent memory in tie with real time clocks, and also their following displaying on a LCD indicator or on interface. The log is counted on 60000 event records.
- Using the BSPC-2 you can review the current configuration and program (configurate) the panel from the inbuilt keypad or from computer.
Specification:
| Place of Origin | Ukraine |
| Brand Name | ARTON |
| Model Number | ARTON-8F |
| Number of zones | 8 |
| Type | Conventional |
| Average lifetime | 10 years min |
| Dimensions | 200x300x80 mm |
| Weight | 2,5 kg |
| Minimum Order Quantity | 300 Piece/Pieces |
| Port | Odessa |
| Packaging Details | Packed in Carton. |
| Delivery Time | 2-4 weeks |
| Payment Terms | L/C,T/T,PayPal |
| Supply Ability | 100000 Piece/Pieces per Month |
