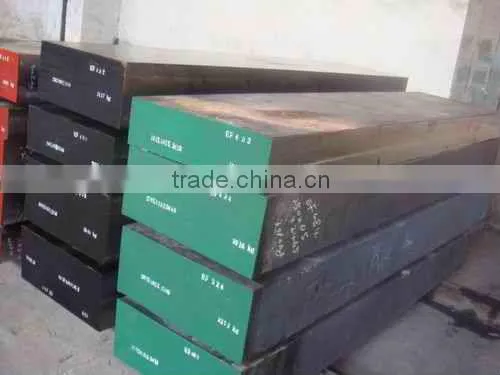

DIN1.2510, AISI O1 Steel Plate
Negotiable
MOQ: 20 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard:
AISI, DIN, GB, JIS
Grade:
AISI O1/ DIN1.2510/ 9CrWMn/ JIS SKS3
Thickness:
20~300mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard
AISI, DIN, GB, JIS
Grade
AISI O1/ DIN1.2510/ 9CrWMn/ JIS SKS3
Thickness
20~300mm
Place of Origin
Guangdong, China
Brand Name
Circle Four
Model Number
AISI O1/ DIN1.2510/ 9CrWMn/ JIS SKS3
Type
Steel Plate
Technique
Hot Rolled
Surface Treatment
Other, Black/Turned/Milled/Ground
Application
Other, Mold Making
Special Use
High-strength Steel Plate
Width
205~810mm
Length
2000~5000mm
Specifications
O1 steel plate1. UT test grade: SEP 1921-84 Class C/c
2. Payment terms:TT/LC at sight
3. Best price
O1 steel plate , 1.2510 Steel
1. Specification:
| Material: | AISI O1/ DIN1.2510/ 9CrWMn/ JIS SKS3 |
| thickness: | 20-300mm |
| width: | 205-810mm |
| Length: | 2000~5000mm Straightness: 3mm/M max |
| Rounds: | Diameter 20-400mm, Length 2000-5800mm |
| Process: | EAF + VD + LAF + ESR (optional) |
| Test: | Ultrasonic test according to SEP 1921-84 G3 C/c |
| Delivery condition: | Hot rolled/forged +Rough machined (black surface after Q/T) or Turned (optional) |
| Delivery Time: | 7-15 days |
| Heat treatment: | Annealed / Quenched + tempered |
| Payment terms: | 30% TT in advance; 70% against shipping documents or irrevocable LC at sight |
| Application: | Cutting and punching tools, shear knives, thread rolling tools, measuring instruments, platinum using molds |
2. Chemical composition:
|
Grade |
C |
Si |
Mn |
Cr |
W |
V |
P |
S |
AISI |
O1 |
0.85~1.00 |
0.10~0.50 |
1.00~1.40 |
0.40~0.60 |
0.40~0.60 |
≤0.03 |
≤0.03 |
≤0.03 |
DIN |
1.2510 |
0.90~1.05 |
0.15~0.35 |
1.00~1.20 |
0.50~0.70 |
0.50~0.70 |
0.05~0.15 |
≤0.03 |
≤0.03 |
GB |
9CrWMn |
0.85~0.95 |
≤0.40 |
0.90-1.20 |
0.50~0.80 |
0.50~0.80
|
---- |
≤0.03 |
≤0.03 |
3. Compared grades(based on usage):
Chinese |
German |
American |
Japanese |
GB |
DIN |
AISI |
JIS |
9CrWMn |
1.2510 |
O1 |
SKS3 |
