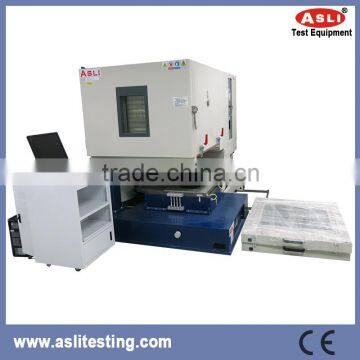

climatic and vibration test system/electrodynamic vibration system
climatic and vibration test system/electrodynamic vibration system Description
|

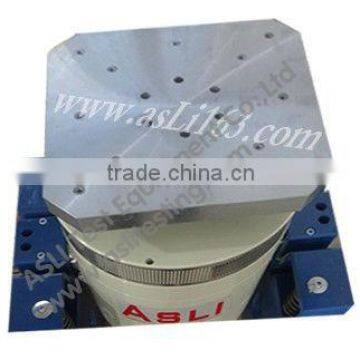

We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support'and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test. High Frequency Vibration Tester widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields. |
climatic and vibration test system/electrodynamic vibration system view
climatic and vibration test system/electrodynamic vibration system Technical Parameters:
Model |
Rated Sine |
Rated Random |
Frequency |
Rated Acceleration (m/s2) |
Rated Speed (m/s) |
Rated Replacement(p-p)mm |
Max. Loading (Kg) |
moving coil (Kg) |
Dimension of |
ES1 |
1000 |
1000 |
3-3500 |
400 |
1.2 |
25 |
70 |
2.5 |
Φ150 |
ES2 |
2000 |
2000 |
3-3500 |
800 |
1.6 |
25 |
70 |
2.5 |
Φ150 |
ES2a |
2000 |
2000 |
3-3500 |
300 |
1.6 |
40 |
70 |
8 |
Φ230 |
ES3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
ES3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
ES6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
ES6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
ES10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
ES20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
ES30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
5l |
450 |
40 |
Φ450 |
ES40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
ES50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
ES60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
ES100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |
ES120 |
120000 |
120000 |
3-2200 |
1000 |
1.8 |
51 |
1100 |
90 |
Φ500 |
ES160 |
160000 |
160000 |
3-2100 |
1000 |
1.8 |
51 |
1500 |
150 |
Φ600 |
ES200 |
200000 |
200000 |
3-2000 |
1000 |
1.8 |
51 |
2500 |
200 |
Φ650 |
ES350 |
350000 |
350000 |
3-1700 |
1000 |
1.8 |
51 |
4500 |
300 |
Φ870 |
|

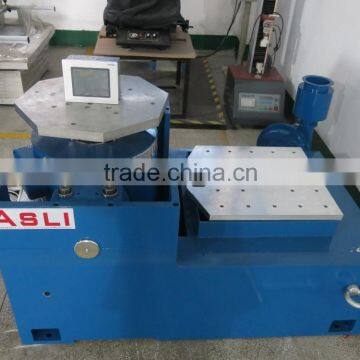

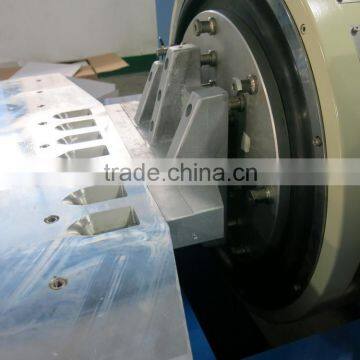

high frequency vibration shaker table Horizontal Stand: of whole machine bench. Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust. Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant. Built-in oil pump, good structure and easy operating |
high frequency vibration shaker table Technical Parameters:
Model |
Bench Size (mm) |
Frequency Range (Hz) |
Weight of Moving Parts (kg) |
LT0303 |
300×300×22 |
5-1000 |
6.6 |
LT0404 |
400×400×22 |
5-l000 |
11.2 |
LT0505 |
500×500×25 |
5-1000 |
19.3 |
LT0606 |
600×600×25 |
5-1000 |
27.5 |
LT0707 |
700×700×25 |
5-800 |
36.8 |
LT0808 |
800×800×30 |
5-1000 |
57.7 |
LT 1010 |
1000× 1000×30 |
5-1000 |
89.1 |
LT 1212 |
1200× 1200×30 |
5-800 |
126 |
|
high frequency vibration shaker table Vertical Extended-bench: VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship. |
(for technical data pls contact with us)
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
