Closed loop gas sampling system/liquid sampler
- 100 Perch / Perches per Month
- T/T Credit Card
- 1ZD 817 111 A FOR SKODA OCTAVIA A6 (OCT 09-12) Roof with window hole 1ZD817111A
- National Oilwell Varco Brandt P4A0042613-95 CHEMTURA LF DURO RED 21970
- National Oilwell Varco SSW-10 SPARE PARTS KIT 15953
- Koomey 1330-4100 VALVE, 4-WAY, 1" SEL.
- MD TOTCO KEY BOARD ASSY,16 KEY,SPEC.SYS H11062A 10129069-001
- VARCO WASH PIPE, 3"BORE, 7,500 PSI 30123289
Product Details
Application: | Other, Sampling | Place of Origin: | Shanghai, China | Brand Name: | GUANGE |
Model Number: | SSG L |
Product Description

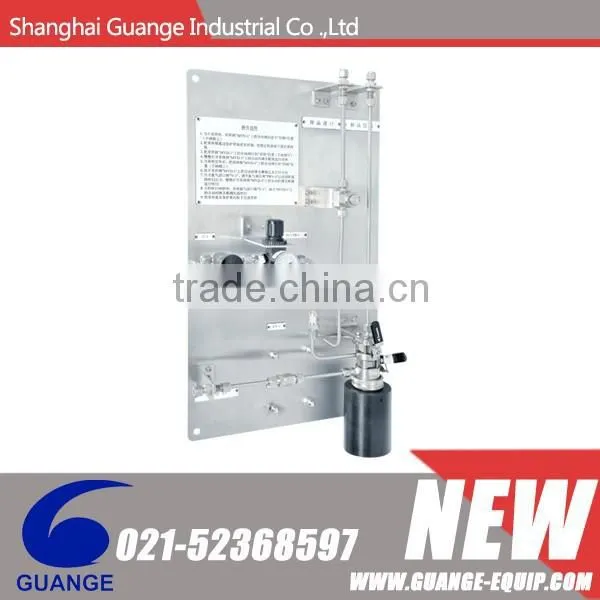

Closed loop gas sampling system /liquid sampler
Application
1.samplers for low pressure liquid.
2.samplers for rust and dangerous liquid
3.sampling in pipe line or at the top of reactive tank on the condition of the low pressure
Feature
1.Sampler needle designed to prevent blocking ,ensure spacer intact seal in leakage environment .
2.Separated location for sampler needle and emitting needle ensure reliable,save discharge channel for gas medium
3.Sampler needle designed to directly demount and fix ensures easily and easily maintenance,unnecessary removal valve and pipe.
4.purge function ensure sampler needle clean and representative sampling
Optional accessory
1.it is necessary to add a cooler ,ensuring safety in gas sampling in high temperature
2.selecting purge function in rust and dangerous environment ,giving an additional safety in gas sampling
3.in order to successfully collect gas sample,Pre-heat is needed when it is under too low temperature or the media is sensitive to the low temperature
4.Add a filter to extend life of equipment
Needle and accessory
1.Needly component designed to equip with two pieces of needle in its head .
the long needle is for sampling ,the short one is for gas vent which is used to release
the gas replaced by liquid or the mixture gas in liquid and vapor
2.The valve shall not be set in vented openings in order to assure fluent exhaust passage .
checkvalve is suggested to fix in vent opening when the equipment is out of operation
so as to prevent accidental gas from returning back to pipe systems.
Gasket for sampler cylinder
1.robber
Rubber has well resilience and mechanical function but easily aged by exposing in scorching sunlight .
it apply to acid,alkaline and non-corrosive medium.
2.silica gel
silica gel has well resilience and mechanical function.it has best thermal -resistant and antioxidation without aging phenomenon ,and it shall not react with majority of chemicals except of fat .
3.polytetrafluoroethylene silica gel
TCS combines the advantages of polytetrafluoroethylene and silica gel. Its thermal -resistant and chemical inertness considered to be the best selection for high temperature sampling.
