Specifications
Stainless steel1.Main application
For plastic moulds with high wear resistance and corrosion resistance repuirements
Quick Details
| Standard: | AISI,DIN,GB,JIS | Grade: | 1.2083/S136/4Cr13/SUS420 | Thickness: | 16-305mm |
| Place of Origin: | China (Mainland) | Brand Name: | Circle Four | Model Number: | Plastic mould steel |
| Type: | Steel Plate | Technique: | Hot Rolled | Surface Treatment: | Black or machined |
| Application: | Mould making | Special Use: | High-strength Steel Plate | Width: | 205-810mm |
| Length: | 2000-5800mm |
Packaging & Delivery
| Packaging Detail: | Raw packing or customer require |
| Delivery Detail: | 3-7days |
Specifications
Stainless steel SUS440/1.2083/S136
Large stock with good price
1.Diameter:16-300mm
2.Thickness:16-400mm
3.Length:2000-5800mm
Detailed Product Description
Stainless steel SUS440/1.2083/S136
1. Steel Grade:
GB |
ASSAB |
AISI |
DIN |
JIS |
4Cr13 |
S136 |
420 |
X40Cr14 (1.2083) |
SUS420 |
2.Reference Size:
Round |
Diameter |
Length |
|
16mm-300mm |
2000mm-5800mm |
||
Steel plate |
Thickness |
Width |
Length |
16-305mm |
205-810mm |
2000mm-5800mm |
|
Or as per customer's requested cutting or sawing.
3.Delivery condition:
Hot rolled or forged ,black surface or milled surface,pre-hardened to 30-36.HRC or annealed ≤ 229HB. EAF or ESR.

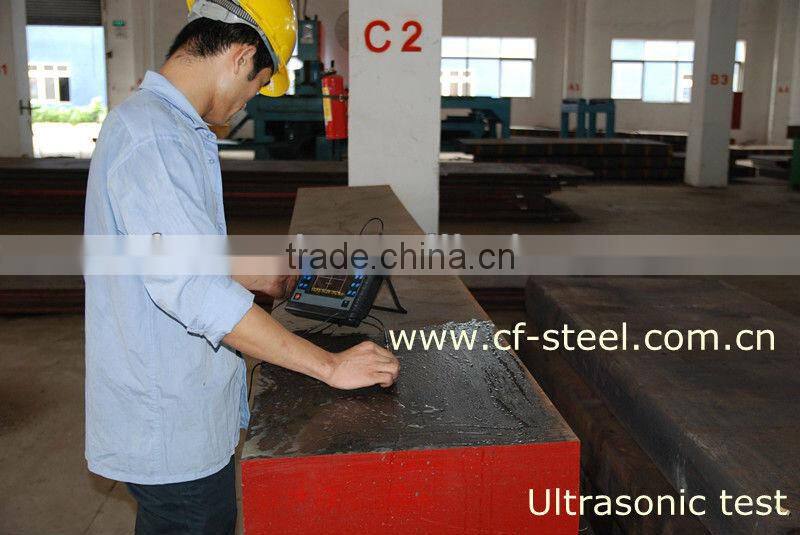

100% UT test
4.Chemical composition:
C% |
Mn% |
Si% |
Cr% |
Mo% |
P% |
S% |
Ni% |
0.3-0.4 |
0.3-0.6 |
0.3-0.6 |
13-15 |
0.5-0.7 |
≤0.03 |
≤0.03 |
0.3-0.55 |
5.Applications :
Mould steel use for Injection die, extrusion die, blowing die etc. Application to hot-plastic forming have good nitridting performance; Nitriding treatment can significantly the die performance; They also are often used in important mechanical parts.
6.Characteristics
Smelted by using vacuum degassing method, so that the steel quality is more purified.
Has superior mirror polishing property.
Good etching workability and EDM spark workability.
Delivered in pre-hardened state; Allowable for direct mold cutting without further heat treatment.
Distress annealing and surface nitriding treatment, with very slight change in size and hardness
More information please refer to our Web:
Send Inquiry to This Supplier
