3D Measuring System
Technical Parameters:
Model | SOV-4030 | SOV-3020 | SOV-2010 | |
Dimensions, WxHxD (mm) | 860x650x1120 | 700x500x900 | 570x370x790 | |
Zoom Multiple (17 inch screen) | 20x-120x, 30x-225x | |||
CCD | Color, 1/3 inch, 8000000 PX | |||
X*Y*Z Stroke (mm) | 400x300x150 | 300x20x150 | 200x100x100 | |
Bench Dimensions(mm) | 600x450 | 500x350 | 350x270 | |
Load of Bench(Kg) | 30 | 25 | 30 | |
Optional Configuration | UK Probe | |||
Weight (Kg) | 350 | 180 | 100 | |
Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage & output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
Application:
3D Video measuring system is designed to do three dimensional work piece on the slope, round ,ditch,columns , ball, dimension,bland holes as well as the geometricalterms such as the distance between the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances, connector, machine fittings, precisionfixture, plastic, hardware, circumjacentfields of computer and so on and other industries.
For more detaile innformation about this 3D video measuring system, you are welcomed to contact us!

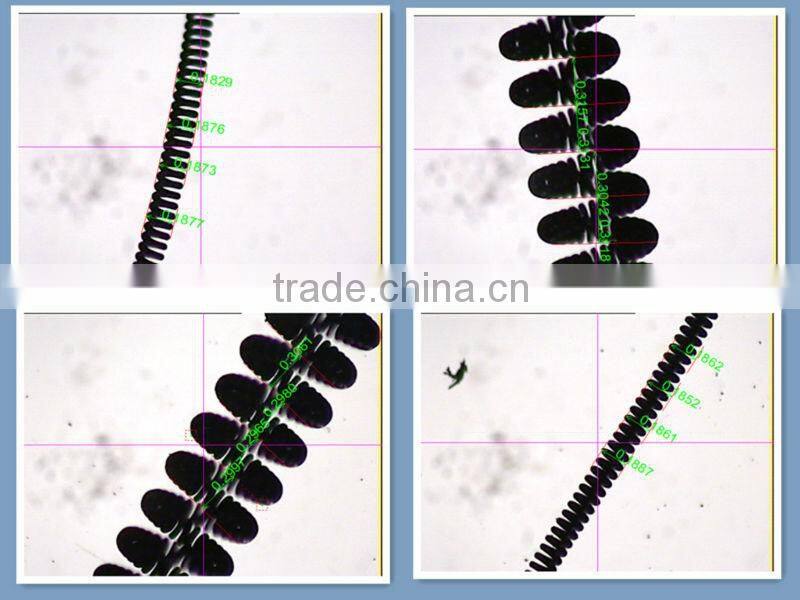

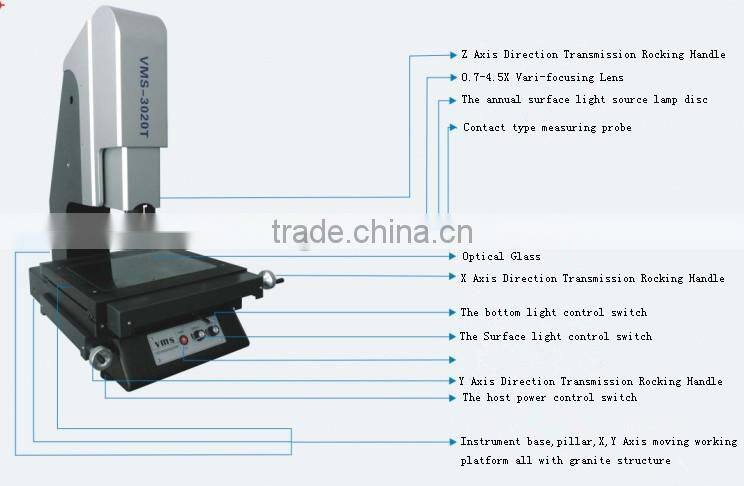

3D Measuring System Pictures:
