Help CenterSOV-3020 Manual Type Coordination Measuring Machine
Related Products
SOV-3020 Manual type Coordination Measuring Machine
SOV-3020 Manual type Coordination Measuring Machine Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions (mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench (Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
SOV-3020 Manual type Coordination Measuring Machine Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage & output the graphics.
2. Optional print machine, different measurement and scanning system are available.
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function.
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
SOV-3020 Manual type Coordination Measuring Machine Application:
Manual type Coordination Measuring Machine is designed to do three dimensional work piece on the slope, round , ditch , columns ,ball , dimension , bland holes as well as the geometricaltermssuch as the distance between the elements and angles. And it is widely used in mechinery , electronics , mobile fittings , home appliances , connector, machine fittings , precision fixture , plastic , hardware, circumjacentfields of computer and so on and other industries.

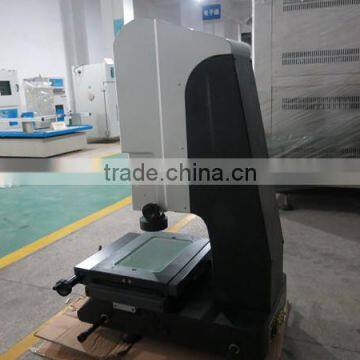

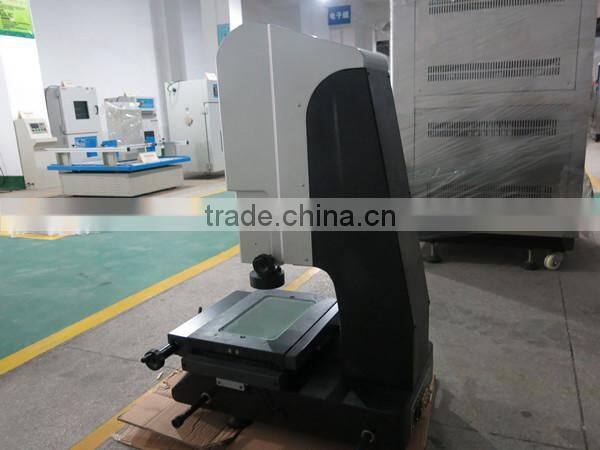

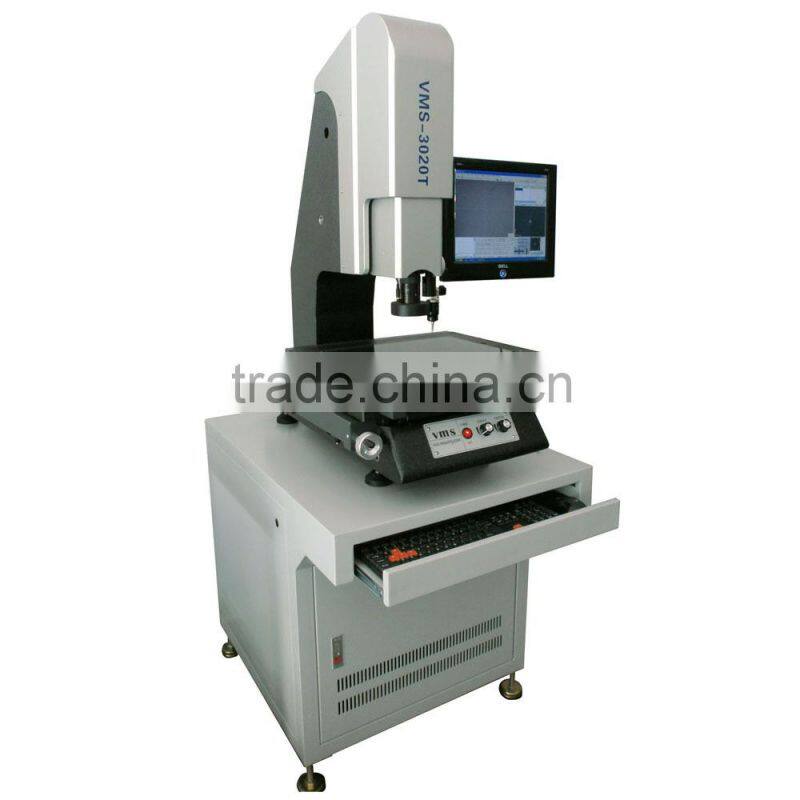

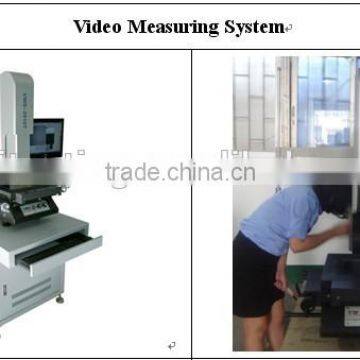

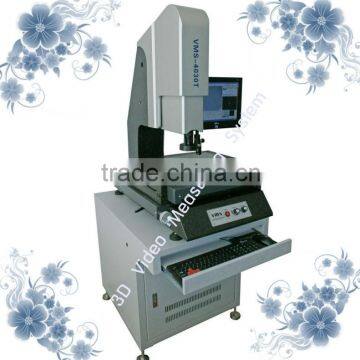

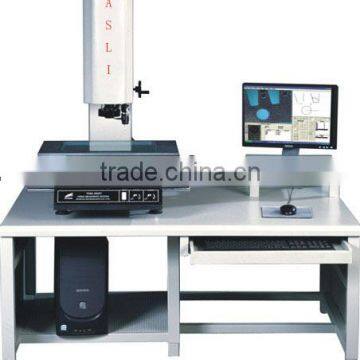

Below Pictures of SOV-3020 Manual type Coordination Measuring Machine for your reference:
