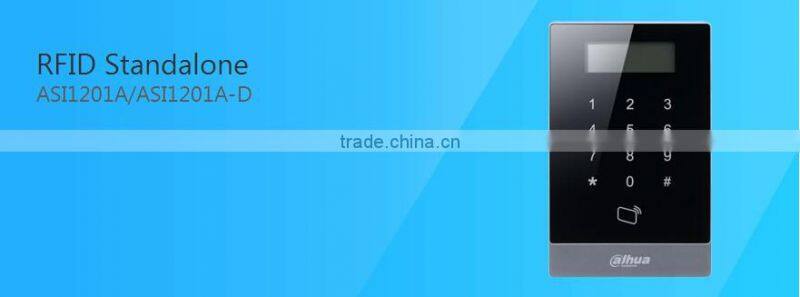

Dahua RFID Standalone ASI1201A/ASI1201A-D Access control System
Features:
>Touch keyboard and LCD display
>Support 30,000 valid cards & 150,000 records
>Support multiple cards(default IC card) (“-D” means ID EM card)
>Support card, password and combination
>TCP/IP or RS-485 interface to PC
>Wiegand or RS-485 interface to readers
>Door time out alarm, intrusion alarm, duress alarm and tamper alarm
>Anti-pass back, multi-card open
>Support 128 efficient time and holiday schedules
>Watch dog function ensure device free from halting
>Surface mounted installation
Specification:
| Model | ASI1201A/ASI1201A-D |
| System | |
| Main Processor | 32 Bit |
| Memory | 16M |
| Input/Output Ports | |
| Input | Door sensor x 1, Exit button x 1, Alarm input x 2 |
| Output | Relay x 3 (Door lock, Bell, Alarm) |
| Reader | Reader x 1 |
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
| Read Range | 3-8cm (max.) |
| Capacity | |
| Cardholders/Events | 30,000/150,000 |
| Function | |
| ID Setting | Using friendly CMS or command by keypad |
| User Management | General, VIP, Guest, Patrol, Black list, Force |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Schedule Setting | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| Interface | |
| To PC | RJ45(10/100M)/RS485 |
| To Reader | Wiegand/ RS485 |
| General | |
| RTC | Yes |
| Beep Tone | Buzzer |
| LCD Display | Sensitive touch keypad with blue backlight |
| Ingress protection | IP55 |
| Power Supply | 9-15DC/130mA |
| Working Environment | -30℃-+60℃ |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 150mm*96mm *16mm |
| Weight | 0.35Kg |
