CNC Video Image Test Machine

CNC Video Image Test Machine thumbnail-1
CNC Video Image Test Machine photo-1
US$ 4,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Asli
Model Number:
SOV
Contact Supplier Request Quote Chat Now
Dongguan ASLi Test Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Asli
Model Number SOV
Power Electronic
Usage Auto Testing Machine

CNC Video Image Test Machine Technical Parameters:



Model

SOV-4030

SOV-3020

SOV-2010

Dimensions, WxHxD (mm)

860x650x1120

700x500x900

570x370x790

Zoom Multiple (17  inch screen)

20x-120x, 30x-225x

CCD

Color, 1/3 inch, 8000000 PX

X*Y*Z  Stroke (mm)

400x300x150

300x20x150

200x100x100

Bench Dimensions(mm)

600x450

500x350

350x270

Load of Bench(Kg)

30

25

30

Optional Configuration

UK Probe

Weight (Kg)

350

180

100



CNC Video Image Test Machine Features:

1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &

output the graphics.

2. Optional print machine, different measurement and scanning system are available .

3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning

 function

4. Flexible harmonious translation of X,Y,Z  axils make the measurement more convenient and efficient.



CNC Video Image Test Machine Application:

CNC video image test machine is designed to do three dimensional work piece on the slope, round ,ditch,

columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between the

elements and angles. And it is widely used in mechinery,electronics, mobile  fittings,home appliances,

connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so

on and other industries.

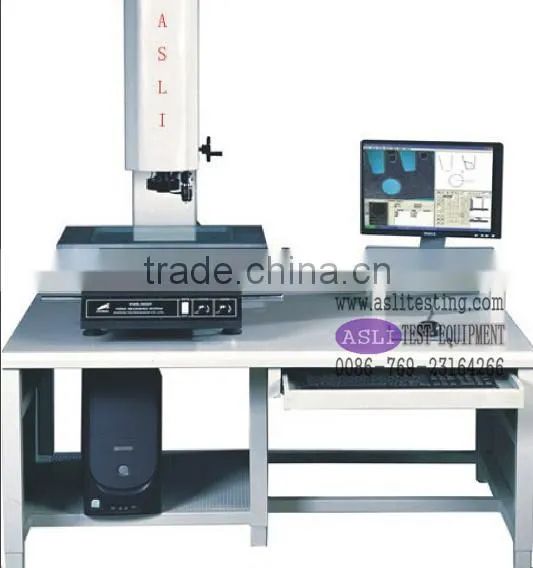

Below Pictures of  CNC video image test machine  for your reference:

CNC Video Image Test MachineCNC Video Image Test Machine



...
