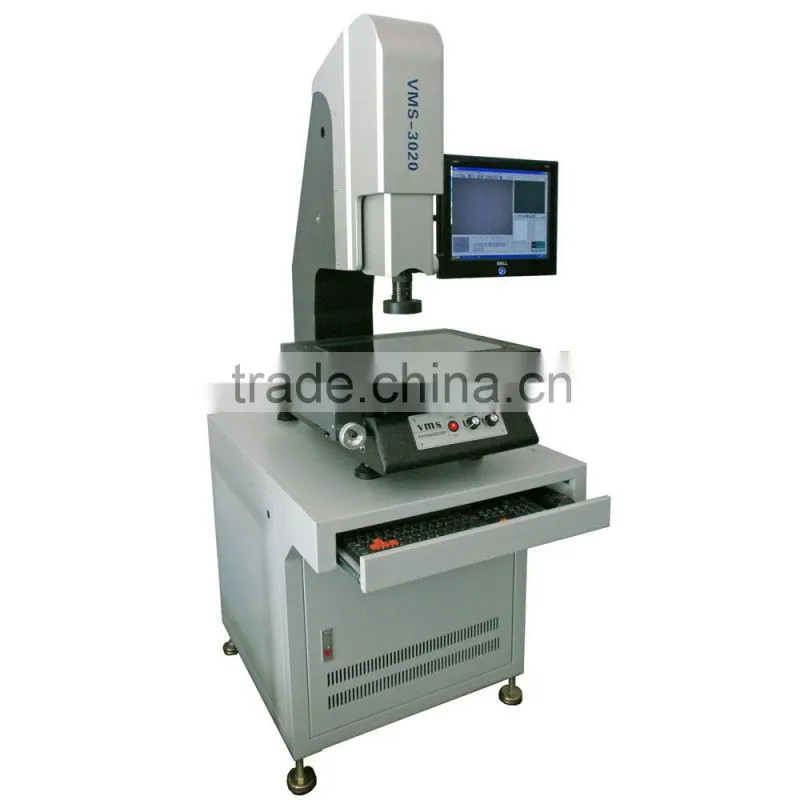

2D optical Measuring System application:
2D Video Measuring System is widely used to measure the two coordinates in all application areas such as machinery, electronics, instruments, plastics, etc.
2D optical Measuring System features:
1. With RS-232 interface, can be connected with computer, adopt specialized measuring software 2D can manage and output the graphics.
2.Optional print machine, different measurement and scanning system are available

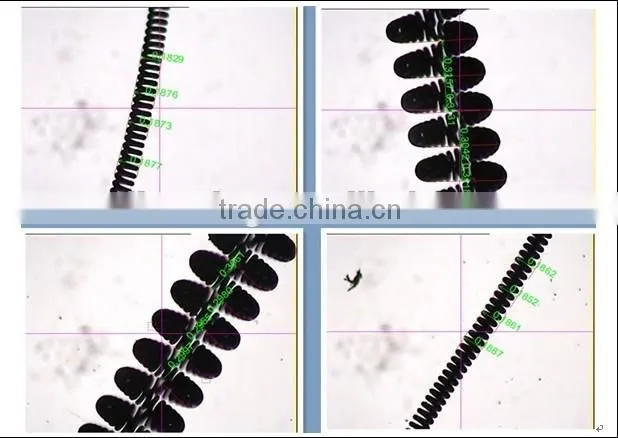

3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function
4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
5.The measuring data can be directly output into Word, Excel & Auto CAD
2D optical Measuring System technical parameters:
Model |
VMS-1510 |
VMS-2010 |
VMS-2515 |
VMS-320 |
VMS-4030 |
||||||
|
Work Table |
Metal Table Size (mm) |
354x228 |
404x228 |
450x280 |
500x330 |
606x466 |
|||||
|
Glass Table Size (mm) |
210x160 |
260x160 |
306x196 |
350x280 |
450x350 |
||||||
|
Moving Stroke (mm) |
150x100 |
200x100 |
250x150 |
300x200 |
400x300 |
||||||
Weight (Kg) |
100 |
110 |
120 |
140 |
240 |
||||||
Dimension WxHxD (mm) |
540x850x560 |
760x900x600 |
970x940x670 |
||||||||
|
Image System |
Color 1/3’'CCD Video Camera Zoom Lenses: 0.7~4.5× |
||||||||||
Magnification of Video : 40~255× | |||||||||||
|
Object Field: 7-1.1mm, LED surface lamp plate and LED incident illuminant, light intensity adjustable | |||||||||||
2D optical Measuring System :
