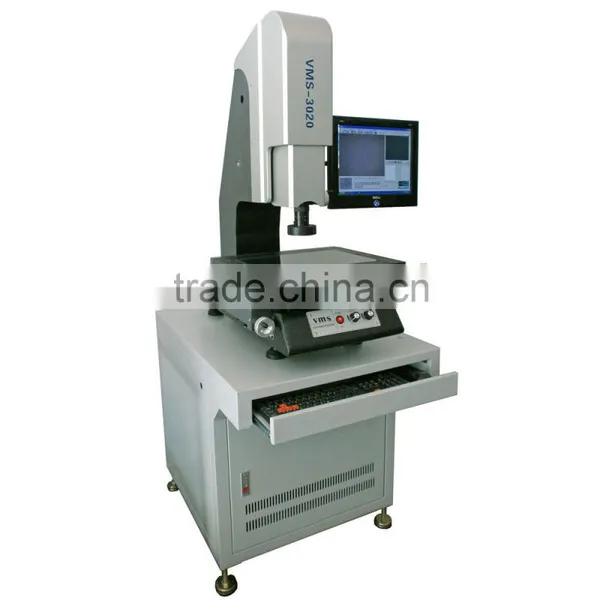

High Quality 2D Optical Measuring System

Name: High Quality 2D Optical Measuring System
Brand: ASLi
SKU: 110180481
Availability: InStock

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASLi

Model Number:

VMS-1510

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASLi

Model Number VMS-1510

2D optical Measuring System

1. Application:

2D Video Measuring System is widely used to measure the two coordinates in all application areas such as

machinery, electronics, instruments, plastics, etc.

2. Features:

1. With RS-232 interface, can be connected with computer, adopt specialized measuring software 2D can manage and output the graphics.

2.Optional print machine, different measurement and scanning system are available

3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning function .

4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.

5.The measuring data can be directly output into Word, Excel & Auto CAD.

3. Technical parameters:

	Model		VMS-1510		VMS-2010	VMS-2515		VMS-320	VMS-4030
Work Table	Metal Table Size (mm)		354x228		404x228	450x280		500x330	606x466
	Glass Table Size (mm)		210x160		260x160	306x196		350x280	450x350
	Moving Stroke (mm)		150x100		200x100	250x150		300x200	400x300
	Weight (Kg)		100		110	120		140	240
Dimension WxHxD (mm)				540x850x560			760x900x600			970x940x670
Image System		Color 1/3’'CCD Video Camera Zoom Lenses: 0.7~4.5×
		Magnification of Video : 40~255×
		Object Field: 7-1.1mm, LED surface lamp plate and LED incident illuminant, light intensity adjustable
