Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Dahua | Model Number: | NVR7416/7432/7464-16P |
| Type: | IP Camera | Style: | Other, nvr | Sensor: | Other, Embedded processor |
| Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Dahua nvr 16ch digital full hd nvr 7432nvr 16ch poe ONVIF CCTV P2P NVR dahua NVR
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

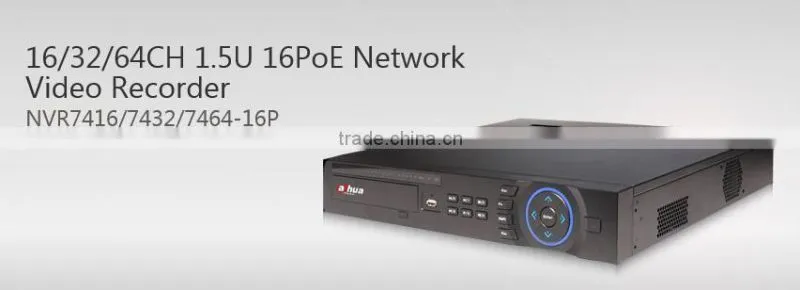

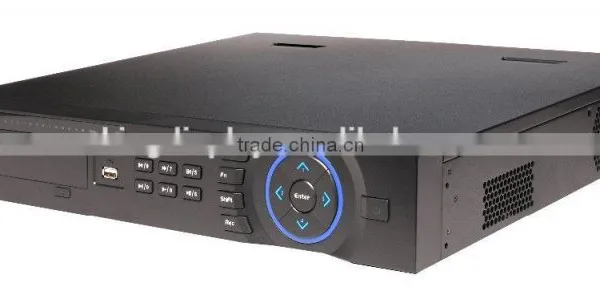

NVR7416/7432/7464-16P
Features:
>Up to 16/32/64 channel IP camera input
> H.264/MJPEG dual codec decoding
> Max 256Mbps incoming bandwidth
> HDMI/VGA/TV simultaneous video output
> 16/32 channel synchronous realtime preview, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
> ONVIF Version 2.3 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 4 SATA HDDs up to 16TB, 1 eSATA port, 3 USB2.0
> Support IPC UPnP, 16 PoE ports
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications:
| Model | DH-NVR7416-16P | DH-NVR7432-16P | DH-NVR7464-16P | ||
| System | |||||
| Main Processor | Dual-core embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video & Audio | |||||
| IP Camera Input | 16 channel | 32 channel | 64 channel | ||
| Two-way Talk | 1 channel Input, 1 channel Output, BNC | ||||
| Display | |||||
| Interface | 1 HDMI, 1 VGA, 1 TV | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 & etc. | ||||
| Display Split | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Compression | H.264/MJPEG | ||||
| Resolution | 5Mp(2560× 1920)/3Mp(2048× 1536)/1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480) & etc. | ||||
| Record Rate | 192Mbps | ||||
| Bit Rate | 48~ 8192kbps | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 16 channel | 16 channel | 16 channel | ||
| Relay Output | 6 channel | 6 channel | 6 channel | ||
| Playback & Backup | |||||
| Sync Playback | 1/4/8/16 | 1/4/8/16 | 1/4/8/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | ||||
| Network | |||||
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) | ||||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Storage | |||||
| Internal HDD | 4 SATA ports (4HDDs or 2HDDs+1CD/DVD-RW), up to 16TB | ||||
| External HDD | 1 eSATA port | ||||
| Auxiliary Interface | |||||
| USB | 3 ports (2 Rear), USB2.0 | ||||
| RS232 | 1 port, For PC communication & Keyboard | ||||
| RS485 | 1 port, For PTZ control | ||||
| General | |||||
| Power Supply | AC 100~240V, 50/60 Hz | ||||
| Power Consumption | NVR: 40W (without HDD) PoE: Max 15W (each) | ||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | ||||
| Dimension (W×D×H) | 1.5U, 440mm×413mm×75mm | ||||
| Weight | 5kg (without HDD) | ||||

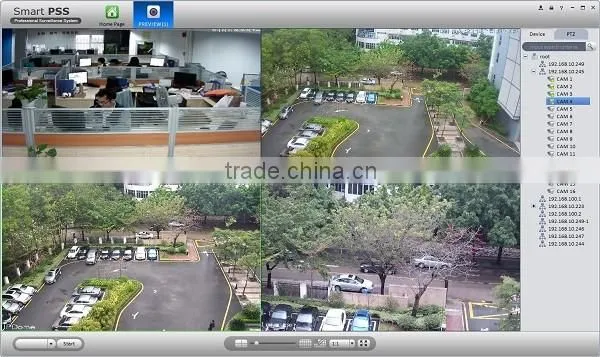

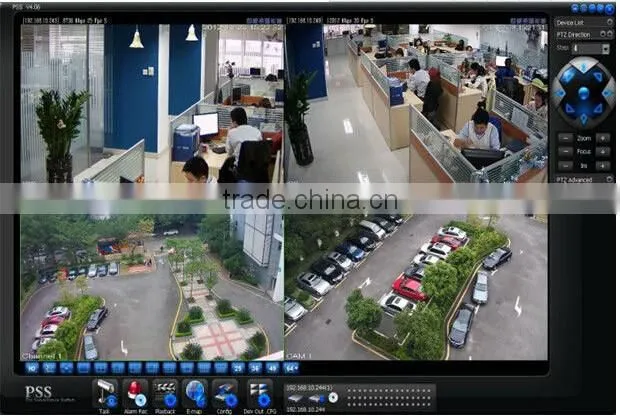

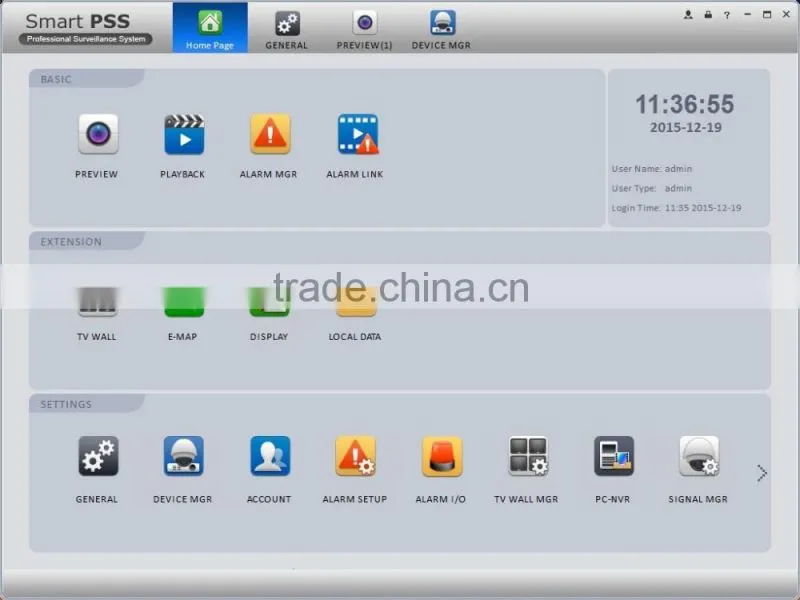

Software:

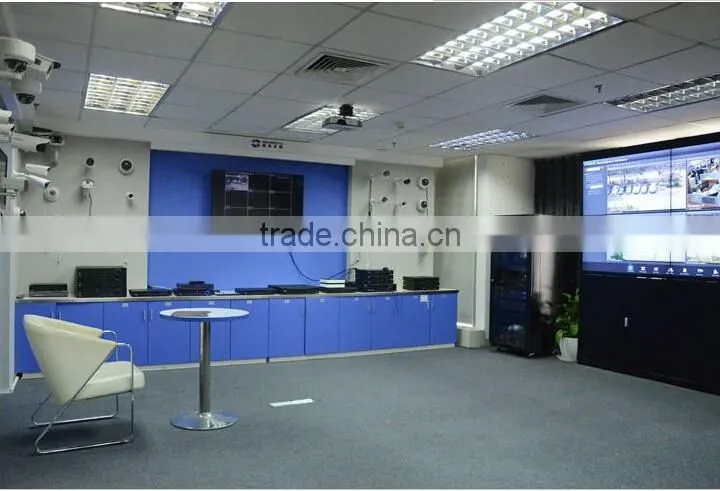

Showroom:
Welcome to visit our company

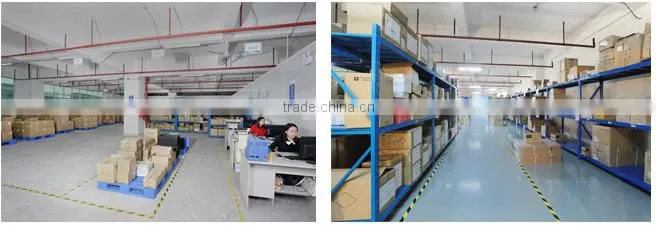

1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

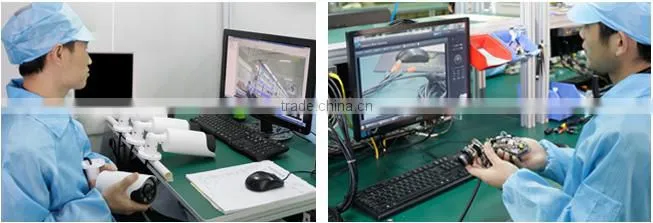

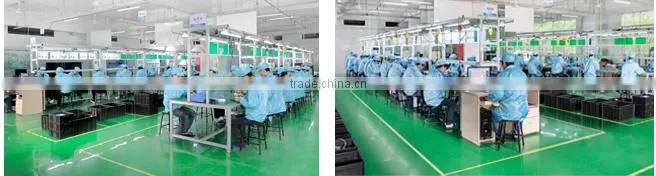

B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

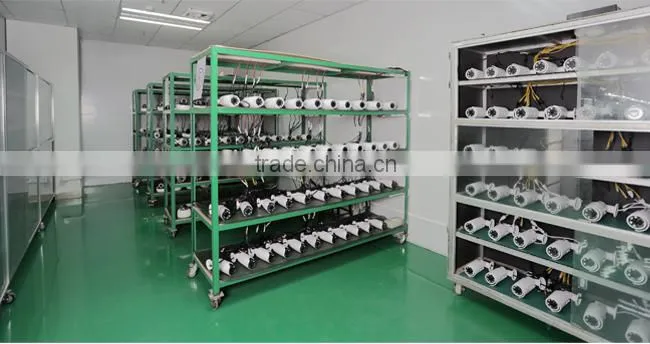

C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
