Help Center1000kgf Large Force Electrodynamic Vibration Shaker System
Related Products
-
Chamber Combined Vibration and TemperatureUS$ 50,000 - 250,000MOQ: 1 Set -
Air Cooled Electro Dynamic Vibration Shaker Test SystemUS$ 15,000 - 25,000MOQ: 1 Set
-
High Quality Temperature & Vibration Combined Environmental Test ChamberUS$ 50,000 - 250,000MOQ: 1 Set
-
Environmental Combined Vibration Test SystemUS$ 50,000 - 250,000MOQ: 1 Set
-
Environmental Combined Vibration Test MachineUS$ 50,000 - 250,000MOQ: 1 Set
Aerospace and defence vibration testing feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low
3. Rocker Rod roller bearings straight and oriented composite body stiffness orientation
4. Trunnion isolation foundation dedicated to hormone use
5. Advanced technology to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon
Aerospace and defence vibration testing technical parameter:
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) |
Rated Speed(m/s) |
Rated Displacement (p-p)mm |
Max. Loading (Kg) |
moving coil(Kg) |
Dimension of Moving coil(mm) |
ES-1 |
1000 |
1000 |
3-3500 |
400 |
1.2 |
25 |
70 |
2.5 |
Φ150 |
ES-2 |
2000 |
2000 |
3-3500 |
800 |
1.6 |
25 |
70 |
2.5 |
Φ150 |
ES-2a |
2000 |
2000 |
3-3500 |
300 |
1.6 |
40 |
70 |
8 |
Φ230 |
ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
..... | |||||||||
ES-200 |
200000 |
200000 |
3-2000 |
1000 |
1.8 |
51 |
2500 |
200 |
Φ650 |
ES-350 |
350000 |
350000 |
3-1700 |
1000 |
1.8 |
51 |
4500 |
300 |
Φ870 |
Aerospace and defence vibration testing horizontal platforms:
Model |
Bench Size (mm) |
Frequency Range (Hz) |
Weight of Moving Parts (kg) |
LT0303 |
300×300×22 |
5-1000 |
6.6 |
.... | |||
LT 1212 |
1200× 1200×30 |
5-800 |
126 |

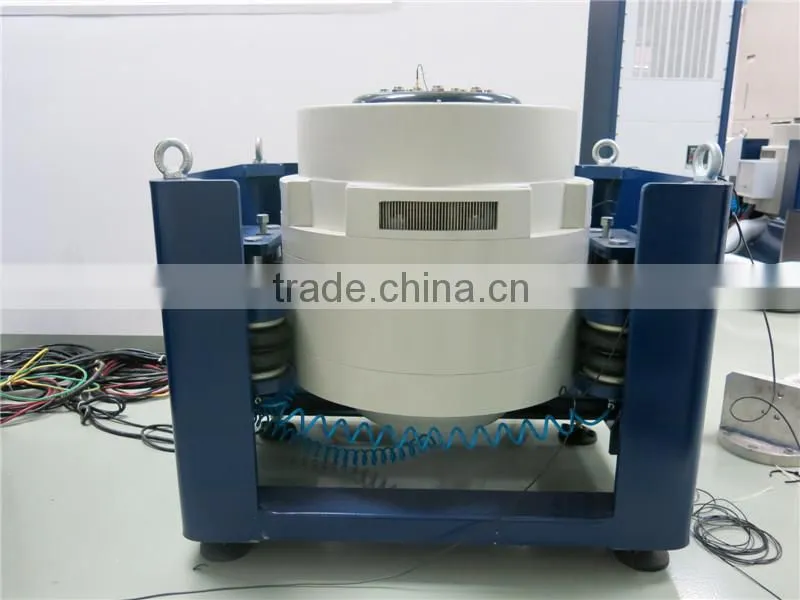

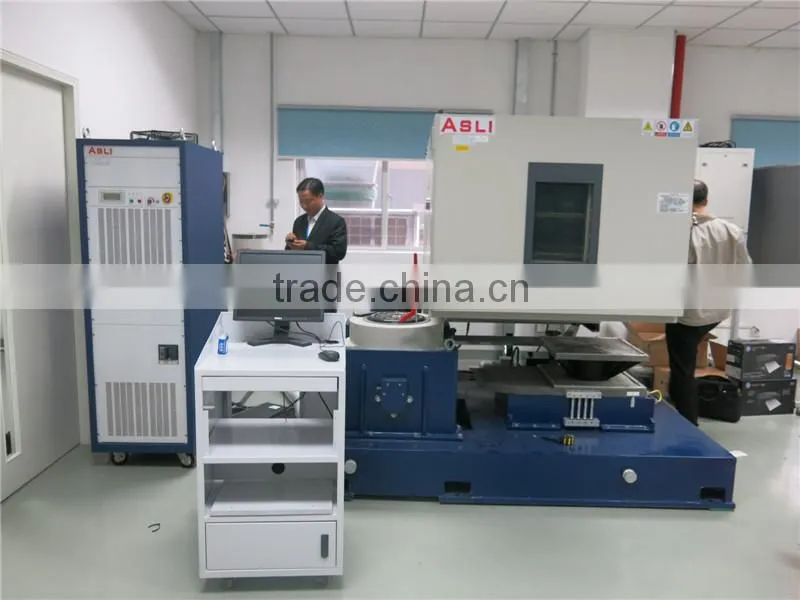

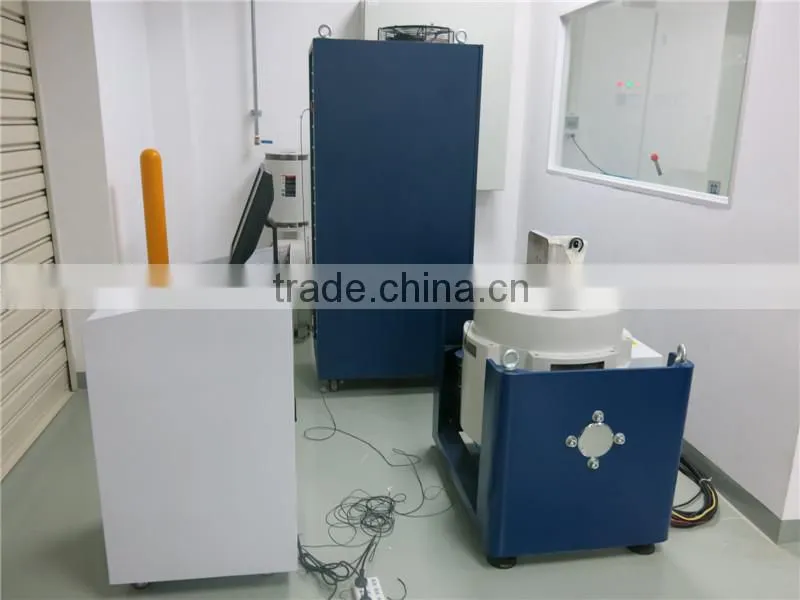

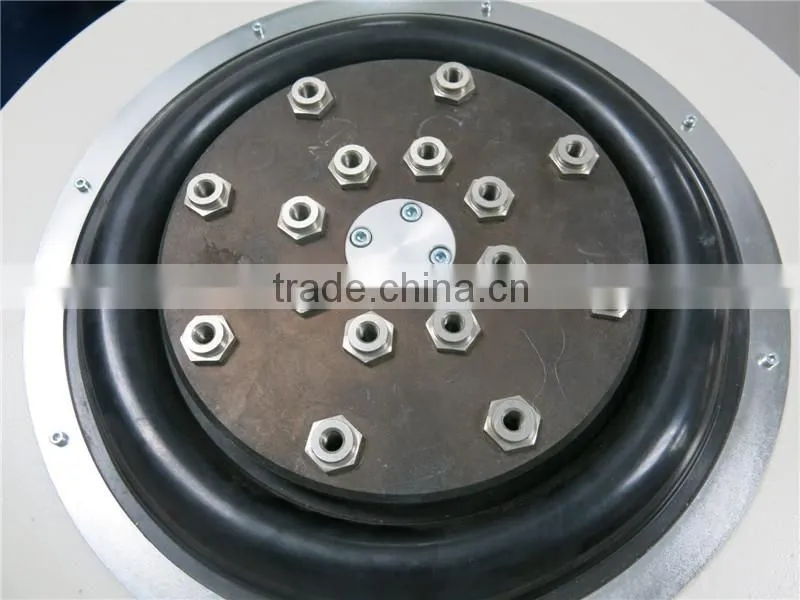

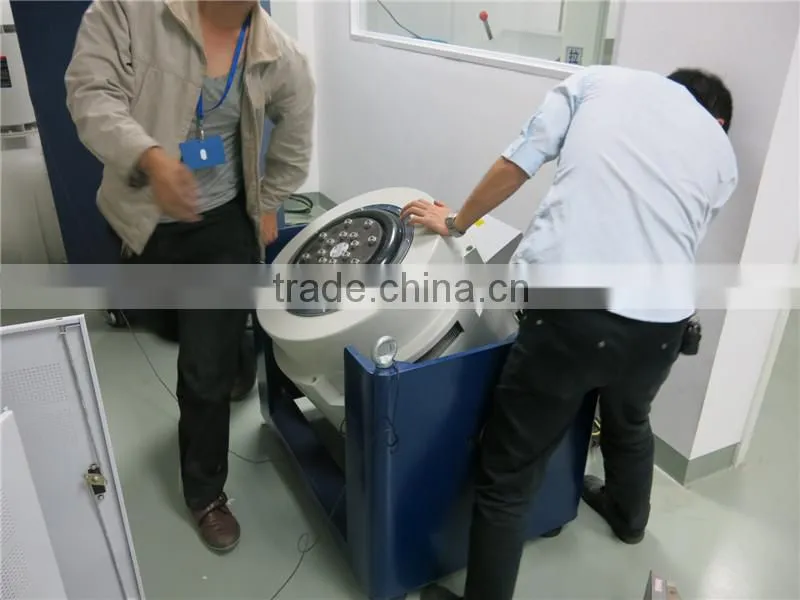

Aerospace and defence vibration testing pictures:
