Dahua 1080P NVR Network Video Recorder for IP camera recording
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~

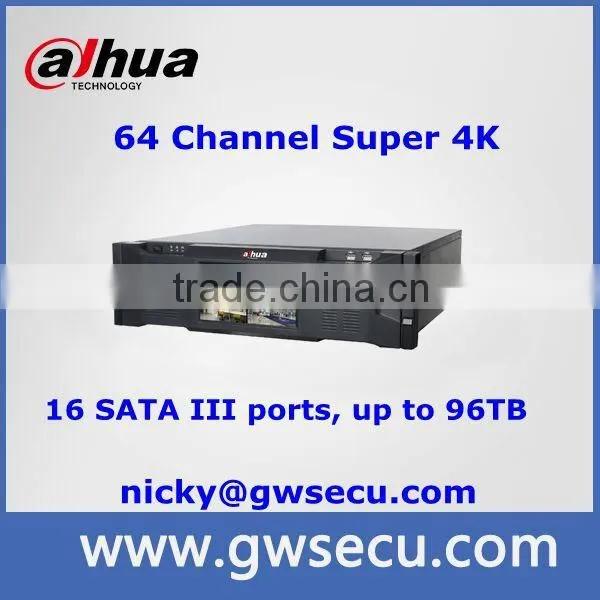

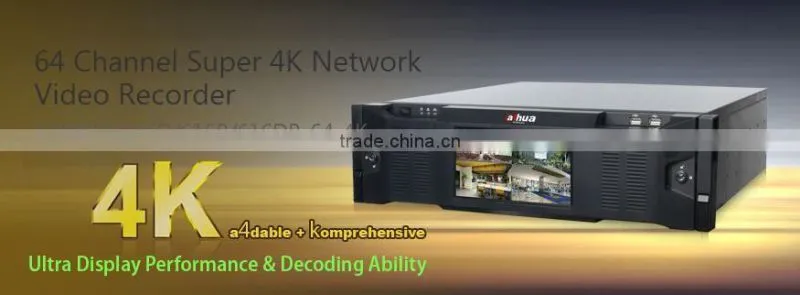

NVR616/616D/616R/616DR-64-4K
Features:
> Max 384Mbps incoming bandwidth
> Up to 12Mp resolution preview& playback
> 1 VGA+2 HDMI
> Support 16 hot-swap HDDs
> Support RAID 0/1/5/6/10/50/60
> Support N+M hot standby
> Support iSCSI & Mini SAS to expand storage space
> Compatible with Dahua SDK and seamless integrated to other platforms
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> Redundant power supply module adopted (DH-NVR616R-64 &DH-NVR616DR-64)
> Front LCD display (DH-NVR616D-64 & DH-NVR616DR-64)
Specifications:
| Model | DH-NVR616-64-4K | DH-NVR616D-64-4K | DH-NVR616R-64-4K | DH-NVR616DR-64-4K |
| System | ||||
| Main Processor | Intel Processors | |||
| Operating System | LINUX | |||
| Video & Audio | ||||
| IP Camera Input | 64 channel | |||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |||
| Display | ||||
| Interface | 2 HDMI (up to 3840x2160), 1 VGA | |||
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |||
| Multi-screen Display | The 1st screen: 1/4/8/9/16/25/36 | |||
| The 2nd screen: 1/4/8/9/16 | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Compression | H.264/MJPEG | |||
| Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. | |||
| Record Rate | 256Mbps | |||
| Bit Rate | 1~ 20Mbps | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection & Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 16ch, low level effective, green terminal interface | |||
| Relay Output | 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface | |||
| Playback & Backup | ||||
| Playback | 128Mbps in Raid 5 mode 64Mbps in single HDD mode |
|||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) | |||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | |||
| Network | ||||
| Interface | 4 RJ-45 ports (10/100/1000Mbps) | |||
| Ethernet Port | 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports | |||
| Optical Fiber Interface | 2 Giga Optical fiber interface | |||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Storage | ||||
| Internal HDD | 16 SATA III ports, up to 96TB | |||
| HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare) | |||
| Auxiliary Interface | ||||
| Front cover | Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR) | |||
| USB | 4 USB ports(3 USB2.0, 1 USB3.0) | |||
| eSATA | 1 eSATA port | |||
| SAS | 1 Mini SAS port | |||
| RS232 | 1 port, For PC communication& keyboard | |||
| RS485 | 1 port, For PTZ control | |||
| General | ||||
| Power Supply | AC100V~240V, 50~60Hz | AC100V~240V, 50~60Hz , Redundant | ||
| Power Consumption | <51W (Without HDD) | |||
| Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | |||
| Dimension(W×D×H) | 531.9mm ×485mm(with ears)×133.2mm | |||
| Weight | 17.45kg (without HDD) | |||
| Installation | Rack-mounted | |||
Software:
Showroom:
Welcome to visit our company
1. Our Factory detail:
A. Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...
B. Assembling
we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.
C. Aging Products
24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.
D. OEM&ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
E. Quality Test
Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.
3. Exhibitions:
We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …
FAQ:
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, West union etc
2. Shipment
(1)How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
(2)What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
(3)What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
3. Our Services
Warranty: We cover 2 Year warranty for all our products since shipment day.
For all your inquiries about our products, we will reply you in detail within 24 hours.
