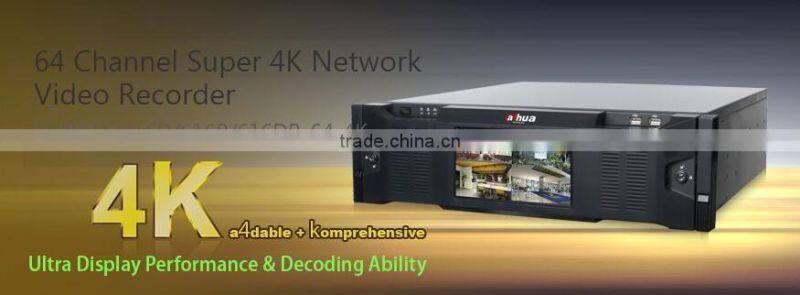

Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60

Shenzhen Guowei Security Electronic Co., Ltd.
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 thumbnail-1
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 thumbnail-2
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 thumbnail-3
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 thumbnail-4
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 photo-1
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 photo-2
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 photo-3
Dahua 64 Channel NVR Super NVR With Front LCD Display Support RAID0/1/5/6/10/50/60 photo-4
US$ 1 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
NVR616/616D/616R/616DR-64-4K
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dahua
Model Number NVR616/616D/616R/616DR-64-4K
Type IP Camera
Style Other, nvr
Sensor Other, Embedded processor
Technology Infrared
Special Features Waterproof / Weatherproof

Dahua 64 Channel NVR Super NVR with Front LCD Display Support RAID0/1/5/6/10/50/60

To Know,To Trust,your reliable security partner!

Skype:nickyzhou688668

Email:nicky(at)

Whatsapp:0086 131 4599 7168

Best service for you~



NVR616/616D/616R/616DR-64-4K

Dahua 64 Channel NVR Super NVR with Front LCD Display Support RAID0/1/5/6/10/50/60

Features:



> Max 64 channel IP cameras connection
> Max 384Mbps incoming bandwidth
> Up to 12Mp resolution preview& playback
> 1 VGA+2 HDMI
> Support 16 hot-swap HDDs
> Support RAID 0/1/5/6/10/50/60
> Support N+M hot standby
> Support iSCSI & Mini SAS to expand storage space
> Compatible with Dahua SDK and seamless integrated to other platforms
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> Redundant power supply module adopted (DH-NVR616R-64 &DH-NVR616DR-64)
> Front LCD display (DH-NVR616D-64 & DH-NVR616DR-64)




 Specifications:



ModelDH-NVR616-64-4KDH-NVR616D-64-4KDH-NVR616R-64-4KDH-NVR616DR-64-4K
System
Main ProcessorIntel Processors
Operating SystemLINUX
Video & Audio
IP Camera Input64 channel
Two-way Talk1channel Input, 1channel Output, RCA
Display
Interface2 HDMI (up to 3840x2160), 1 VGA
Resolution3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen DisplayThe 1st screen: 1/4/8/9/16/25/36
The 2nd screen: 1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
CompressionH.264/MJPEG
Resolution12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate256Mbps
Bit Rate1~ 20Mbps
Record ModeManual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input16ch, low level effective, green terminal interface
Relay Output8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Playback & Backup
Playback128Mbps in Raid 5 mode
64Mbps in single HDD mode
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
Network
Interface4 RJ-45 ports (10/100/1000Mbps)
Ethernet Port4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
Optical Fiber Interface2 Giga Optical fiber interface
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
Storage
Internal HDD16 SATA III ports, up to 96TB
HDD ModeSingle, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
Auxiliary Interface
Front coverSupport hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR)
USB4 USB ports(3 USB2.0, 1 USB3.0)
eSATA1 eSATA port
SAS1 Mini SAS port
RS2321 port, For PC communication& keyboard
RS4851 port, For PTZ control
General
Power SupplyAC100V~240V, 50~60HzAC100V~240V, 50~60Hz , Redundant
Power Consumption<51W (Without HDD)
Working Environment-10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H)531.9mm ×485mm(with ears)×133.2mm
Weight17.45kg (without HDD)
InstallationRack-mounted



 Dahua 64 Channel NVR Super NVR with Front LCD Display Support RAID0/1/5/6/10/50/60

Software:

Showroom:

Welcome to visit our company



1. Our Factory detail:

A. Raw Materials

Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

B. Assembling

we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

C. Aging Products

24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.

D. OEM&ODM

Customer LOGO can be printed on goods/color box/labels upon confirmed.

E. Quality Test

Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.

3. Exhibitions:

We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America,  IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX  in South Africa,  …



 FAQ:



1. Payment


What are the terms of payments you offer?

We accept payment via T/T, Paypal, West union etc

2. Shipment

(1)How long will it takes to deliver goods?

We will deliver your goods within 7-10 working days after an order confirmed

(2)What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

(3)What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.

3. Our Services

Warranty: We cover 2 Year warranty for all our products since shipment day.

For all your inquiries about our products, we will reply you in detail within 24 hours.
