Triaxial Electrodynamic Vibration testing equipment
Triaxial Electrodynamic Vibration testing equipment technical parameters:
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) |
Rated Speed(m/s) |
Rated Displacement (p-p)mm |
Max. Loading (Kg) |
moving coil(Kg) |
|
ES-1 |
1000 |
1000 |
3-3500 |
400 |
1.2 |
25 |
70 |
2.5 |
Φ150 |
ES-2 |
2000 |
2000 |
3-3500 |
800 |
1.6 |
25 |
70 |
2.5 |
Φ150 |
ES-2a |
2000 |
2000 |
3-3500 |
300 |
1.6 |
40 |
70 |
8 |
Φ230 |
ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
..... | |||||||||
ES-160 |
160000 |
160000 |
3-2100 |
1000 |
1.8 |
51 |
1500 |
150 |
Φ600 |
ES-200 |
200000 |
200000 |
3-2000 |
1000 |
1.8 |
51 |
2500 |
200 |
Φ650 |
ES-350 |
350000 |
350000 |
3-1700 |
1000 |
1.8 |
51 |
4500 |
300 |
Φ870 |
Triaxial Electrodynamic Vibration testing equipment technical parameters of horizontal bench:
Model |
Bench Size (mm) |
Frequency Range (Hz) |
Weight of Moving Parts (kg) |
LT0303 |
300×300×22 |
5-1000 |
6.6 |
.... | |||
LT 1212 |
1200× 1200×30 |
5-800 |
126 |
Triaxial Electrodynamic Vibration testing equipment technical parameters of vertical bench:
Model |
Weight (kg) |
Max. Frequency (Hz) |
Bench Size (mm) |
VT300 |
10 |
2000 |
Φ300 |
VT400 |
16 |
2000 |
Φ400 |
.... | |||
VT1212 (Round bench) |
220 |
350 |
Φ1200 |
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Triaxial Electrodynamic Vibration testing equipment is our star products, and we had obtained the CE certification for this machine.

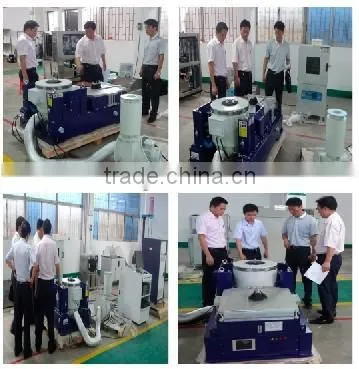

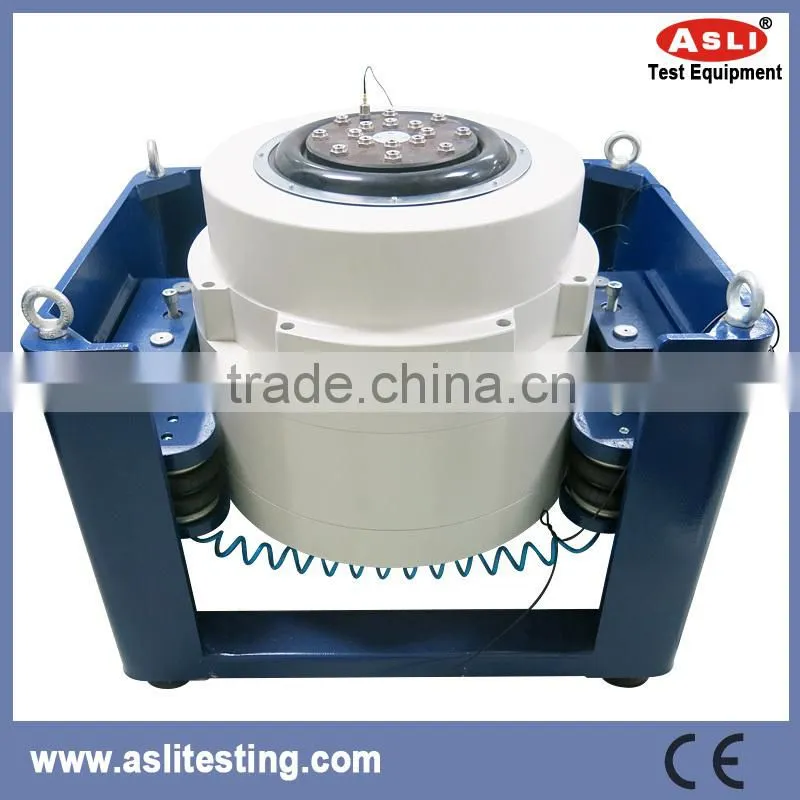

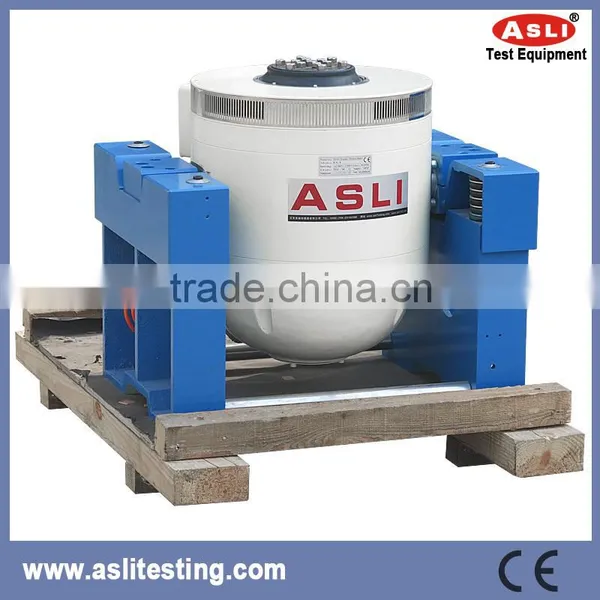

Triaxial Electrodynamic Vibration testing equipment pictures:
